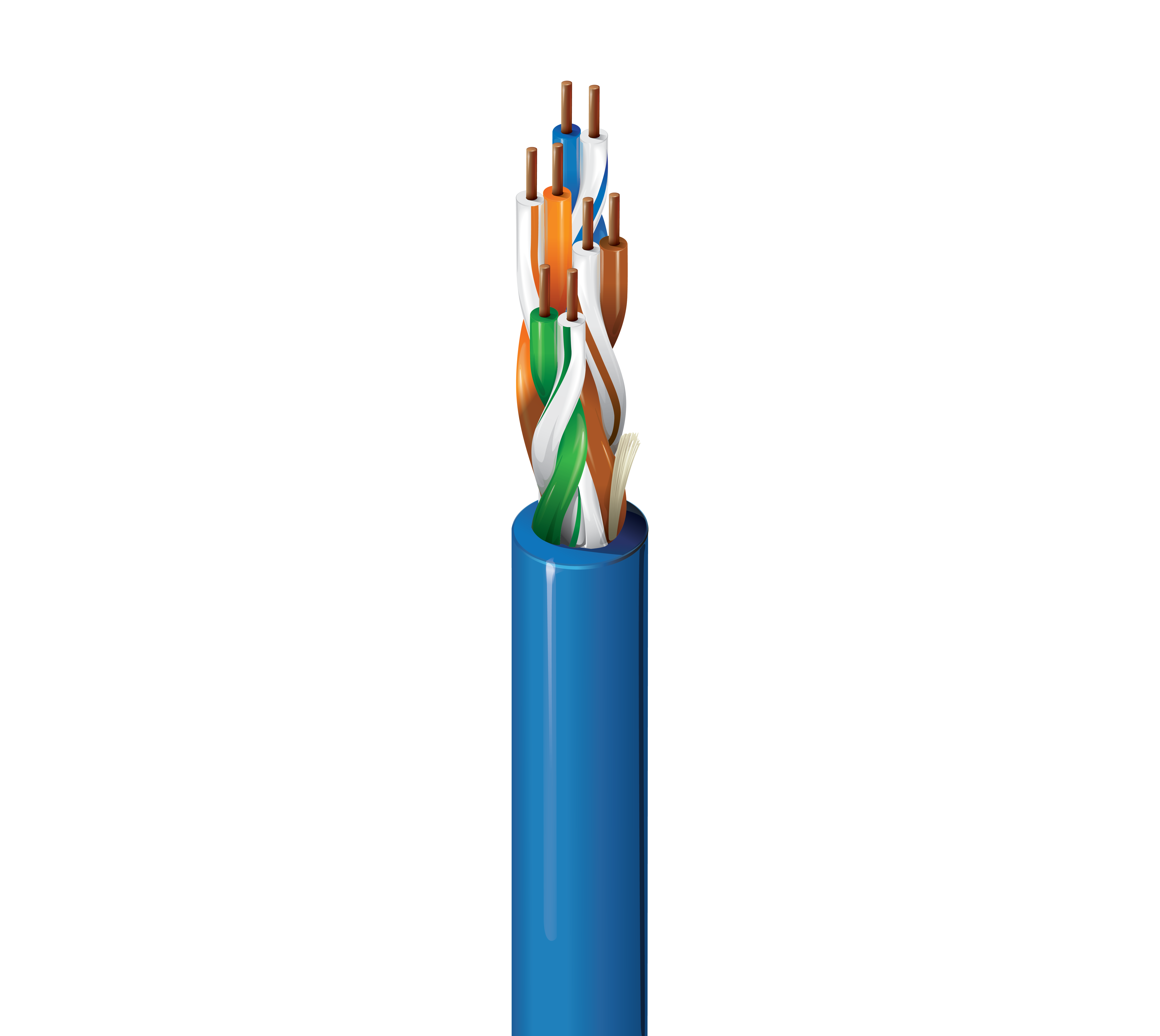

RIPPU

RemoteIP Cable, 4 Pair, U/UTP, CMP

...
RemoteIP Cable, 4 Pair, 22 AWG Solid Bare Copper Conductors, U/UTP - Unshielded, Plenum-CMP, Flamarrest® PVC-LS Jacket
Get Product Alerts
Specifications
Product Overview

Suitable Applications

Premise Horizontal Cable, Ethernet up to 1GBASE-T, Surveillance, PoE++, PoE+, PoE

Construction Details
Conductor
Size Stranding Material Number of Pairs
22 AWG Solid BC - Bare Copper 4
Insulation
Material Color Code
PO+FEP - Polyolefin + Fluorinated Ethylene Propylene White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown
Outer Jacket
Material Nom. Diameter
PVC - Polyvinyl Chloride 0.260 in (6.60 mm)
Electrical Characteristics
Electricals
Max. Conductor DCR Max. Capacitance Unbalance
65 Ohm/km (20 Ohm/1000ft) 330 pF/100m
Delay
Max. Delay Nom. Velocity of Prop.
537.6 ns/100m 70%
Voltage
UL Voltage Rating
300 V (CMP)
Mechanical Characteristics
Temperature
UL Temperature Operating Storage
105°C -20°C To +75°C -20°C To +75°C
Bend Radius
Installation Min.
2.60 in (66.0 mm)

Max. Pull Tension

25 lbs (11 kg)

Bulk Cable Weight

35 lbs/1000ft (52 kg/km)

Standards and Compliance

Environmental Suitability

Plenum, Indoor

Flammability / Reaction to Fire

NFPA 262 Plenum (UL 910), FT6, FT6

CEC / C(UL) Compliance

CMP

IEEE Compliance

IEEE 802.3bt Type 1, Type 2, Type 3, Type 4

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

Product Notes

Notes

Electrical values are expected performance based on cable testing and representative performance within a typical system.

History

Update and Revision

Revision Number: 0.18 Revision Date: 11-09-2022

Part Numbers
Item # Color Putup Type Length
RIPPU D15A1000 Blue Reel-in-Box 1,000 ft
RIPPU 009A1000 White Reel-in-Box 1,000 ft
