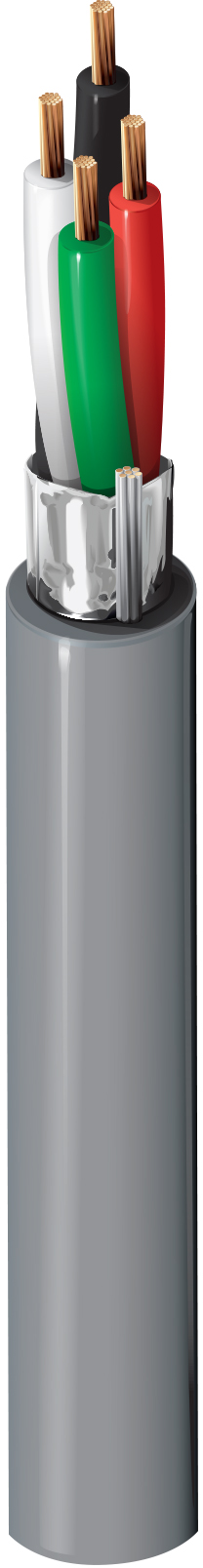

Product Number: 4402FLW
Security & Sound, 4 Conductor 20 AWG BC, LSZH, Shielded, Cca
Security & Commercial Audio Cable, 4-20 AWG stranded bare copper conductors with polypropylene insulation, Beldfoil® shield, LSZH jacket with ripcord, CPR Cca
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Intercom/PA Systems, Sound/Audio Systems |
|---|
Physical Characteristics (Overall)
Conductor
| AWG | Stranding | Material | Nominal Diameter | No. of Conductors |
|---|---|---|---|---|
| 20 | 7x28 | BC - Bare Copper | 0.96 | 4 |
|
Conductor Count |
4 |
|---|
Insulation
| Material | Nominal Diameter | Diameter +/- Tolerance | Nominal Wall Thickness |
|---|---|---|---|
| LSZH - Low Smoke Zero Halogen (Flame Retardant) | 1.60 mm | 0.05 mm | 0.2 mm |
Color Chart
| Number | Color |
|---|---|
| Wire 1 | Black |
| Wire 2 | Red |
| Wire 3 | White |
| Wire 4 | Green |
Outer Shield
| Type | Material | Material Trade Name | Coverage [%] | Drainwire Material | Drainwire AWG |
|---|---|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | Beldfoil® | 100% | TC - Tinned Copper | AWG24/7 |
Outer Jacket
| Material | Nominal Diameter | Nominal Wall Thickness | Ripcord |
|---|---|---|---|
| LSZH - Low Smoke Zero Halogen (Flame Retardant) | 6.5 mm | 1.2 mm | Yes |
|
Table Notes |
Ripcord provided under sheath |
|---|
Construction and Dimensions
Cabling
| Description |
|---|
| 4 wires twisted |
Electrical Characteristics
Conductor DCR
| Nominal Conductor DCR | Nominal Outer Shield DCR |
|---|---|
| 34 Ohm/km | 37 Ohm/km |
Capacitance
| Nom. Capacitance Conductor to Conductor | Nom. Capacitance Conductor to Other Conductor to Shield |
|---|---|
| 140 pF/m | 200 pF/m |
Current
| Max. Recommended Current [A] |
|---|
| 3 A |
Voltage
| Voltage Rating [V] |
|---|
| 300 V |
Temperature Range
|
Installation Temperature Range |
-20°C To +70°C |
|---|---|
|
Storage Temperature Range |
-30°C To +70°C |
|
Operating Temperature Range |
-20°C To +70°C |
Mechanical Characteristics
|
Max. Pull Tension |
90 N |
|---|---|
|
Min. Bend Radius During Installation |
65 mm |
|
Min Setting Radius |
32 mm |
Standards
|
CPR Euroclass |
Cca-s1,d1,a1 |
|---|
Applicable Environmental and Other Programs
|
Environmental Space |
Indoor - Euroclass Cca |
|---|
Flammability, LS0H, Toxicity Testing
|
IEC Flammability |
IEC 60332-1-2 |
|---|---|
|
IEC 60754-1 - Halogen Amount |
Zero |
|
IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity |
2.5 µS/mm |
|
IEC 60754-2 - Halogen Acid Gas Amount - Min. pH |
4.3 |
|
IEC 61034-2 - Smoke Density Min. Transmittance |
60% |
History
|
Update and Revision |
Revision Number: 0.11 Revision Date: 06-13-2024 |
|---|
Belden.GenericSpecificationTitle
|
Update and Revision |
Revision Number: 0.11 Revision Date: 06-13-2024 |
|---|
Part Numbers
| Item # |
|---|
| 4402FLW.00500 |
