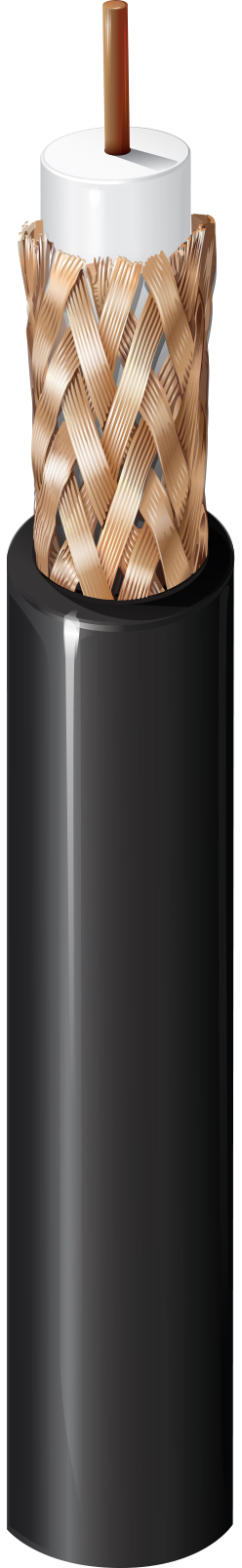

Surveillance CCTV, RG-59 #20 BC, 90% BC Braid, CMG
|
Suitable Applications |
Surveillance, CCTV Camera |
|---|
|
RG Type |
59 |
|---|---|
|
Series Type |
59 |
| Element | No. of Elements | Size | Stranding | Nom. Diameter | Material |
|---|---|---|---|---|---|
| Coax(es) | 1 | 20 AWG | Solid | 0.032 in | BC - Bare Copper |
| Element | Material | Nom. Insulation Diameter | Color Code |
|---|---|---|---|
| Coax(es) | PE - Polyethylene (Foam) | 0.145 in (3.68 mm) | White |
|
Table Notes |
Gas Injected |
|---|
| Outer Shield Type | Material | Coverage |
|---|---|---|
| Braid | Bare Copper (BC) | 90% |
| Material | Nom. Diameter |
|---|---|
| PVC - Polyvinyl Chloride | 0.232 in (5.89 mm) |
|
Overall Cable Diameter (Nominal) |
0.232 in (5.89 mm) |
|---|
| Frequency | Nom. Attenuation | Max. Attenuation |
|---|---|---|
| 1 MHz | 0.3 dB/100ft | 0.75 dB/100ft |
| 5 MHz | 0.65 dB/100ft | 2.15 dB/100ft |
| 10 MHz | 0.9 dB/100ft | |
| 50 MHz | 1.9 dB/100ft | |
| 100 MHz | 2.6 dB/100ft | |
| 200 MHz | 3.6 dB/100ft | |
| 400 MHz | 5 dB/100ft | |
| 700 MHz | 7 dB/100ft | |
| 900 MHz | 8 dB/100ft | |
| 1000 MHz | 8.5 dB/100ft |
| Nom. Conductor DCR | Nom. Outer Shield DCR | Nom. Capacitance Cond-to-Shield | Nom. Characteristic Impedance | Nom. Velocity of Prop. | Max. Delay Skew |
|---|---|---|---|---|---|
| 11.3 Ohm/1000ft | 3.3 Ohm/1000ft (11 Ohm/km) | 16.3 pF/ft (53.5 pF/m) | 75 Ohm | 83% | 83 ns/100m |
| UL Voltage Rating |
|---|
| 300 V |
| UL Temperature | Operating |
|---|---|
| 75°C | -30°C To +75°C |
| Stationary Min. | Installation Min. |
|---|---|
| 2.32 in (58.9 mm) | 2.32 in (58.9 mm) |
|
Max. Pull Tension |
57 lbs (26 kg) |
|---|---|
|
Bulk Cable Weight |
29 lbs/1000ft |
|
Environmental Suitability |
Indoor, Indoor, Aerial - Black only, When supported by messenger wire |
|---|---|
|
Flammability / Reaction to Fire |
UL1685 FT4 loading , FT4, IEEE 1202 Vertical Tray Flame Test, IEC 60332-1-2 |
|
CPR Compliance |
CPR Euroclass: Eca |
|
NEC / UL Compliance |
Article 800, CMG |
|
CEC / C(UL) Compliance |
CMG |
|
European Directive Compliance |
EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
|
UK Regulation Compliance |
UKCA Mark |
|
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
|
Plenum Number |
643948 |
|
Update and Revision |
Revision Number: 0.593 Revision Date: 05-10-2024 |
|---|
| Item # | Color | Putup Type | Length | UPC | Footnote |
|---|---|---|---|---|---|
| 543945 010500 | Black | Reel | 500 ft | 612825162476 | C |
| 543945 010U500 | Black | UnReel | 500 ft | 612825162469 | |
| 543945 0101000 | Black | Reel | 1,000 ft | 612825337089 | C |
| 543945 010U1000 | Black | UnReel | 1,000 ft | 612825162452 | |
| 543945 009500 | White | Reel | 500 ft | 612825162445 | |
| 543945 009U500 | White | UnReel | 500 ft | 612825162421 | |
| 543945 0091000 | White | Reel | 1,000 ft | 612825162438 | C |
| 543945 009U1000 | White | UnReel | 1,000 ft | 612825162414 |
