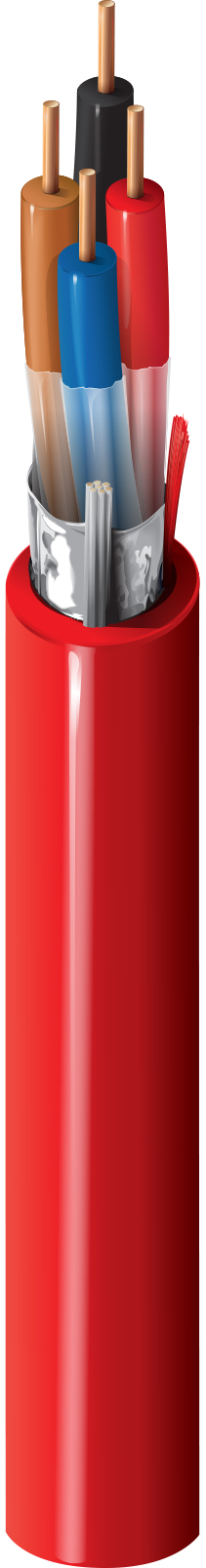

Product Number: 5222FN
Fire Alarm, #16-4c BC, Shielded, NPLF
Fire Alarm Cable, Rated-NPLF, 4-16 AWG solid bare copper conductors with PVC/nylon insulation, overall Beldfoil® shield, PVC jacket with ripcord
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Fire Alarm, Non-Power Limited, Circuits: Audio, Control, Initiating, Notification, Noisy Environment |
|---|
Physical Characteristics (Overall)
Conductor
| AWG | Stranding | Material | No. of Conductors |
|---|---|---|---|
| 16 | Solid | BC - Bare Copper | 4 |
|
Conductor Count |
4 |
|---|
Insulation
| Material | Nominal Wall Thickness |
|---|---|
| PVC/Nylon - Polyvinyl Chloride + Nylon | 0.021 in |
Color Chart
| Number | Color |
|---|---|
| 1 | Black |
| 2 | Red |
| 3 | Brown |
| 4 | Blue |
Outer Shield
| Type | Material | Material Trade Name | Coverage [%] | Drainwire Material | Drainwire AWG | Drainwire Construction n x D |
|---|---|---|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | Beldfoil® | 100% | TC - Tinned Copper | 20 | 7x28 |
Outer Jacket
| Material | Nominal Diameter | Nominal Wall Thickness | Ripcord |
|---|---|---|---|
| PVC - Polyvinyl Chloride | 0.315 in | 0.042 in | Yes |
Construction and Dimensions
Cabling
| Twists |
|---|
| 3 twist/ft |
Electrical Characteristics
Conductor DCR
| Nominal Conductor DCR | Nominal Outer Shield DCR |
|---|---|
| 3.93 Ohm/1000ft | 15.25 Ohm/1000ft |
Capacitance
| Nom. Capacitance Conductor to Conductor | Nom. Capacitance Conductor to Other Conductor to Shield |
|---|---|
| 33 pF/ft | 59.3 pF/ft |
Current
| Max. Recommended Current [A] |
|---|
| 5 Amps per Conductor at 25ºC |
Voltage
| UL Voltage Rating |
|---|
| 150 V RMS |
Temperature Range
|
UL Temp Rating |
75°C |
|---|---|
|
Operating Temperature Range |
-20°C To +75°C |
Mechanical Characteristics
|
Bulk Cable Weight |
69.7 lbs/1000ft |
|---|---|
|
Max. Pull Tension |
138.8 lbs |
|
Min. Bend Radius/Minor Axis |
3.25 in |
Standards
|
NEC Articles |
Article 760 |
|---|---|
|
NEC/(UL) Compliance |
NPLF |
Applicable Environmental and Other Programs
|
EU Directive 2000/53/EC (ELV) |
Yes |
|---|---|
|
EU Directive 2003/96/EC (BFR) |
Yes |
|
EU Directive 2011/65/EU (RoHS 2) |
Yes |
|
EU Directive 2012/19/EU (WEEE) |
Yes |
|
EU Directive Compliance |
EU Directive 2003/11/EC (BFR) |
|
EU CE Mark |
Yes |
|
MII Order #39 (China RoHS) |
Yes |
Suitability
|
Suitability - Indoor |
Yes |
|---|
Flammability, LS0H, Toxicity Testing
|
UL Flammability |
UL1685 UL Loading |
|---|---|
|
UL voltage rating |
150 V RMS |
Plenum/Non-Plenum
|
Plenum (Y/N) |
No |
|---|
History
|
Update and Revision |
Revision Number: 0.313 Revision Date: 02-03-2025 |
|---|
Belden.GenericSpecificationTitle
|
Update and Revision |
Revision Number: 0.313 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | UPC |
|---|---|---|
| 5222FN 0021000 | Red | 612825158547 |
