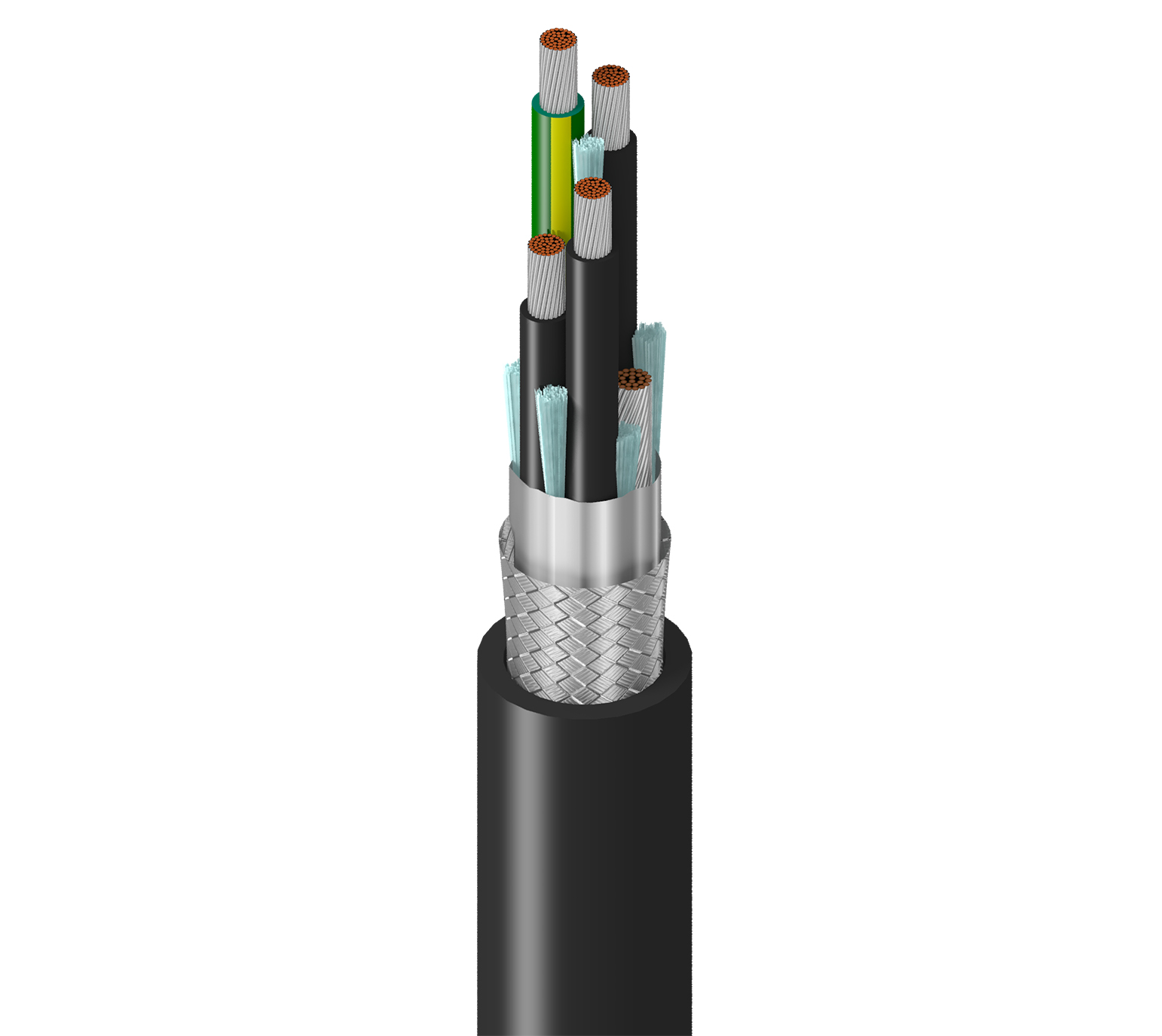

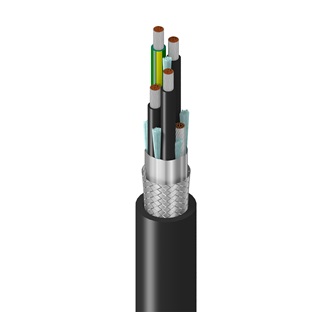

VFD 300% Gnd, 3C+G #14 Str TC, XLPE Ins+PVC Gnd, OS+TC Brd w/#14 TC Drain, Blk PVC Jkt, 600/1000V TC-ER 90C Dry/Wet 1000V Flexible Motor Supply Cable WTTC
|
Put-Up Type |
Reel |
|---|
|
Suitable Applications |
Variable Frequency Drives (VFD); AC Motor and Drive Systems |
|---|
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Conductor(s) | 3 | 14 AWG | 41x30 | TC - Tinned Copper |
| Ground Wire | 1 | 14 AWG | 41x30 | TC - Tinned Copper |
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|---|
| Conductor(s) | XLPE - Cross-Linked Polyethylene (Thermoset) | 0.046 in (1.2 mm) | 0.173 in (4.39 mm) | ICEA Chart M4 |
| Ground Wire | PVC - Polyvinyl Chloride | 0.047 in (1.2 mm) | 0.169 in (4.29 mm) | Green/Yellow Stripe |
| Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|
| Tape | Tri-Laminate (Alum+Poly+Alum) | 100% | 14 AWG (41x30) TC |
| Braid | Tinned Copper (TC) | 85% |
| Material | Nom. Thickness | Nom. Diameter | Ripcord |
|---|---|---|---|
| PVC - Polyvinyl Chloride | 0.073 in (1.9 mm) | 0.604 in (15.3 mm) | Yes |
|
Overall Cable Diameter (Nominal) |
0.604 in (15.3 mm) |
|---|
| Element | Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Other (Conds + Shield) | Nom. Characteristic Impedence | Nom. Inductance Cond-Grnd | Nom. Velocity of Prop. | Max. Current |
|---|---|---|---|---|---|---|---|
| Conductor(s) | 2.482 Ohm/1000ft | 23.0 pF/ft (75.5 pF/m) | 47 pF/ft (150 pF/m) | 63 Ohm | 0.213 µH/ft | 55% | 25 Amps per Conductor at 30ºC (per NEC) |
| 2.73 Ohm/1000ft (8.96 Ohm/km) | 25 Amps per Conductor at 30ºC (per NEC) |
| UL Voltage Rating | Voltage Rating |
|---|---|
| 1000 V (TC-ER, WTTC,UL44, UL Flexible Motor Supply Cable), 600 V (C(UL) CIC TC) | 1000 V (AWM I/II A/B) |
| UL Temperature | Operating | Installation |
|---|---|---|
| 90°C Dry, 90°C Wet | -40°C To +90°C | -40C |
| Stationary Min. | Installation Min. |
|---|---|
| 7.2 in (180 mm) | 7.2 in (180 mm) |
|
Max. Pull Tension |
347 lbs (157 kg) |
|---|---|
|
Bulk Cable Weight |
224 lbs/1000ft |
|
Environmental Suitability |
Indoor, Outdoor, Sunlight Resistance, Burial |
|---|---|
|
Sustainability |
CA Prop 65 |
|
Flammability / Reaction to Fire |
UL 1685 UL Loading, FT4, IEEE 1202 FT4 |
|
NEC / UL Compliance |
Article 336, TC-ER, XHHW-2, RHW-2, UL Flexible Motor Supply Cable |
|
AWM Compliance |
AWM I/II A/B |
|
CEC / C(UL) Compliance |
CIC, TC |
|
ICEA Compliance |
S-95-658 |
|
European Directive Compliance |
EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
|
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
|
Other Standard Compliance(s) |
P-07-KA070003-MSHA |
|
Update and Revision |
Revision Number: 0.639 Revision Date: 01-04-2024 |
|---|
| Item # | Color | Putup Type | Length | UPC | Footnote |
|---|---|---|---|---|---|
| 29501 010100 | Black | Reel | 100 ft | 612825136620 | Recommended Cable Gland BTC075A0791RA In Stock |
| 29501 010250 | Black | Reel | 250 ft | 612825136651 | C Z |
| 29501 010500 | Black | Reel | 500 ft | 612825136668 | C Z |
| 29501 0101000 | Black | Reel | 1,000 ft | 612825136637 | C Z |
| 29501 0105000 | Black | Reel | 5,000 ft | 612825136675 | C Z |
