29505

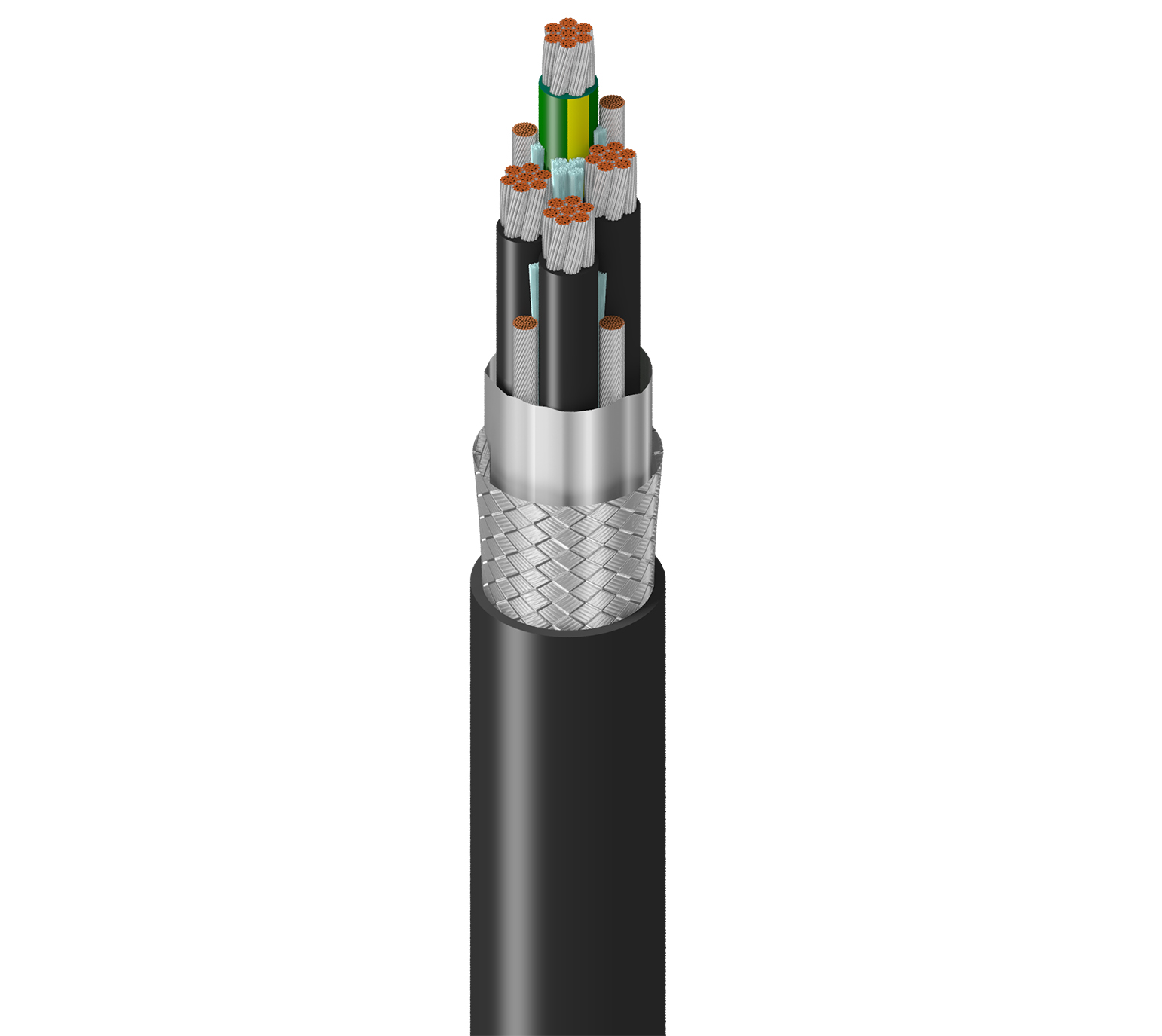

VFD 300% Gnd, 3C+G #6 Str TC, XLPE Ins+PVC Gnd, OS+TC Brd w/4-#12 TC Drains, Blk PVC Jkt, 600/1000V TC-ER 90C Dry/Wet 1000V Flexible Motor Supply Cable WTTC

...
Belden 300% Ground Flexible VFD, 3 Conductor 6AWG (7x19x27) Tinned Copper, XLPE Insulation M4 Color Code+PVC Insulated Ground, Overall Beldfoil®+Tinned Copper Braid(85%) Shield w/4-12AWG Tinned Copper Drains, Black PVC Outer Jacket, 600/1000V TC-ER 90C Dry/Wet 1000V Flexible Motor Supply Cable WTTC 1000V CSA AWM I/II A/B 600V CIC TC SUN RES DIR BUR Oil Resistant
English
Request Quote
Share
Request Sample Get Product Alerts

Specifications
Report An Error

Put-Up Type

Reel

Product Overview

Suitable Applications

Variable Frequency Drives (VFD); AC Motor and Drive Systems

Construction Details
Conductor
Element No. of Elements Size Stranding Material
Conductor(s) 3 6 AWG 7x19x27 TC - Tinned Copper
Ground Wire 1 6 AWG 7x19x27 TC - Tinned Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Conductor(s) XLPE - Cross-Linked Polyethylene (Thermoset) 0.062 in (1.6 mm) 0.319 in (8.10 mm) ICEA Chart M4
Ground Wire PVC - Polyvinyl Chloride 0.062 in (1.6 mm) 0.319 in (8.10 mm) Green/Yellow Stripe
Outer Shield
Shield Type Material Coverage Drainwire Type
Tape Tri-Laminate (Alum+Poly+Alum) 100% 12 AWG (65x30) TC
Braid Tinned Copper (TC) 85%
Outer Jacket
Material Nom. Thickness Nom. Diameter Ripcord
PVC - Polyvinyl Chloride 0.095 in (2.4 mm) 1.002 in (25.45 mm) Yes

Overall Cable Diameter (Nominal)

1.002 in (25.45 mm)

Electrical Characteristics
Electricals
Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Nom. Characteristic Impedence Nom. Velocity of Prop. Max. Current
Conductor(s) 0.379 Ohm/1000ft 46 pF/ft (150 pF/m) 83 pF/ft (270 pF/m) 37 Ohm 55% 75 Amps per Conductor at 30ºC
0.4276 Ohm/1000ft (1.403 Ohm/km) 75 Amps per Conductor at 30ºC
Voltage
UL Voltage Rating Voltage Rating
1000 V (TC-ER, WTTC, UL44, UL Flexible Motor Supply Cable), 600 V (C(UL) CIC TC) 1000 V (AWM I/II A/B)
Mechanical Characteristics
Temperature
UL Temperature Operating
90°C Dry, 90°C Wet -40°C To +90°C
Bend Radius
Stationary Min. Installation Min.
12.0 in (305 mm) 12.0 in (305 mm)

Max. Pull Tension

1562 lbs (708.5 kg)

Bulk Cable Weight

793 lbs/1000ft

Standards and Compliance

Environmental Suitability

Indoor, Outdoor, Sunlight Resistance, Burial

Sustainability

CA Prop 65

Flammability / Reaction to Fire

UL 1685 UL Loading, FT4, IEEE 1202 FT4

NEC / UL Compliance

Article 336, TC-ER, WTTC, UL Flexible Motor Supply Cable

AWM Compliance

AWM I/II A/B

CEC / C(UL) Compliance

CIC, TC

ICEA Compliance

S-95-658

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)

Other Standard Compliance(s)

P-07-KA070003-MSHA

History

Update and Revision

Revision Number: 0.614 Revision Date: 12-22-2023

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Putup Type Length UPC Footnote
29505 010250 Black Reel 250 ft 612825137177 C Z
29505 0101000 Black Reel 1,000 ft 612825137139 C Z
29505 0103500 Black Reel 3,500 ft 612825137184 C Z
