1322R

CATV Video, RG6, 18 AWG BCCS, Quad Shield, CMR

...

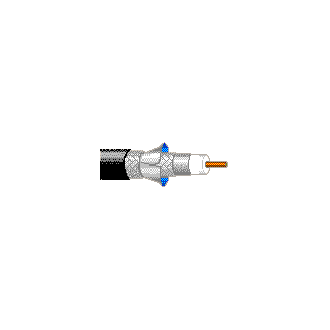

Series 6, 18 AWG solid .040" bare copper-covered steel conductor, gas-injected foam polyethylene insulation, Duobond® IV quad shield (Foil + 60% Braid + Foil + 40% Braid), PVC jacket.
English
Request Quote
Share
Get Product Alerts
Specifications
Report An Error
Product Overview

Suitable Applications

Direct Broadcast Satellite, CATV

Physical Characteristics (Overall)
Conductor
AWG Stranding Material Nominal Diameter No. of Coax
18 Solid BCCS - Bare Copper Covered Steel 0.04 in 1

Conductor Count

1

Insulation
Material Nominal Diameter
PE - Polyethylene (Foam) 0.18 in

Table Notes

Gas Injected

Outer Shield
Type Layer Material Material Trade Name Coverage [%]
Tape 1 Tri-Laminate (Alum+Poly+Alum) Duofoil® 100%
Braid 2 Aluminum 60%
Tape 3 Tri-Laminate (Alum+Poly+Alum) Duofoil® 100%
Braid 4 Aluminum 40%
Outer Jacket
Material Nominal Diameter
PVC - Polyvinyl Chloride 0.298 in
Electrical Characteristics
Conductor DCR
Nominal Conductor DCR Nominal Outer Shield DCR Outer Conductor DCR
28 Ohm/1000ft 4.8 Ohm/1000ft 4.8 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Shield
16.2 pF/ft
Inductance
Nominal Inductance
0.097 µH/ft
Impedance
Nominal Characteristic Impedance
75 Ohm
Return Loss
Frequency [MHz] Min. Structural Return Loss (SRL)
5-1000 MHz 20 dB
1000 - 2250 MHz 15 dB
2250 - 3000 MHz 10 dB
High Frequency (Nominal/Typical)
Frequency [MHz] Nom. Insertion Loss Nom. Structural Return Loss (SRL)
5 MHz 0.5 dB/100ft 30 dB
55 MHz 1.4 dB/100ft 24 dB
211 MHz 2.6 dB/100ft
500 MHz 4.1 dB/100ft
750 MHz 5.1 dB/100ft
862 MHz 5.5 dB/100ft
1000 MHz 6 dB/100ft
1450 MHz 7.4 dB/100ft
1800 MHz 8.3 dB/100ft
2250 MHz 9.2 dB/100ft
3000 MHz 10.5 dB/100ft
Delay
Nominal Delay Nominal Velocity of Propagation (VP) [%]
1.2 ns/ft 83%
High Frequency
Max. Insertion Loss (Attenuation)
0.67 dB/100ft
1.6 dB/100ft
2.87 dB/100ft
3.24 dB/100ft
3.43 dB/100ft
3.72 dB/100ft
4 dB/100ft
4.26 dB/100ft
4.71 dB/100ft
5.59 dB/100ft
5.98 dB/100ft
6.54 dB/100ft
8 dB/100ft
8.8 dB/100ft
10 dB/100ft
11 dB/100ft
Screening
Frequency [MHz] Shield Effectiveness
5 MHz
50 MHz 110 dB
50 MHz
1000 MHz
Voltage
UL Voltage Rating
300 V RMS
Temperature Range

Storage Temperature Range

-40°C To +80 °C

Operating Temperature Range

-40°C To +80°C

Mechanical Characteristics

Bulk Cable Weight

33 lbs/1000ft

Max. Pull Tension

162 lbs

Min. Bend Radius/Minor Axis

3 in
Standards

NEC/(UL) Compliance

CATVR, CMR

CEC/C(UL) Compliance

CMG

CPR Euroclass

Eca

RG Type

6

Series Type

6

Other Specification

CEC/C(UL): CMG
Applicable Environmental and Other Programs

Environmental Space

Indoor/Outdoor

EU Directive 2000/53/EC (ELV)

Yes

EU Directive 2003/96/EC (BFR)

Yes

EU Directive 2011/65/EU (RoHS 2)

Yes

EU Directive 2012/19/EU (WEEE)

Yes

EU Directive 2015/863/EU (RoHS 2 amendment)

Yes

EU Directive Compliance

EU Directive 2003/11/EC (BFR)

EU CE Mark

Yes

MII Order #39 (China RoHS)

Yes

Suitability

Suitability - Indoor

Yes

Suitability - Outdoor

Yes

Flammability, LS0H, Toxicity Testing

UL Flammability

UL1666 Vertical Riser, UL1685 FT4 Loading

UL voltage rating

300 V RMS

Plenum/Non-Plenum

Plenum (Y/N)

No

Plenum Number

7916AP

Related Part Numbers

Footnote

C - CRATE REEL PUT-UP.
History

Update and Revision

Revision Number: 0.438 Revision Date: 04-14-2023

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Put-Up Type Length UPC
1322R 0101000 Black Reel 1,000 ft 612825111894
1322R 010U1000 Black UnReel 1,000 ft 612825111887
