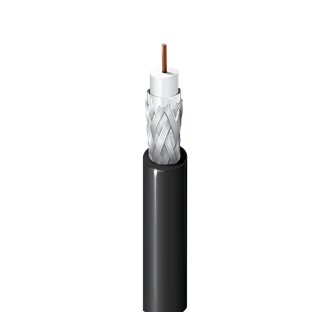

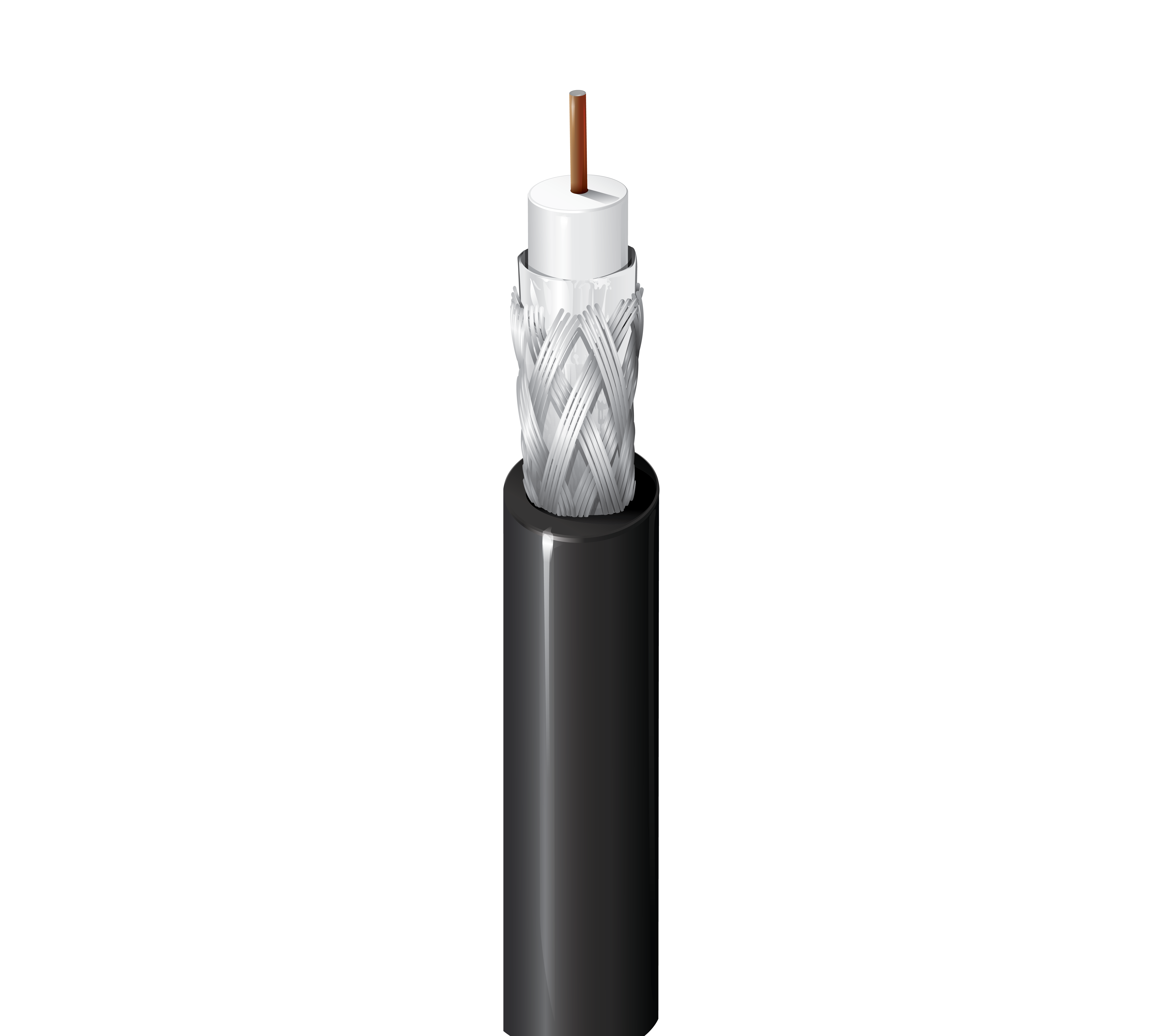

Broadband Coax, Series 6, 18 AWG Solid BCCS, Foil + 60% AL Braid, PVC Jkt, CM
|
Suitable Applications |
Broadband, Cable Television (CATV), RF drop cable, Over-The-Air (OTA) antennas |
|---|
|
Series Type |
6 |
|---|
| Size | Stranding | Nom. Diameter | Material |
|---|---|---|---|
| 18 AWG | Solid | 0.040 in | BCCS - Bare Copper Covered Steel |
| Material | Nom. Insulation Diameter | Color Code |
|---|---|---|
| PE - Polyethylene (Foam) | 0.180 in (4.57 mm) | White |
| Layer | Outer Shield Type | Material | Material Trade Name | Coverage |
|---|---|---|---|---|
| 1 | Tape | Tri-Laminate (Alum+Poly+Alum) | Duobond® II | 100% |
| 2 | Braid | Aluminum | 60% |
| Material | Nom. Diameter |
|---|---|
| PVC - Polyvinyl Chloride | 0.270 in (6.86 mm) |
|
Overall Cable Diameter (Nominal) |
0.270 in (6.86 mm) |
|---|
| Frequency | Min. Structural Return Loss |
|---|---|
| 5 - 1000 MHz | 20 dB |
| Frequency | Max. Attenuation |
|---|---|
| 5 MHz | 0.58 dB/100ft |
| 55 MHz | 1.60 dB/100ft |
| 211 MHz | 3.05 dB/100ft |
| 250 MHz | 3.30 dB/100ft |
| 270 MHz | 3.37 dB/100ft |
| 300 MHz | 3.55 dB/100ft |
| 330 MHz | 3.74 dB/100ft |
| 350 MHz | 3.85 dB/100ft |
| 400 MHz | 4.15 dB/100ft |
| 450 MHz | 4.40 dB/100ft |
| 500 MHz | 4.66 dB/100ft |
| 550 MHz | 4.90 dB/100ft |
| 600 MHz | 5.10 dB/100ft |
| 750 MHz | 5.65 dB/100ft |
| 870 MHz | 6.11 dB/100ft |
| 1000 MHz | 6.55 dB/100ft |
| Nom. Conductor DCR | Nom. Outer Shield DCR | Nom. Capacitance Cond-to-Shield | Nom. Characteristic Impedance | Nom. Velocity of Prop. |
|---|---|---|---|---|
| 28 Ohm/1000ft | 9 Ohm/1000ft (30 Ohm/km) | 16.2 pF/ft (53.1 pF/m) | 75 Ohm | 83% |
| UL Voltage Rating |
|---|
| 300 V (CM) |
| Operating |
|---|
| -40°C to +80°C |
| Installation Min. |
|---|
| 3 in (76 mm) |
|
Max. Pull Tension |
150 lbs (68 kg) |
|---|---|
|
Bulk Cable Weight |
30 lbs/1000ft |
|
Environmental Suitability |
Indoor (Not Riser or Plenum), Indoor, Aerial - Black only, When supported by messenger wire |
|---|---|
|
Sustainability |
CA Prop 65 |
|
Flammability / Reaction to Fire |
UL1685 UL Loading |
|
CPR Compliance |
CPR Euroclass: Eca; CPR UKCA Class: Eca |
|
NEC / UL Compliance |
CM, CATV |
|
CEC / C(UL) Compliance |
CM |
|
European Directive Compliance |
EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
|
UK Regulation Compliance |
UKCA Mark |
|
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
|
Other Standard Compliance(s) |
ANSI/SCTE 74 |
|
Plenum Number |
9116P |
|
Update and Revision |
Revision Number: 0.522 Revision Date: 04-14-2023 |
|---|
| Item # | Color | Putup Type | Length | UPC/EAN |
|---|---|---|---|---|
| 9116 290U1000 | Beige, Light | UnReel | 1,000 ft | 612825224389 |
| 9116-0101000 | Black | Reel | 305 m | 8719605020123 |
| 9116-K101000 | Black | Reel | 305 m | 8719605020154 |
| 9116 010500 | Black | Reel | 500 ft | 612825224426 |
| 9116 010U500 | Black | UnReel | 500 ft | 612825224457 |
| 9116 010S700 | Black | Reel | 700 ft | 612825348313 |
| 9116 0101000 | Black | Reel | 1,000 ft | 612825224440 |
| 9116 010U1000 | Black | UnReel | 1,000 ft | 612825348320 |
| 9116 010N1000 | Black | Reel w/Small Barrel | 1,000 ft | 612825224433 |
| 9116 009500 | White | Reel | 500 ft | 612825224396 |
| 9116 0091000 | White | Reel | 1,000 ft | 612825224419 |
| 9116 009U1000 | White | UnReel | 1,000 ft | 612825348337 |
| 9116 009N1000 | White | Reel w/Small Barrel | 1,000 ft | 612825224402 |
| 9116 Q5H1000 | White, Neutral | Reel | 1,000 ft | 612825224372 |
| 9116 Q5HU1000 | White, Neutral | UnReel | 1,000 ft | 612825224488 |
