Product Number: 716SNS1P11HQ-25

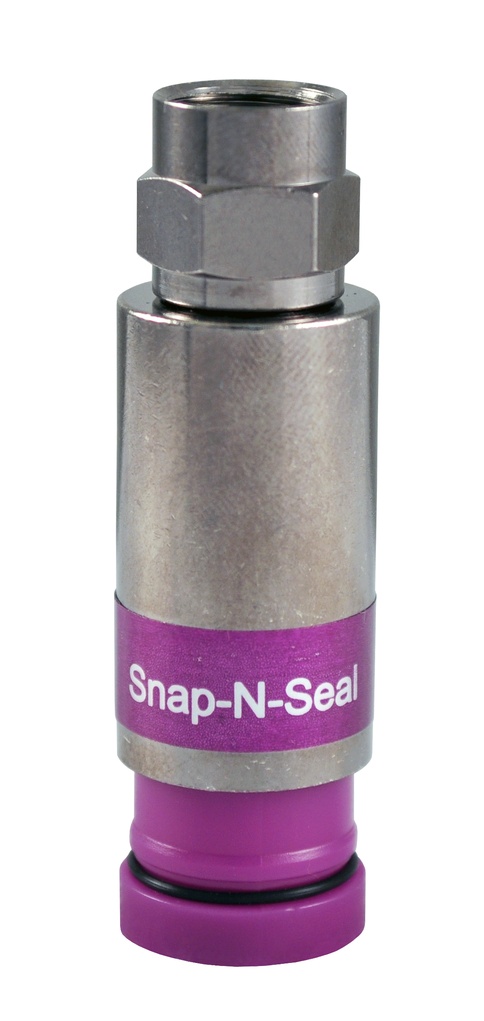

ProSNS RG-11 Universal "F" Coax Compression Connector 7/16" Hex Head
ProSNS RG11 "F" male, 7/16" hex head, (quad-shield) polymer compression sleeve for easy insertion & lowest possible tool compression force. Prepositioned polymer sleeve can be detached. 25 per Pack. This product is discontinued. Please contact Belden Customer Service to check for existing saleable inventory. It has been replaced by one of Belden's PPC Brand EX Series connectors - EX11N716. For product information please visit: https://products.ppc-online.com/product/ex-ex11n716/
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
CATV, Video Distribution, RF Applications |
|---|
Physical Characteristics (Overall)
|
Packaging |
25 Pack |
|---|---|
|
Number of Pieces |
1 |
Connectors
Materials
| Description | Material |
|---|---|
| Nut | Nickel/Tin Plated Brass |
| O-Ring | Ethylene Propylene |
| Body | Nickel/Tin Plated Brass |
| Contact | Gold Plated |
Electrical Characteristics
Impedance
| Nominal Characteristic Impedance |
|---|
| 75 Ohm |
Return Loss
| Frequency [MHz] |
|---|
| ≥-30 dB up to 1 GHz typical |
|
Electrical Characteristics Notes |
Meets or exceeds SCTE specifications. |
|---|
Temperature Range
|
Operating Temperature Range |
-40°F (-40°C) to 140°F (60°C) |
|---|
Mechanical Characteristics
|
Footprint/Type |
Coax |
|---|---|
|
Connector Interface Type |
F |
|
Gender |
Male - plug |
|
Connector Series Name |
ProSNS |
|
Color Band |
Violet |
|
Locking |
No |
|
Tool Compatibility |
CPLCCT-LS59/11 or SNSUNI (compression), PS11 (strip) |
|
Termination Type |
Compression |
|
Cable Center Conductor Diameter Limits |
.0634 - .0647 inch |
|---|---|
|
Cable Dielectric Diameter Limits |
.280 - .294 inch |
|
Cable Outer Jacket Diameter Limits |
.390 - .417 inch |
|
Cable Insertion Force |
20 lbf |
|
Cable Retention Force |
40 lbf |
Standards
|
RG Type |
11 |
|---|
Applicable Environmental and Other Programs
|
Environmental Space |
Indoor/Outdoor |
|---|---|
|
EU CE Mark |
Yes |
Suitability
|
Suitability - Indoor |
Yes |
|---|---|
|
Suitability - Outdoor |
Yes |
Plenum/Non-Plenum
|
Plenum (Y/N) |
No |
|---|
Related Part Numbers
|
Footnote |
Q - STANDARD PACKAGES CANNOT BE BROKEN. |
|---|
|
Patent |
This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents. |
|---|
Product Notes
|
Notes |
Salt Fog: Passes 1000 hours ANSI/SCTE 143 2007, RFI Shielding: -85 dB (60% bonded foil) |
|---|
History
|
Update and Revision |
Revision Number: 0.149 Revision Date: 04-04-2025 |
|---|
Belden.GenericSpecificationTitle
|
Update and Revision |
Revision Number: 0.149 Revision Date: 04-04-2025 |
|---|
Part Numbers
| Item # | Color | UPC |
|---|---|---|
| 716SNS1P11HQ-25 | No Color | 845671004977 |
