4505RBUHD3 B50

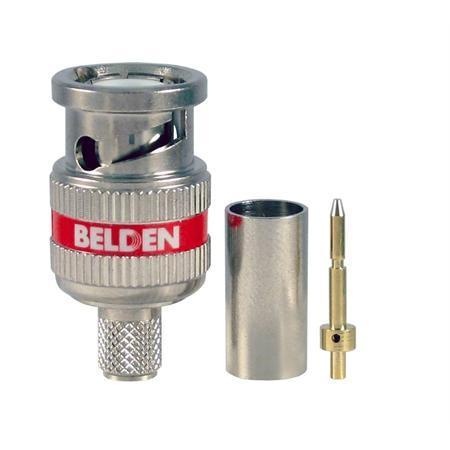

12 GHz BNC Crimp Connector

...
RG-59, 12 GHz, UHD, BNC, 3 Piece crimp connector
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

HD-SDI, UHD-SDI, Video, Digital Video, SMPTE 2082-1 12 Gb/s UHDTV, SMPTE 2081-1 6 Gb/s UHDTV, SMPTE 424M 3 Gb/s HD-SDI 1080P

Physical Characteristics (Overall)

Packaging

50 per package

Number of Pieces

3

Connectors
Materials
Description Material
Nut Brass, Nickel Plated
Body Brass, Nickel Plated
Contact Brass, Gold Plated
Insulator PTFE
Electrical Characteristics
Impedance
Nominal Characteristic Impedance
75 Ohm
Return Loss
Frequency [MHz] Minimum Return (RL)
5-1485 15 dB
1485-3000 10 dB
3000-6000 7 dB
6000-12000 4 dB

Electrical Characteristics Notes

SMPTE 2082-1 Return Loss or better

Mechanical Characteristics

Footprint/Type

Coax

Connector Interface Type

BNC

Gender

Male - plug

Connector Series Name

UHD

Color Band

Red

Locking

No

Tool Compatibility

BB3PHCT (crimp)

Termination Type

Crimp

Cable Center Conductor Diameter Limits

0.0295 - 0.0322 in

Cable Dielectric Diameter Limits

0.1377 - 0.1456 in

Cable Outer Jacket Diameter Limits

0.2342 - 0.2500 in

Standards

RG Type

59

Applicable Environmental and Other Programs

Environmental Space

Indoor

EU Directive 2000/53/EC (ELV)

Yes

EU Directive 2011/65/EU (RoHS 2)

Yes

EU Directive 2012/19/EU (WEEE)

Yes

EU Directive 2015/863/EU (RoHS 2 amendment)

Yes

EU Directive Compliance

EU Directive 2003/11/EC (BFR)

CA Prop 65

Yes

Suitability

Suitability - Indoor

Yes

Suitability - Outdoor

No

Plenum/Non-Plenum

Plenum (Y/N)

No

History

Update and Revision

Revision Number: 0.41 Revision Date: 03-04-2023

Show All Specifications
Hide Specifications
Part Numbers
Item # Color UPC
4505RBUHD3 B50 Red 845671005523
