Product Number: DB6U-25

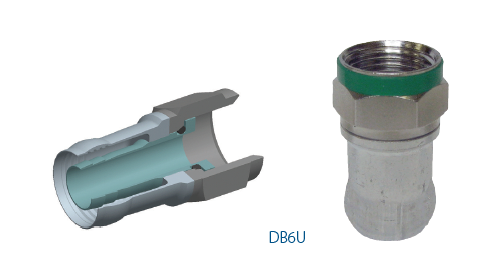

Double Bubble RG-6 "F" Coax Compression Connector
Double Bubble RG6 Universal "F" type connector, fits standard, tri-shield and quad-shield coax cable. Compression design that molds the metal completely around the cable. 25 per Pack
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
CCTV, Security Cameras, Video |
|---|
Physical Characteristics (Overall)
|
Packaging |
25 Pack |
|---|---|
|
Number of Pieces |
1 |
Connectors
Materials
| Material |
|---|
| Nickel plated Brass |
Electrical Characteristics
Impedance
| Nominal Characteristic Impedance |
|---|
| 75 Ohm |
Return Loss
| Frequency [MHz] |
|---|
|
DC-1 GHz |
|
DC-2 GHz |
|
DC-3 GHz |
Mechanical Characteristics
|
Footprint/Type |
Coax |
|---|---|
|
Connector Interface Type |
F |
|
Gender |
Male - plug |
|
Connector Series Name |
Double Bubble |
|
Locking |
No |
|
Tool Compatibility |
CPLCRBC-BR (compression), PS59/6/RGB (strip) |
|
Termination Type |
Compression |
|
Cable Center Conductor Diameter Limits |
.0399 - .0418 inch |
|---|---|
|
Cable Dielectric Diameter Limits |
.180 - .193 inch |
|
Cable Outer Jacket Diameter Limits |
.265 - .305 inch |
Standards
|
RG Type |
6 |
|---|---|
|
Series Type |
6 |
Applicable Environmental and Other Programs
|
EU CE Mark |
Yes |
|---|
Suitability
|
Suitability - Indoor |
Yes |
|---|
Related Part Numbers
|
Patent |
This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents. |
|---|
History
|
Update and Revision |
Revision Number: 0.112 Revision Date: 03-04-2023 |
|---|
Belden.GenericSpecificationTitle
|
Update and Revision |
Revision Number: 0.112 Revision Date: 03-04-2023 |
|---|
Part Numbers
| Item # | Color | UPC |
|---|---|---|
| DB6U-25 | No Color | 845671004878 |
