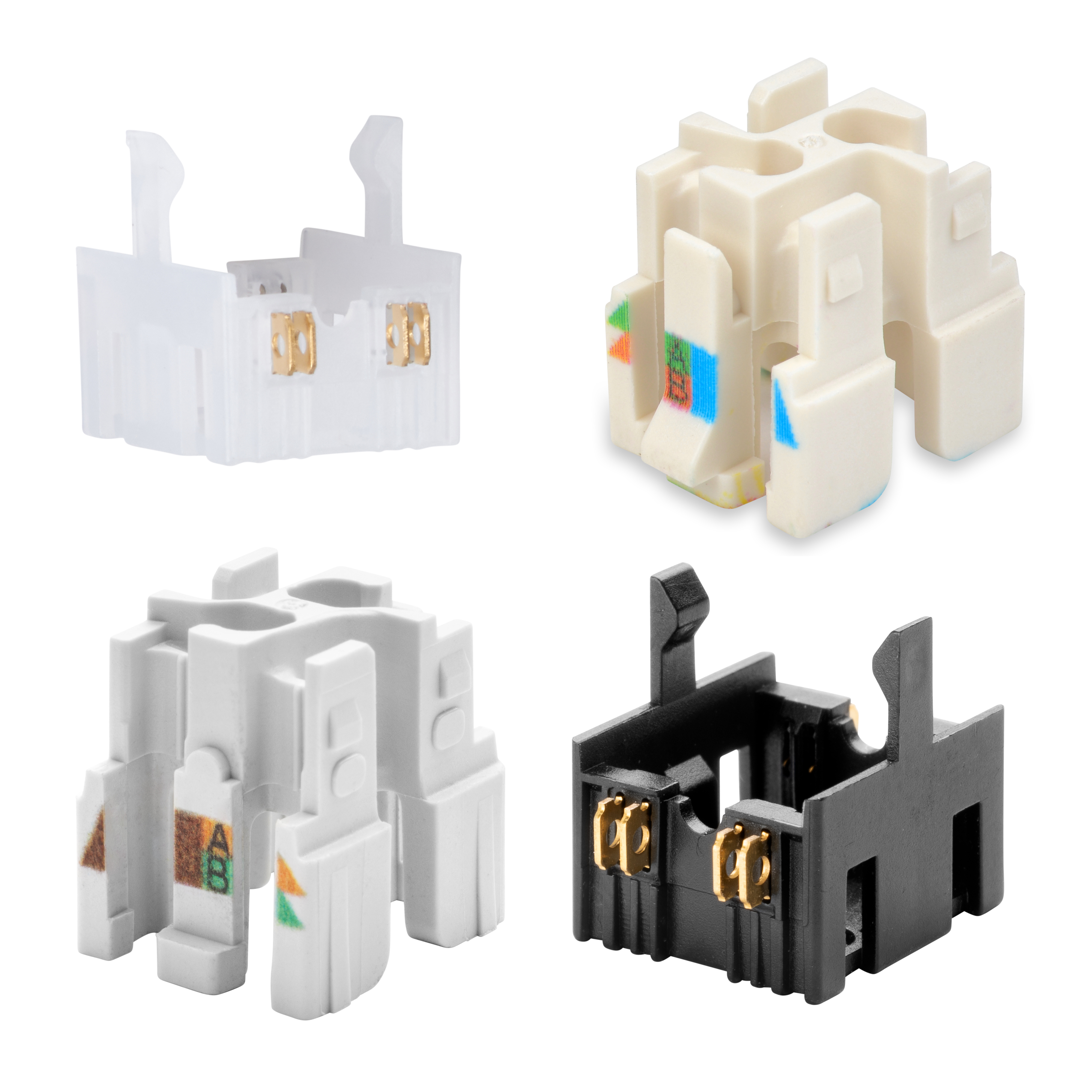

REVConnect Bulk Pack of Cores

REVConnect Core Pack, Bulk Pack of 50 - select below appropriate core part number fitting the used cable

...
REVConnect Core Pack, Bulk Pack of 50. Used to terminate REVConnect Jacks and Plugs - Compatible for Insulated wire diameter 0.9mm up to 1.3mm or 1.3mm up to 1.45mm

Regions Available: Global
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Terminate REVConnect Jacks and Plugs

Physical Characteristics (Overall)

Packaging

Bulk 50x core cable managers and caps packaged in a resealable plastic bags

Weight

0.18 lbs
Connectors
Materials
Description Material
Connector PBT UL94V-0
Temperature Range

Installation Temperature Range

-10°C To +60°C

Storage Temperature Range

-40°C To +70°C

Operating Temperature Range

-10°C To +60°C

Mechanical Characteristics

Footprint/Type

KeyConnect

Body Attachment Method

Compression

Tool Compatibility

REVConnect Termination Tool (p/n RVUTT01)

Contact Attachment Method

Insulation Piercing

Applicable Environmental and Other Programs

Environmental Space

Indoor

EU Directive 2002/95/EC (RoHS)

Yes

Product Notes

Notes

Insulation O.D. Range core = 0.90 to 1.30 mm & Insulation O.D. Range core = 1.30 to 1.45 mm, Cable Jacket O.D. Max = 9.3 mm

History

Update and Revision

Revision Number: 0.311 Revision Date: 08-24-2023

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Packaging Insulated Wire Diameter
RVUECOGY-B50 Gray Bag of 50 1.3mm up to 1.45mm
RVUCOEW-B50 White Bag of 50 0.9mm up to 1.3mm
