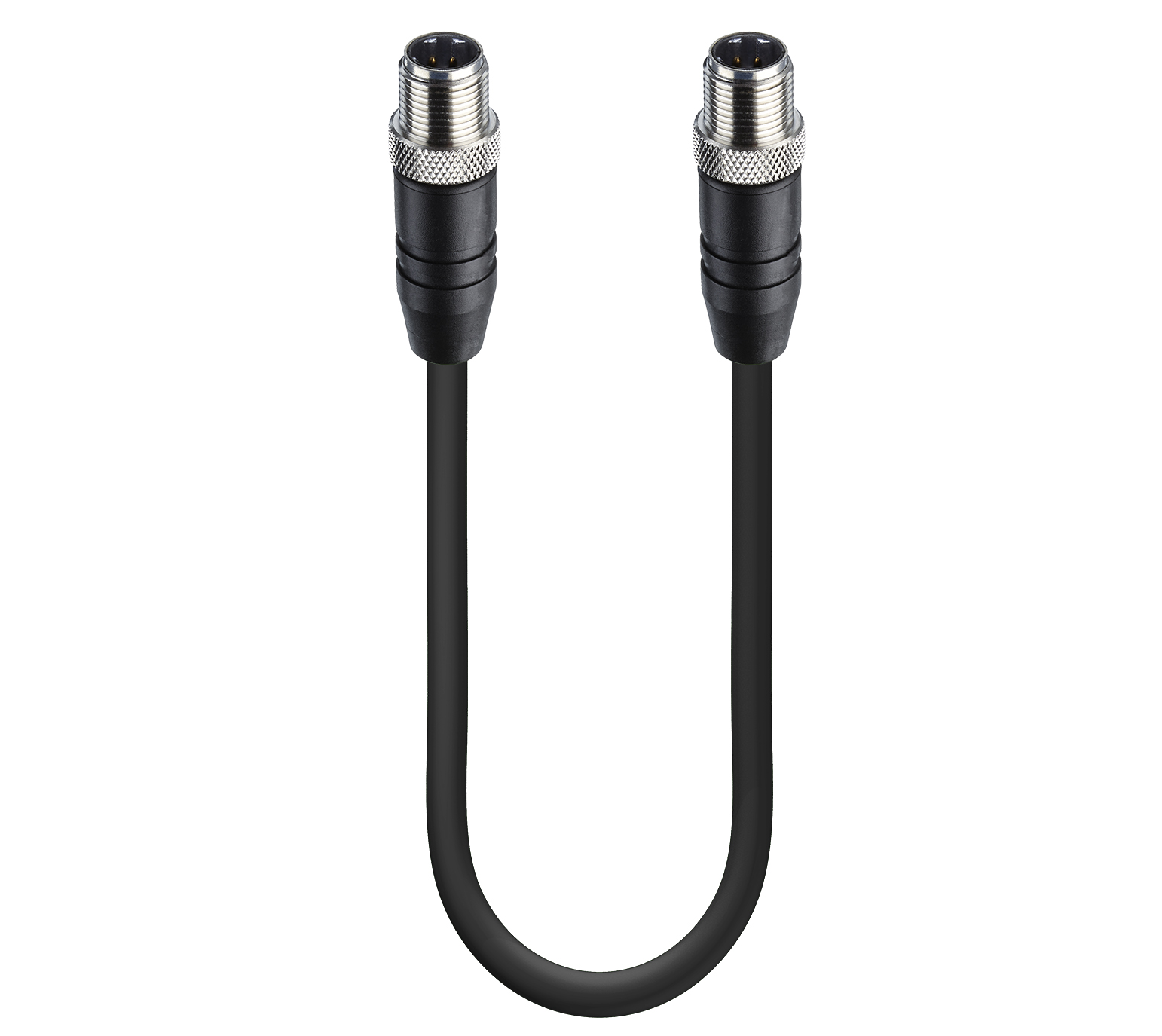

Fast Ethernet Cat5e Data Double-Ended Cordset: Male straight D-coded black M12 Railway to male straight D-coded black M12 Railway, shielded, 50 V AC / 60 V DC, 4 A; X-FRNC black cable, 4-wires, 0.34 mm²

Availability:

Global
Status:

Active

Quote

Specifications
Part Numbers
Resources
Where to buy

Specifications

Expand All

Information

Face View Side 1

Pin 1	Pin 2	Pin 3	Pin 4
yellow	white	orange	blue

Face View Side 2

Pin 1	Pin 2	Pin 3	Pin 4
yellow	white	orange	blue

Product Family	Data Connectors
Connector Type	Cordset, double ended
Shielding Type	Shielded
Voltage Rating	60 V
Rated Impulse Voltage	1.5 kV
Operating Voltage	50 V AC / 60 V DC
Current Rating	4 A
Data Transmission Type	Fast Ethernet Cat5e
Data Transmission Rate	100 Mbit/s

Technical Data Side 1

Side 1 Product Sub Family	M12 Railway
Side 1 Type of Contact/Gender	Male
Connector Design	Straight
Attachment Type	Coupling Screw
Number of Pins	4
Coding, Side 1	D
Side 1 Contact Resistance	≤ 10 mOhm
Insulation Resistance	˃ 10^9 Ohm
Mating Cycles	≤ 100
Ambient Temperature (Operation)*	- 40 °C - + 90 °C
Protection Degree / IP Rating**	IP65, IP67, IP69K
Side 1 Design Standard	IEC 61076-2-101
Side 1 Pollution Degree	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Overvoltage Category	III acc. to DIN EN 60664-1 (VDE 0110-1)
Contact Base Material	CuSn
Side 1 Contact Plating	Cu/Au
Contact Bearer Material	PA
Contact Bearer Color	Black
Flammability Class (Contact Bearer)	UL 94 V-0
Molded Body Material	PA
Molded Body Color	Black
Flammability Class (Molded Body)	UL 94 V-0
Attachment Material	CuZn
Attachment Plating	Nickel-plated
Shielding Material	CuZn, tin-plated
Fastening Torque (Attachment)	M 12x1: (50-60) Ncm, hand-tight
Note	Do not connect or disconnect under load.

Cable Data

Cable Number	508
Conductor Size	0.34 mm²
Number of Wires	4
Minimal Bending Radius (Fixed Inst)	˃ 10 x D
Minimal Bending Radius (Flexible Inst)	˃ 5 x D
Conductor Material	Cu
Cable Jacket Material	X-FRNC
Cable Jacket Color	black
Cable Diameter D	ø 6.70 ± 0.30 mm
Wire Insulation Material	Polyolefin
Insulated Wire Diameter	ø 1.63 ± 0.05 mm
Overall Shield (Cable)	Cu-ETP1 tinned
Foil shield	Al-PT Foil
Ambient Temperature (Fixed Installation)	- 40 °C - + 90 °C
Ambient Temperature (Flex Installation)	- 40 °C - + 90 °C
Ambient Temperature (Drag Chain Inst)	- 5 °C - + 50 °C
Flammability Class (Cable Jacket)	IEC 60332-1-2, EN50305, IEC60332-3-25 cat D; fire protection Railway vehicles: DIN 5510-2 protection level 1 to 4; CEN/TS 45545-2 HL1-HL3; smoke density acc. to DIN EN 61034-2, EN50268-2: T ˃70% ;toxicity (NF X70-100-1): CITc ˂ 0.7
Core Colors	white, blue, yellow, orange

Technical Data Side 2

Side 2 Product Sub Family	M12 Railway
Side 2 Type of Contact/Gender	Male
Connector Design, Side 2	Straight
Attachment Type, Side 2	Coupling Screw
Number of Pins, Side 2	4
Coding, Side 2	D
Contact Resistance, Side 2	≤ 10 mOhm
Insulation Resistance, Side 2	˃ 10^9 Ohm
Mating Cycles, Side 2	≤ 100
Ambient Temperature (Operation), Side 2*	- 40 °C - + 90 °C
Protection Degree / IP Rating, Side 2**	IP65, IP67, IP69K
Design Standard, Side 2	IEC 61076-2-101
Pollution Degree, Side 2	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Overvoltage Category, Side 2	III acc. to DIN EN 60664-1 (VDE 0110-1)
Contact Base Material, Side 2	CuSn
Contact Plating, Side 2	Cu/Au
Contact Bearer Material, Side 2	PA
Contact Bearer Color, Side 2	Black
Flammability Class (Contact Bearer), Side 2	UL 94 V-0
Molded Body Material, Side 2	PA
Molded Body Color, Side 2	Black
Flammability Class (Molded Body), Side 2	UL 94 V-0
Attachment Material, Side 2	CuZn
Attachment Plating, Side 2	Nickel-plated
Shielding Material, Side 2	CuZn, tin-plated
Fastening Torque (Attachment), Side 2	M 12x1: (50-60) Ncm, hand-tight

Safety & Environmental Compliance

RoHS Compliant	yes

Resistances

Halogenfree	IEC 60754-1, EN 50267-1-2, HCL ˂ 0.4%
Rail	Yes
Oil Resistance	IEC 60811-2-1, EN 50306 par 4.8, EN 50306 par 4.9, EN 50306 par 4.10

Notes

Protection Degree / IP Rating Note	** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
Note Derating	Notice derating

History

Update and Revision	Revision Number: 0.78 Revision Date: 02-20-2026

Information

Update and Revision	Revision Number: 0.78 Revision Date: 02-20-2026

Report An Error

Part Numbers

Item #	Item Description	Cable Length
934688023	0985 508 121/3 M
9578	0985 508 121/12 M
9563	0985 508 121/7 M
934688018	0985 508 121/0,5 M	0.5 m
934688019	0985 508 121/1 M	1 m
934688020	0985 508 121/1,5 M	1.5 m
934688007	0985 508 121/2 M	2 m
934688008	0985 508 121/5 M	5 m
934688009	0985 508 121/10 M	10 m
934688010	0985 508 121/15 M	15 m
16850	0985 508 121/16 M	16 m
7230	0985 508 121/20 M	20 m
9558	0985 508 121/25 M	25 m
16852	0985 508 121/30 M	30 m
16851	0985 508 121/32 M	32 m
16849	0985 508 121/42 M	42 m
