Product Number: 0985 S4742 501

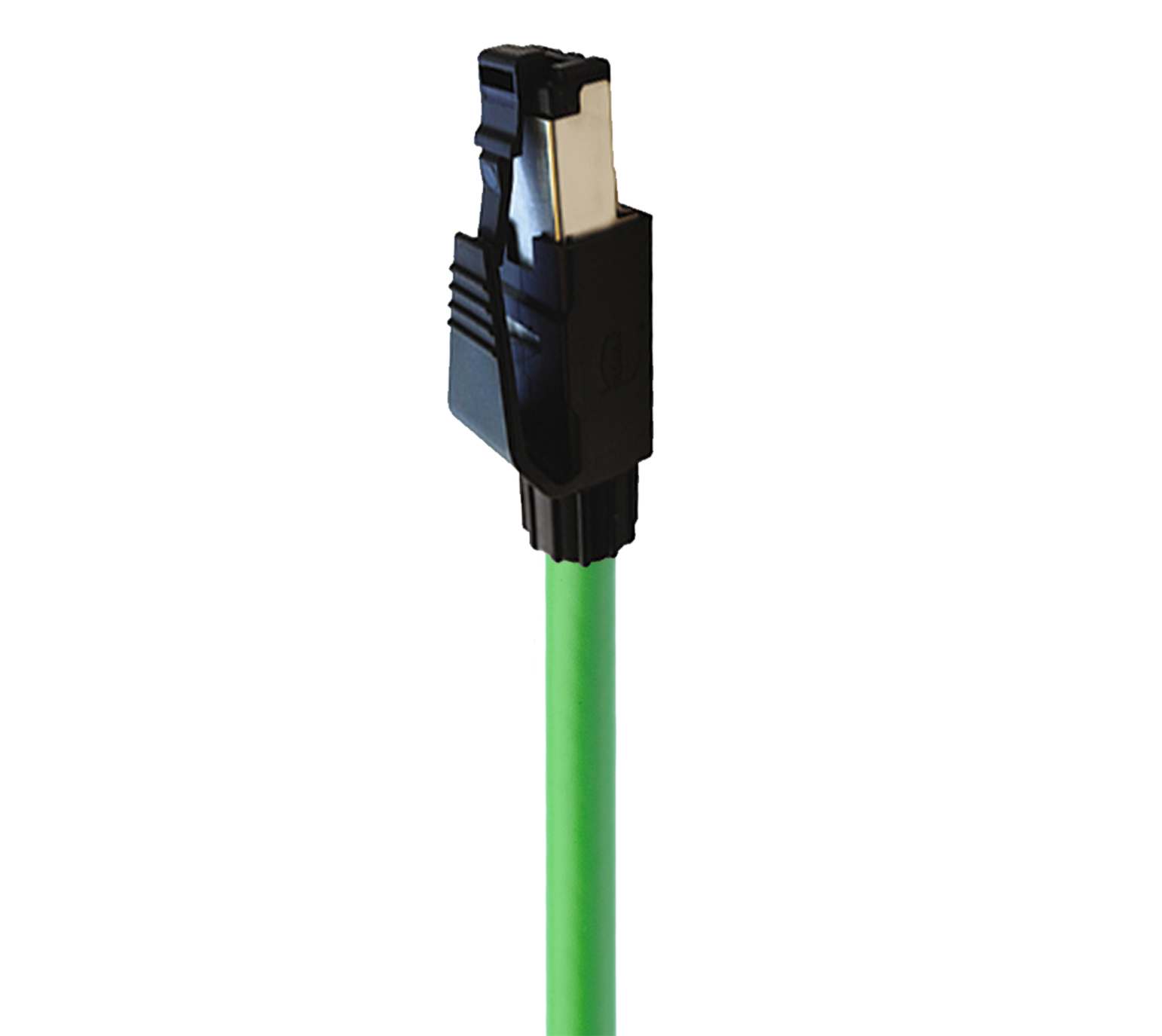

Fast Ethernet Cat5e Data Single-Ended Cordset: RJ45 Field Attachable, male, straight, 4-pin, RJ45-coded, shielded, black housing, 30 V AC / 42 V DC, 1.5 A; TPE green cable, 4-wires, 0.38 mm²

Fast Ethernet Cat5e Data Single-Ended Cordset: RJ45 Field Attachable, male, straight, 4-pin, RJ45-coded, shielded, black housing, 30 V AC / 42 V DC, 1.5 A; TPE green cable, 4-wires, 0.38 mm²

  • Availability:
    Global
  • Status:
    Active
0985 S4742 501
  • 0985 S4742 501
1 of 1
  • Where to buy

Specifications

Expand All

Face View

Pin 1 Pin 2 Pin 3 Pin 4
yellow orange white blue

Product Family

Data Connectors

Product Sub Family

RJ45 Field Attachable

Connector Type

Cordset, single ended

Type of Contact / Gender

Male

Connector Design

Straight

Number of Pins

4

Coding

RJ45

Shielding

Shielded

Rated Voltage

60 V

Rated Impulse Voltage

1 kV

Operating Voltage

30 V AC / 42 V DC

Rated Current*

1.5 A

Data Transmission

Fast Ethernet Cat5e

Data Transmission Rate

100 Mbit/s

Contact Resistance

≤ 20 mOhm

Insulation Resistance

˃ 10^9 Ohm

Mating Cycles

≤ 750

Ambient Temperature (Operation)*

- 40 °C - + 70 °C

Protection Degree / IP Rating**

IP20

Design Standard

IEC 60603-7

Overvoltage Category

I acc. to DIN EN 60664-1 (VDE 0110-1)

Contact Base Material

CuSn

Contact Plating

Cu/Au

Contact Bearer Material

PA

Contact Bearer Color

Black

Flammability Class (Contact Bearer)

UL 94 V-0

Housing Material

PA

Housing Color

Black

Flammability Class (Housing)

UL 94 V-0

Shielding Material

Copper, nickel-plated

Cable Number

542

Conductor Size

0.38 mm²

Number of Wires

4

Minimal Bending Radius (Fixed Inst)

˃ 30 mm

Minimal Bending Radius (Flexible Inst)

˃ 60 mm

Cycles (Bending)

˃ 5 M

Conductor material

Cu

Cable Jacket Material

TPE

Cable Jacket Color

green matt similarly RAL 6018

Cable Diameter D

ø 6.50 ± 0.20 mm

Wire Insulation Material

PP

Insulated Wire Diameter

ø 1.50 mm

Overall Shield (Cable)

Cu-ETP1 tinned

Foil shield

Al-PT Foil

Ambient Temperature (Fixed Installation)

- 40 °C - + 90 °C (UL: + 80 °C)

Ambient Temperature (Flex Installation)

- 40 °C - + 90 °C (UL: + 80 °C)

Ambient Temperature (Drag Chain Inst)

- 25 °C - + 60 °C

Flammability Class (Cable Jacket)

CM (UL 1685)

Cable Characteristics

Exclusion of dangerous materials; Sunlight resistance: UL 1581 sec. 1200

Core Colors

white, blue, yellow, orange

RoHS Compliant

yes

Oil Resistance

UL OIL RES I

Note Derating

Notice derating

Protection Degree / IP Rating Note

** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.

Note

Do not connect or disconnect under load.

Note Derating

Notice derating

Protection Degree / IP Rating Note

** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.

Note

Do not connect or disconnect under load.
