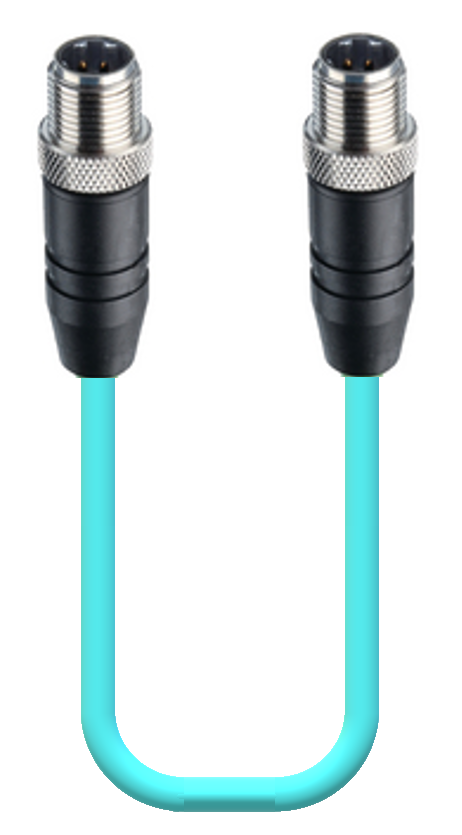

Data Connectors - 0985 YM57530 100

Fast Ethernet Cat5e, double-ended cord set, M12 male, straight, 4-pin, D-coding to a M12 male, straight, 4-pin, D-coding, 24 AWG TPE cable, stranded/shielded, 2 twisted bonded pairs with teal jacket

Availability:

Americas
Status:

Active

Quote

Specifications
Part Numbers
Resources
Where to buy

Specifications

Expand All

Face View Side 1

Product Family	Data Connectors
Connector Type	Cordset, double ended
Shielding Type	Shielded
Voltage Rating	60 V
Rated Impulse Voltage	1.5 kV
Operating Voltage	50 V AC / 60 V DC
Current Rating	4 A
Data Transmission Type	Fast Ethernet Cat5e
Data Transmission Rate	100 Mbit/s

Technical Data Side 1

Side 1 Product Sub Family	M12 Standard
Side 1 Type of Contact/Gender	Male
Connector Design	Straight
Attachment Type	Knurled Screw
Number of Pins	4
Coding, Side 1	D
Mating Cycles	≤ 100
Ambient Temperature (Operation)*	- 25 °C - + 75 °C
Protection Degree / IP Rating**	IP65, IP67
Design Standard	IEC 61076-2-101
Pollution Degree	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Overvoltage Category	III acc. to DIN EN 60664-1 (VDE 0110-1)
Contact Base Material	CuSn
Side 1 Contact Plating	Cu/Au
Contact Bearer Material	PBT
Contact Bearer Color	Black
Flammability Class (Contact Bearer)	UL 94 HB
Molded Body Material	TPU
Molded Body Color	Black
Flammability Class (Molded Body)	UL 94 HB
Attachment Material	CuZn
Attachment Plating	Nickel-plated
Shielding Material	CuZn, tin-plated
Fastening Torque (Attachment)	M 12x1: (50-60) Ncm, hand-tight

Cable Data

Cable Type	100
Cable Number	YM57530
Conductor Size	24 AWG
Number of Wires	2 Pair (bonded twisted pairs)
Minimal Bending Radius (Fixed Inst)	5 x D
Minimal Bending Radius (Flexible Inst)	10 x D
Cycles (Bending)	3
Cycles (Torsion)	˃ 5 M @ ± 360 °/1 m
Cable Jacket Material	TPE
Cable Jacket Color	Teal
Cable Diameter D	ø 7.62 mm
Wire Insulation Material	Polyolefin
Insulated Wire Diameter	ø 1.02 ± 0.05 mm
Overall Shield (Cable)	TC Braid 65%
Foil shield	Al Foil 100%
Ambient Temperature (Fixed Installation)	- 40 °C - + 75 °C
Ambient Temperature (Flex Installation)	- 25 °C - + 75 °C
Ambient Temperature (Drag Chain Inst)	- 25 °C - + 60 °C
UL Cable Type	AWM 20626, 80C 600 V
Cable Characteristics	NEMA WC-63.1 Category 5, ICEA 661, Category 5e Patch, TIA/EI-568-B.2, Category 5e, Indoor/Outdoor Yes, Oil Res
Core Colors	Bonded Twisted pairs: wh/or \| wh/gn

Technical Data Side 2

Side 2 Product Sub Family	M12 Standard
Side 2 Type of Contact/Gender	Male
Connector Design, Side 2	Straight
Attachment Type, Side 2	Knurled Screw
Number of Pins, Side 2	4
Coding, Side 2	D
Mating Cycles, Side 2	≤ 100
Ambient Temperature (Operation), Side 2*	- 25 °C - + 75 °C
Protection Degree / IP Rating, Side 2**	IP65, IP67
Design Standard, Side 2	IEC 61076-2-101
Pollution Degree, Side 2	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Overvoltage Category, Side 2	III acc. to DIN EN 60664-1 (VDE 0110-1)
Contact Base Material, Side 2	CuSn
Contact Plating, Side 2	Cu/Au
Contact Bearer Material, Side 2	PBT
Contact Bearer Color, Side 2	Black
Flammability Class (Contact Bearer), Side 2	UL 94 HB
Molded Body Material, Side 2	TPU
Molded Body Color, Side 2	Black
Flammability Class (Molded Body), Side 2	UL 94 HB
Attachment Material, Side 2	CuZn
Attachment Plating, Side 2	Nickel-plated
Shielding Material, Side 2	CuZn, tin-plated
Fastening Torque (Attachment), Side 2	M 12x1: (50-60) Ncm, hand-tight

Safety & Environmental Compliance

RoHS Compliant	Yes

Resistances

Oil Resistance	Yes

Notes

Note Derating	Notice derating

History

Update and Revision	Revision Number: 0.41 Revision Date: 02-03-2025

Information

Update and Revision	Revision Number: 0.41 Revision Date: 02-03-2025

Report An Error

Part Numbers

Item #	Item Description	Cable Length
900004138	0985 YM57530 100/1 M
900005233	0985 YM57530 100/0.15M	0.15 m
900004845	0985 YM57530 100/0.3M	0.3 m
900016222	0985 YM57530 100/0.5M	0.5 m
900004846	0985 YM57530 100/0.6M	0.6 m
900004138	0985 YM57530 100/1M	1 m
900004139	0985 YM57530 100/2M	2 m
900004431	0985 YM57530 100/3M	3 m
900004367	0985 YM57530 100/4M	4 m
900004140	0985 YM57530 100/5M	5 m
900004359	0985 YM57530 100/6M	6 m
900004360	0985 YM57530 100/7M	7 m
900004361	0985 YM57530 100/8M	8 m
900005202	0985 YM57530 100/9M	9 m
900004141	0985 YM57530 100/10M	10 m
900004362	0985 YM57530 100/12M	12 m
900004142	0985 YM57530 100/15M	15 m
900004143	0985 YM57530 100/20M	20 m
900004348	0985 YM57530 100/25M	25 m
900004144	0985 YM57530 100/30M	30 m
900004350	0985 YM57530 100/35M	35 m
900004349	0985 YM57530 100/40M	40 m
900004414	0985 YM57530 100/45M	45 m
900004364	0985 YM57530 100/50M	50 m
900004415	0985 YM57530 100/60M	60 m
900004365	0985 YM57530 100/70M	70 m
900016137	0985 YM57530 100/75M	75 m
