Fast Ethernet Connectors

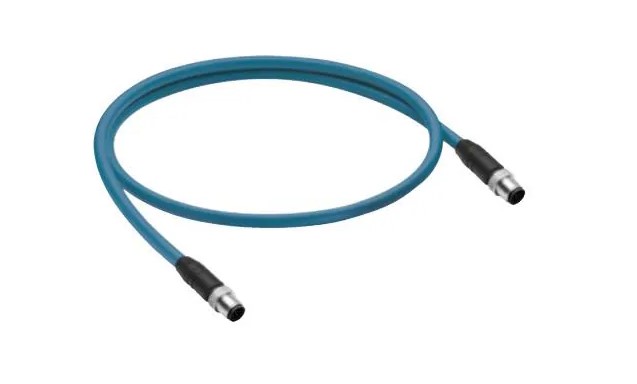

Fast Ethernet Cat 5e, high-flex, double-ended cord set, M12 male to M12 male, teal TPE jacket, 4-pin, 24 AWG, stranded/unshielded cross-over cable with 2 twisted bonded pairs.

Availability:

Global
Status:

Active

Quote

Specifications
Part Numbers
Resources
Where to buy

Specifications

Expand All

Face View Side 1

Product Family	Data Connectors
Connector Type	Cordset, double ended
Shielding Type	Unshielded
Voltage Rating	60 V
Rated Impulse Voltage	1.5 kV
Operating Voltage	250V
Current Rating	4 A
Data Transmission Type	Fast Ethernet Cat5e
Data Transmission Rate	100 Mbit/s

Technical Data Side 1

Side 1 Product Sub Family	M12 Standard
Side 1 Type of Contact/Gender	Pin Contact / Male
Connector Design	Straight
Attachment Type	Coupling Screw
Number of Pins	4
Coding, Side 1	D
Side 1 Contact Resistance	≤ 10 mOhm
Insulation Resistance	250V
Mating Cycles	≤ 100
Ambient Temperature (Operation)*	- 40 °C - + 75 °C
Protection Degree / IP Rating**	IP68
Side 1 Design Standard	IEC 61076-2-101
Side 1 Pollution Degree	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Clearance / Creepage Distance	EN 60664-1 (2008/01); VDE 0110-1
Overvoltage Category	III acc. to DIN EN 60664-1 (VDE 0110-1)
Contact Base Material	Copper and Tin (CuSn)
Side 1 Contact Plating	Copper over Gold (Cu/Au)
Contact Bearer Material	Thermoplastic Polyurethane (TPU)
Contact Bearer Color	Black
Flammability Class (Contact Bearer)	UL 94 HB
Molded Body Material	TPU
Molded Body Color	Black
Flammability Class (Molded Body)	UL 94 HB
Housing Color	black
Attachment Material	Brass (Cu/Zn)
Attachment Plating	Nickel (Ni)
Fastening Torque (Attachment)	M 12x1: (50-60) Ncm, hand-tight

Cable Data

Cable Number	806
Conductor Size	24 AWG
Number of Wires	4 (2 twisted pairs)
Minimal Bending Radius (Fixed Inst)	.250"
Cycles (Bending)	˃ 2 M
Conductor Material	Cu
Cable Jacket Material	Thermoplastic Elastomer (TPE)
Cable Jacket Color	Teal
Cable Diameter D	.275"
Wire Insulation Material	PO
Insulated Wire Diameter	.037"
Ambient Temperature (Fixed Installation)	-50°C + 75°C
UL Cable Type	Cat 5e
Flammability Class (Cable Jacket)	UL: CMR / CSA: CMG
Core Colors	White / Orange, White / Green, Orange, Green

Technical Data Side 2

Side 2 Product Sub Family	M12 Standard
Side 2 Type of Contact/Gender	Pin Contact / Male
Connector Design, Side 2	Straight
Attachment Type, Side 2	Coupling Screw
Number of Pins, Side 2	4
Coding, Side 2	D
Contact Resistance, Side 2	≤ 10 mOhm
Insulation Resistance, Side 2	˃ 10^9 Ohm
Mating Cycles, Side 2	≤ 100
Ambient Temperature (Operation), Side 2*	- 40 °C - + 75 °C
Protection Degree / IP Rating, Side 2**	IP68
Design Standard, Side 2	IEC 61076-2-101
Pollution Degree, Side 2	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Overvoltage Category, Side 2	III acc. to DIN EN 60664-1 (VDE 0110-1)
Contact Base Material, Side 2	Phosphorus / Copper and Tin (CuSn)
Contact Plating, Side 2	Copper over Gold (Cu/Au)
Contact Bearer Material, Side 2	Thermoplastic Polyurethane (TPU)
Contact Bearer Color, Side 2	Black
Flammability Class (Contact Bearer), Side 2	UL 94 HB
Molded Body Material, Side 2	Thermoplastic Polyurethane (TPU)
Molded Body Color, Side 2	Black
Flammability Class (Molded Body), Side 2	UL 94 HB
Attachment Material, Side 2	Brass (Cu/Zn)
Attachment Plating, Side 2	Nickel (Ni)
Fastening Torque (Attachment), Side 2	M 12x1: (50-60) Ncm, hand-tight

Safety & Environmental Compliance

RoHS Compliant	yes

Notes

Protection Degree / IP Rating Note	IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked
Note Derating	Notice derating

History

Update and Revision	Revision Number: 0.42 Revision Date: 07-28-2025

Information

Update and Revision	Revision Number: 0.42 Revision Date: 07-28-2025

Report An Error

Part Numbers

Item #	Item Description	Cable Length
900004841	0985 806 101/0.5M	0.5 m
900016125	0985 806 101/1M	1 m
900004068	0985 806 101/2M	2 m
900004246	0985 806 101/5M	5 m
900005277	0985 806 101/10M	10 m
900016017	0985 806 101/15M	15 m
