Data Connectors - RP12M-MSSV8X-0552

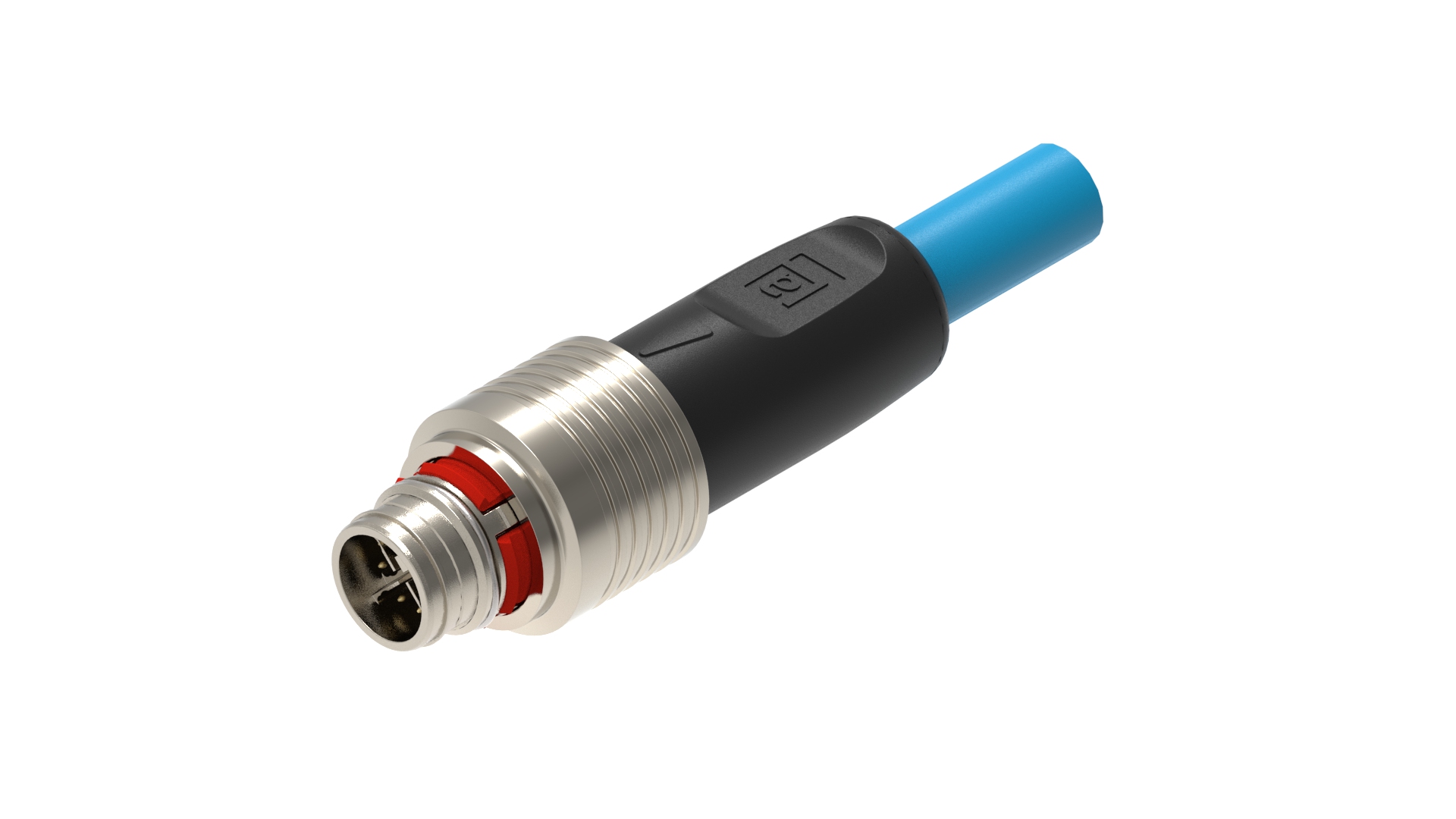

M12 pigtail, Push Pull acc. IEC 61076-2-010, Rolling Stock, CAT 7, EN45545, X-FRNC/LSNH blue cable, shielded, male, straight, X-coded, 8-Pin, 4x2x0.25mm², twisted pairs, PoE+, 10GBASE-T, 50 V AC / 60 V DC, 0.5 A, - 40 °C - + 85 °C (operating temp.), IP65, IP67

Availability:

Global
Status:

Active

Quote

Specifications
Part Numbers
Resources
Where to buy

Specifications

Expand All

Face View

Product Family	Data Connectors
Side 1 Product Sub Family	M12 Railway push pull
Connector Type	Cordset, single ended
Side 1 Type of Contact/Gender	Male
Connector Design	Straight
Number of Pins	8
Coding, Side 1	X
Shielding Type	Shielded
Attachment Type	Snap Ring
Voltage Rating	60 V
Rated Impulse Voltage	0.8 kV
Operating Voltage	50 V AC / 60 V DC
Current Rating	0.5 A
Data Transmission Type	Gigabit Ethernet Cat7
Data Transmission Rate	10 Gbit/s
Side 1 Contact Resistance	≤ 10 mOhm
Insulation Resistance	˃ 10^9 Ohm
Mating Cycles	≤ 100
Ambient Temperature (Operation)*	- 40 °C - + 85 °C
Protection Degree / IP Rating**	IP65, IP67
Side 1 Design Standard	IEC 61076-2-109/-010, DIN EN 50467
Side 1 Pollution Degree	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Overvoltage Category	II acc. to DIN EN 60664-1 (VDE 0110-1)

Materials

Contact Base Material	CuZn
Side 1 Contact Plating	Cu/Au
Contact Bearer Material	PA
Contact Bearer Color	Black
Flammability Class (Contact Bearer)	UL 94 V-0
Molded Body Material	PA
Molded Body Color	Black
Flammability Class (Molded Body)	UL 94 V-0
Attachment Material	PA
Attachment Plating	Not Available
Shielding Material	GD-Zn, nickel-plated

Circuitry

Fastening Torque (Attachment)	PushPull

Cable Data

Cable Number	552
Conductor Size	4x2x0.25 mm²
Number of Wires	8
Minimal Bending Radius (Fixed Inst)	˃ 4 x D
Conductor Material	Cu
Cable Jacket Material	X-FRNC/LSNH
Cable Jacket Color	blue
Cable Diameter D	ø 8.1 ± 0.3 mm
Wire Insulation Material	E-beam X-linked Foam-skin polyethylene
Insulated Wire Diameter	max. ø 1.60 mm
Overall Shield (Cable)	Cu-ETP1 tinned
Foil shield	AL-polyester foil
Ambient Temperature (Fixed Installation)	- 40 °C - + 90 °C
Ambient Temperature (Flex Installation)	-5 °C - + 50 °C
Flammability Class (Cable Jacket)	IEC 60332-1-2, EN 50305 (9.1.1), IEC 60332-3-25, DIN 5510-2 protection level 1 to 4, EN 45545-2: HL1-HL3
Core Colors	Twisted pairs: white & blue, white & orange, white & green, white & brown

Safety & Environmental Compliance

RoHS Compliant	yes

Resistances

Halogenfree	IEC 60754-1, EN 50267-1-2
Oil Resistance	IEC 60811-2-1

Notes

Note Derating	* Notice derating
Protection Degree / IP Rating Note	** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.

Information

Note Derating	* Notice derating
Protection Degree / IP Rating Note	** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
