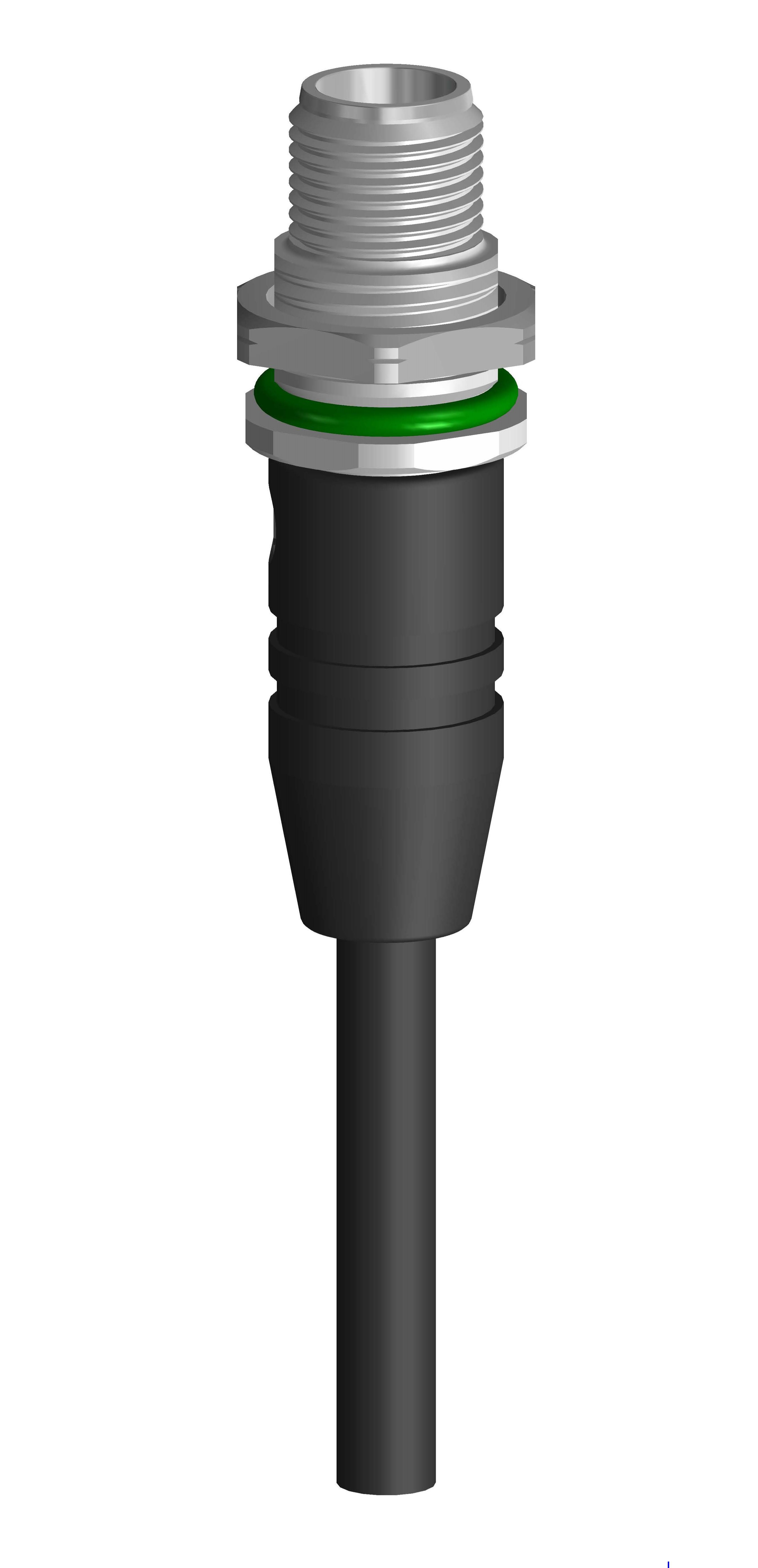

Gigabit Ethernet Cat6A Data Receptacle Connector: Male, rear mount, M12 - mating side, cable - connecting side, 8-pin, X-coded, shielded, metallic housing, 50 V AC / 60 V DC, 0.5 A; PUR black cable, 8-wires, 4x2x0.14mm2

Availability:

Global
Status:

Active

Quote

Specifications
Part Numbers
Resources
Where to buy

Specifications

Expand All

Information

Face View

Pin 1	Pin 2	Pin 3	Pin 4	Pin 5	Pin 6	Pin 7	Pin 8
white (orange)	orange	white (green)	green	white (brown)	brown	white (blue)	blue

Product Family	Data Connectors
Side 1 Product Sub Family	M12 Standard
Mating Side	M12
Connecting Side	Cable
Connector Type	Receptacle
Side 1 Type of Contact/Gender	Male
Connector Design	Rear Mount
Number of Pins	8
Coding, Side 1	X
Shielding Type	Shielded
Attachment Type	Screw-Locking
Voltage Rating	60 V
Rated Impulse Voltage	1.5 kV
Operating Voltage	50 V AC/60 V DC
Current Rating	0.5 A
Rated Current (UL)*	0.5 A
Data Transmission Rate	Gigabit Ethernet Cat6A
Side 1 Contact Resistance	≤ 10 mOhm
Insulation Resistance	˃ 10^ 8 Ohm
Mating Cycles	≤ 100
Thread Size	PG9
Thread Material	CuZn
Thread Plating	Nickel-plated
Ambient Temperature (Operation)*	- 25 °C - + 85 °C
Protection Degree / IP Rating**	IP 67
Side 1 Design Standard	IEC 61076-2-109

Materials

Side 1 Contact Plating	Cu/Au
Molded Body Material	PA
Molded Body Color	Black
Housing Material	CuZn
Housing Plating	Nickel-plated
O-Ring Material	FKM

Cable Data

Cable Number	478
Conductor Size	4x2x0.14 mm²
Number of Wires	8
Minimal Bending Radius (Fixed Inst)	˃ 30 mm
Minimal Bending Radius (Flexible Inst)	˃ 65 mm
Cycles (Bending)	˃ 0.2 M
Conductor Material	Cu
Cable Jacket Material	PUR
Cable Jacket Color	black
Cable Diameter D	ø 6.8 ± 0.3 mm
Wire Insulation Material	PE
Insulated Wire Diameter	ø 1.05 ± 0.05 mm
Overall Shield (Cable)	Cu-ETP1 tinned
Foil shield	Al-PT Foil
Ambient Temperature (Fixed Installation)	- 40 °C - + 80 °C
Ambient Temperature (Flex Installation)	0°C - + 50 °C
UL Cable Type	AWM: 21327
Core Colors	Twisted pairs: white & blue, white & orange, white & green, white & brown

Safety & Environmental Compliance

RoHS Compliant	yes

Notes

Note Derating	Notice derating
Protection Degree / IP Rating Note	** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
Note	The receptacle connector is constructively intended for usage in IP67-products. To realise this protection class, the estimated location has to be designed accordingly. Further details see IEC 61076-2-109.

Information

Note Derating	Notice derating
Protection Degree / IP Rating Note	** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
Note	The receptacle connector is constructively intended for usage in IP67-products. To realise this protection class, the estimated location has to be designed accordingly. Further details see IEC 61076-2-109.
