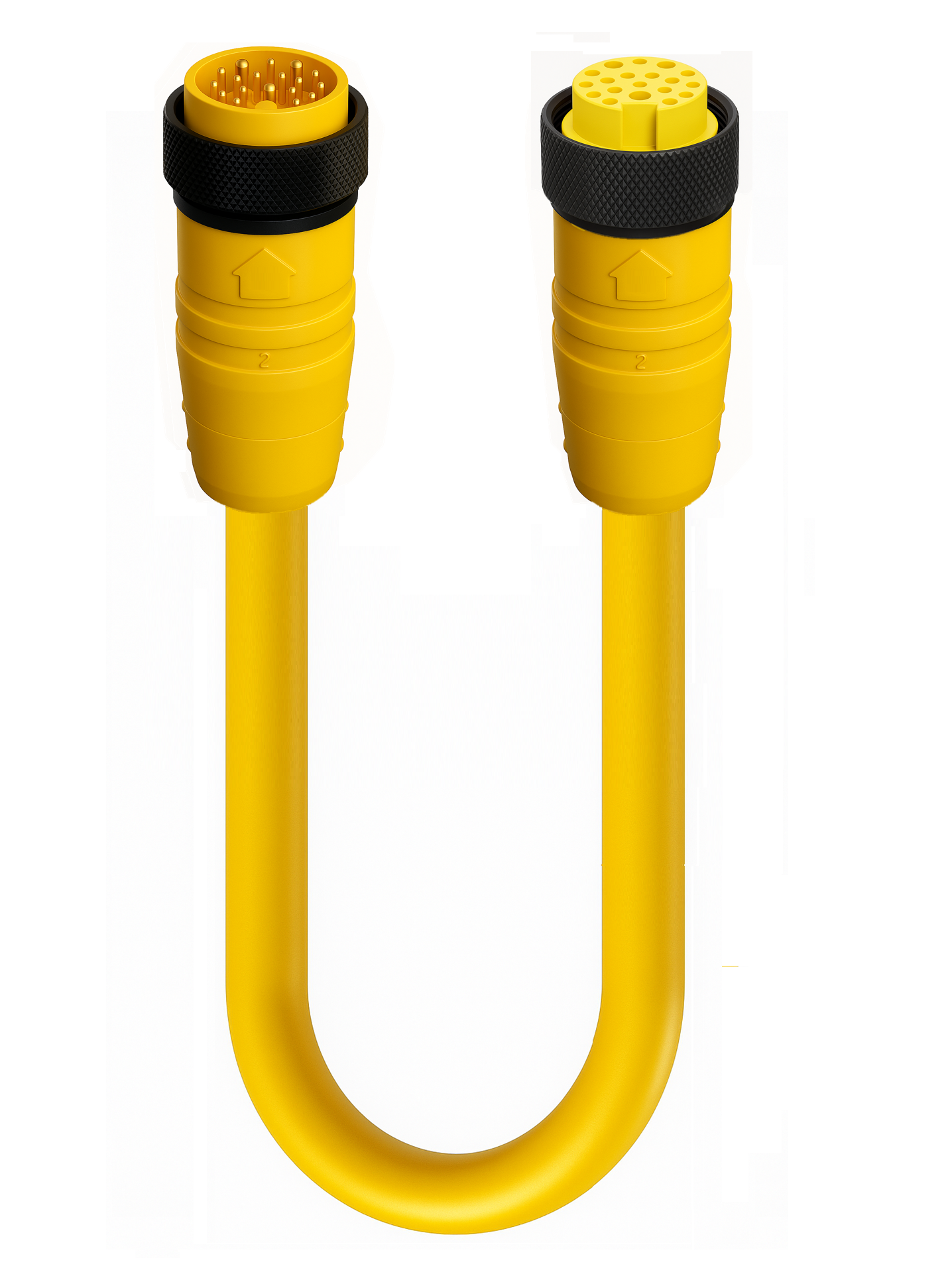

7/8", 1", 1 1/8" Series - RSRK 1901M-669

Specifications

Pin 1	Pin 2	Pin 3	Pin 4	Pin 5	Pin 6	Pin 7	Pin 8	Pin 9	Pin 10	Pin 11	Pin 12	Pin 13	Pin 14	Pin 15	Pin 16	Pin 17	Pin 18	Pin 19
black 1	black 2	black 3	black 4	black 5	black 6	black 7	black 8	black 9	black 10	black 11	green-yellow	black 13	black 14	black 15	black 16	black 17	black 18	black 19

Pin 1	Pin 2	Pin 3	Pin 4	Pin 5	Pin 6	Pin 7	Pin 8	Pin 9	Pin 10	Pin 11	Pin 12	Pin 13	Pin 14	Pin 15	Pin 16	Pin 17	Pin 18	Pin 19
black 1	black 2	black 3	black 4	black 5	black 6	black 7	black 8	black 9	black 10	black 11	green-yellow	black 13	black 14	black 15	black 16	black 17	black 18	black 19

Side 1 Product Sub Family	1-1/8 (9; 10; 12; 19 contacts)"
Side 1 Type of Contact/Gender	Pin Contacts / Male
Connector Design	1-1/8" \| Male \| 19 Pole \| 0°
Attachment Type	Female Thread (coupling nut)
Number of Pins	19 (18+PE)
Coding, Side 1	A
Mating Cycles	≤ 50
Ambient Temperature (Operation)*	- 40 °C to + 90°C
Side 1 Pollution Degree	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Side 1 Contact Plating	Gold / Silver alloy (Au / Ag)
Contact Bearer Color	Yellow
Flammability Class (Contact Bearer)	UL 94 HB
Molded Body Material	Thermoplastic polyurethane (TPU)
Molded Body Color	Yellow
Flammability Class (Molded Body)	UL 94 HB
Attachment Material	Aluminum (Al)
Attachment Plating	Anodized; Black
Fastening Torque (Attachment)	1-1/8'': 70 Ncm, hand-tight
Accessories to Order Separately	500000358 - RS-TU thread adaptor

Cable Number	669
Conductor Size	18 AWG
Number of Wires	19
Minimal Bending Radius (Flexible Inst)	˃ 10 x D
Cycles (Bending)	˃ 5 Mio.
Conductor Material	Cu
Cable Jacket Material	Thermoplastic Elastomer (TPE)
Cable Jacket Color	Yellow
Cable Diameter D	Ø 12.4 mm
Wire Insulation Material	Polyvinyl Chloride w/ Nylon (PVC-Nylon)
Insulated Wire Diameter	Ø 2.00 mm
Ambient Temperature (Fixed Installation)	- 40 °C to + 90°C
UL Cable Type	AWM 20233
Flammability Class (Cable Jacket)	FT1
Cable Characteristics	Flexibility: Excellent \| Abrasion Resistance: Excellent \| Oil & Chemical Resistance: Excellent \| UV Resistance: Good to excellent \| Low Temp Performance: Excellent (flexible to -25°C) \| Flame Retardance: Varies \| Halogen-Free: Yes \| Mechanical Durability: High (resists impact; tear; and flex) \| Environmental Suitability: Outdoor; oily; wet; or rough environments

Side 2 Product Sub Family	1-1/8" (9; 10; 12; 19 contacts)
Side 2 Type of Contact/Gender	Socket Contacts / Female
Connector Design, Side 2	1-1/8" \| Female \| 19 Pole \| 0°
Attachment Type, Side 2	Female Thread (coupling nut)
Number of Pins, Side 2	19 (18+PE)
Coding, Side 2	A
Mating Cycles, Side 2	≤ 50
Ambient Temperature (Operation), Side 2*	- 40 °C to + 90°C
Pollution Degree, Side 2	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Contact Base Material, Side 2	Brass (CuZn)
Contact Plating, Side 2	Gold / Silver alloy (Au / Ag)
Contact Bearer Material, Side 2	Thermoplastic polyurethane (TPU)
Contact Bearer Color, Side 2	Yellow
Flammability Class (Contact Bearer), Side 2	UL 94 HB
Molded Body Material, Side 2	Thermoplastic polyurethane (TPU)
Molded Body Color, Side 2	Yellow
Flammability Class (Molded Body), Side 2	UL 94 HB
Attachment Material, Side 2	Aluminum (Al)
Attachment Plating, Side 2	Anodized; Black
Fastening Torque (Attachment), Side 2	1-1/8'': 70 Ncm, hand-tight
Note, Side 2	Do not connect / disconnect under load.

UL-File	E315587
UL	UL 2238; cURus

RoHS Compliant	Yes

Protection Degree / IP Rating Note	IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked
Note Derating	* Notice derating

Protection Degree / IP Rating Note	IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked
Note Derating	* Notice derating
