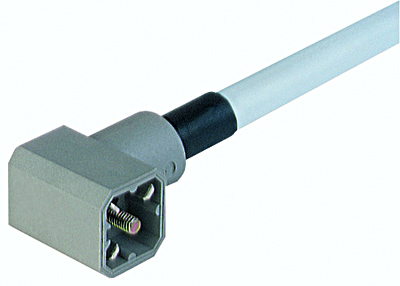

Power Connectors - G 3 KW 3 M

G Type - Male Angled | #Contacts: 3 | 50 V / 4 A |Cable: Grey (PVC); 3x0.25 mm²; IEC

Specifications

Pin 1	Pin 2	Pin 3
white	brown	green

Product Family	Industrial Connectors
Side 1 Product Sub Family	G Series
Connector Type	Cordset, single ended
Side 1 Type of Contact/Gender	Pin Contact / Male
Connector Design	Angled (90°) Body
Number of Pins	3
Shielding Type	Unshielded
Attachment Type	Central Screw
Voltage Rating	50 V
Rated Impulse Voltage	1.5 kV
Operating Voltage	50 V AC/DC
Current Rating	4 A
Side 1 Contact Resistance	≤ 10 mOhm
Mating Cycles	≤ 50
Type of Connection	Solder
Cross Section	0.25 mm²
Ambient Temperature (Operation)*	-40°C to +90°C
Protection Degree / IP Rating**	IP65
Side 1 Design Standard	DIN EN 61984 (VDE 0627)
Side 1 Pollution Degree	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Clearance / Creepage Distance	DIN EN 60664-1 (2008/01); VDE 0110-1

Contact Base Material	Brass (CuZn)
Side 1 Contact Plating	Copper-Tin Alloy (Cu/Sn)
Contact Bearer Material	PA GF
Contact Bearer Color	Grey
Flammability Class (Contact Bearer)	UL 94 HB
Molded Body Material	Polyvinyl Chloride (PVC)
Molded Body Color	Grey
Flammability Class (Molded Body)	UL 94 HB
Attachment Material	4.8 , Fe/Zn B

Fastening Torque (Attachment)	M 3: (50-60) Ncm
Accessories to Order Separately	Central Screw Stainless Steel: 732750003

Cable Number	LF-YY 3X0.25
Conductor Size	0.25 mm²
Number of Wires	3
Minimal Bending Radius (Fixed Inst)	˃ 5 x D
Minimal Bending Radius (Flexible Inst)	˃ 10 x D
Conductor Material	Cu
Cable Jacket Material	Polyvinyl Chloride (PVC)
Cable Jacket Color	Grey
Cable Diameter D	ø 4.35 mm
Wire Insulation Material	Polyvinyl Chloride (PVC)
Ambient Temperature (Fixed Installation)	-25 °C to +70 °C
Ambient Temperature (Flex Installation)	-25 °C to +70 °C

VDE	VDE-Reg.-Nr.: 3113

RoHS Compliant	Compliant

Note Derating	Notice derating
Protection Degree / IP Rating Note	IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked
Note	Do not connect or disconnect under load.

Note Derating	Notice derating
Protection Degree / IP Rating Note	IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked
Note	Do not connect or disconnect under load.
