G Series - RKWT 5-MF293

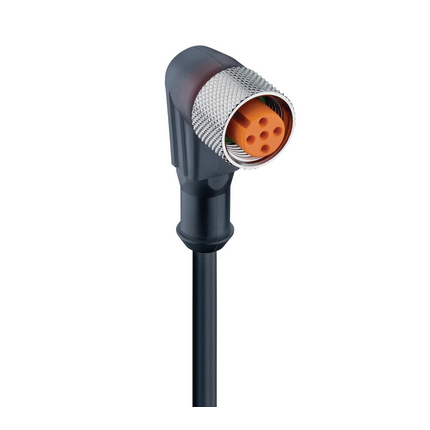

M12 Standard Sensor/Actuator Single-Ended Cordset: Female, angled, 5-pin, A-coded, translucent body, 50 V AC / 60 V DC, 4 A; PVC/PU black cable, 5-wires, 0.34 mm²

Availability:

Asia Pacific
Status:

Active

Quote

Specifications
Resources
Where to buy

Specifications

Expand All

Information

Face View

Pin 1	Pin 2	Pin 3	Pin 4	Pin 5
Brown	White	Blue	Black	Grey

Product Family	Data Connectors
Side 1 Product Sub Family	M12 Standard
Connector Type	Cordset, single ended
Side 1 Type of Contact/Gender	Female
Connector Design	Angled
Number of Pins	5
Coding, Side 1	A
Shielding Type	Unshielded
Attachment Type	Coupling Nut
Voltage Rating	60 V
Operating Voltage	50 V AC / 60 V DC
Current Rating	4 A
Side 1 Contact Resistance	≤ 10 mOhm
Insulation Resistance	˃ 10^9 Ohm
Mating Cycles	≤ 100
Ambient Temperature (Operation)*	- 25 °C - + 80 °C
Protection Degree / IP Rating**	IP67
Side 1 Design Standard	IEC 61076-2-101
Side 1 Pollution Degree	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Overvoltage Category	III acc. to DIN EN 60664-1 (VDE 0110-1)

Materials

Contact Base Material	CuSn
Side 1 Contact Plating	Cu/Au
Contact Bearer Material	TPU
Contact Bearer Color	Orange
Flammability Class (Contact Bearer)	UL 94 HB
Molded Body Material	TPU
Molded Body Color	Translucent
Flammability Class (Molded Body)	UL 94 HB
Attachment Material	CuZn
Attachment Plating	Nickel-plated
O-Ring Material	FKM, Green

Circuitry

Fastening Torque (Attachment)	M 12x1: (50-60) Ncm, hand-tight

Cable Data

Cable Number	MF293
Conductor Size	0.34 mm²
Number of Wires	5
Conductor Material	Cu
Cable Jacket Material	Special compound Polyurethane based
Cable Jacket Color	Black
Cable Diameter D	ø 5.7 ± 0.20 mm
Wire Insulation Material	PVC
Insulated Wire Diameter	1.30 mm
Ambient Temperature (Fixed Installation)	-30 °C - +80 °C
Flammability Class (Cable Jacket)	IEC60332-1/FT-2

Safety & Environmental Compliance

RoHS Compliant	Yes

Notes

Note Derating	Notice derating
Protection Degree / IP Rating Note	** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.

Information

Note Derating	Notice derating
Protection Degree / IP Rating Note	** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
