GO-Series Power Field Attachable Connector: Female, angled, 6-pin (5+PE), black body, solder type; 230 V AC/DC, 6 A
|
Product Family |
Power Connector |
|---|---|
|
Product Sub Family |
GO Series |
|
Connector Type |
Field Attachable |
|
Type of Contact / Gender |
female |
|
Connector Design |
angled |
|
Number of Pins |
5+PE |
|
Shielding |
Unshielded |
|
Attachment Type |
Central Screw |
|
Rated Voltage |
250 V AC/DC |
|
Rated Impulse Voltage |
2.5 kV |
|
Operating Voltage |
230 V AC/DC |
|
Rated Current* |
6 A |
|
Contact Resistance |
≤ 10 mOhm |
|
Mating Cycles |
≤ 50 |
|
Type of Connection |
solder |
|
Cable Gland |
PG 7 |
|
Conductor Cross Section |
0.14 mm² to 0.50 mm² |
|
Strain-Relief |
clamping cage |
|
Suitable Cables |
Ø 4.5 mm - Ø 7.5 mm |
|
Ambient Temperature (Operation)* |
-40°C to +90°C |
|
Protection Degree / IP Rating** |
IP65 |
|
Design Standard |
DIN EN 61984 (VDE 0627) |
|
Pollution Degree |
3 acc. to DIN EN 60664-1 (VDE 0110-1) |
|
Clearance / Creepage Distance |
DIN EN 60664-1 (2008/01); VDE 0110-1 |
|
Contact Base Material |
CuZn |
|---|---|
|
Contact Plating |
Cu/Sn |
|
Contact Bearer Material |
PA GF |
|
Contact Bearer Color |
black |
|
Flammability Class (Contact Bearer) |
UL 94 V-0 |
|
Housing Material |
PA GF |
|
Housing Color |
black |
|
Flammability Class (Housing) |
UL 94 V-0 |
|
Cable Gland Material |
PA GF |
|
Cable Gland Color |
black |
|
Flammability Class (Cable Gland) |
UL 94 V-0 |
|
Attachment Material |
4.8 , Fe/Zn B |
|
Gasket Material |
CR/ Neoprene |
|
Fastening Torque (Cable Gland) |
PG 7:(150-250) Ncm |
|---|---|
|
Fastening Torque (Attachment) |
M 3: (50-60) Ncm |
|
Mating Connectors / Fitting to |
GO 51 FAV M, GO 51 UM…. |
|
Accessories to Order Separately |
Central Screw Stainless Steel: 732750003 |
|
VDE |
VDE-Reg.-Nr.: D182 |
|---|
|
RoHS Compliant |
yes |
|---|
|
Note Derating |
Notice derating |
|---|---|
|
Protection Degree / IP Rating Note |
** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
|
Note |
Do not connect or disconnect under load. |
| Item # | Item Description |
|---|---|

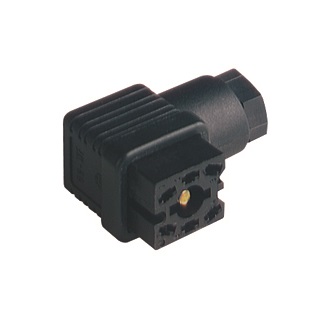

| 932351200 | GO 51 WF |
