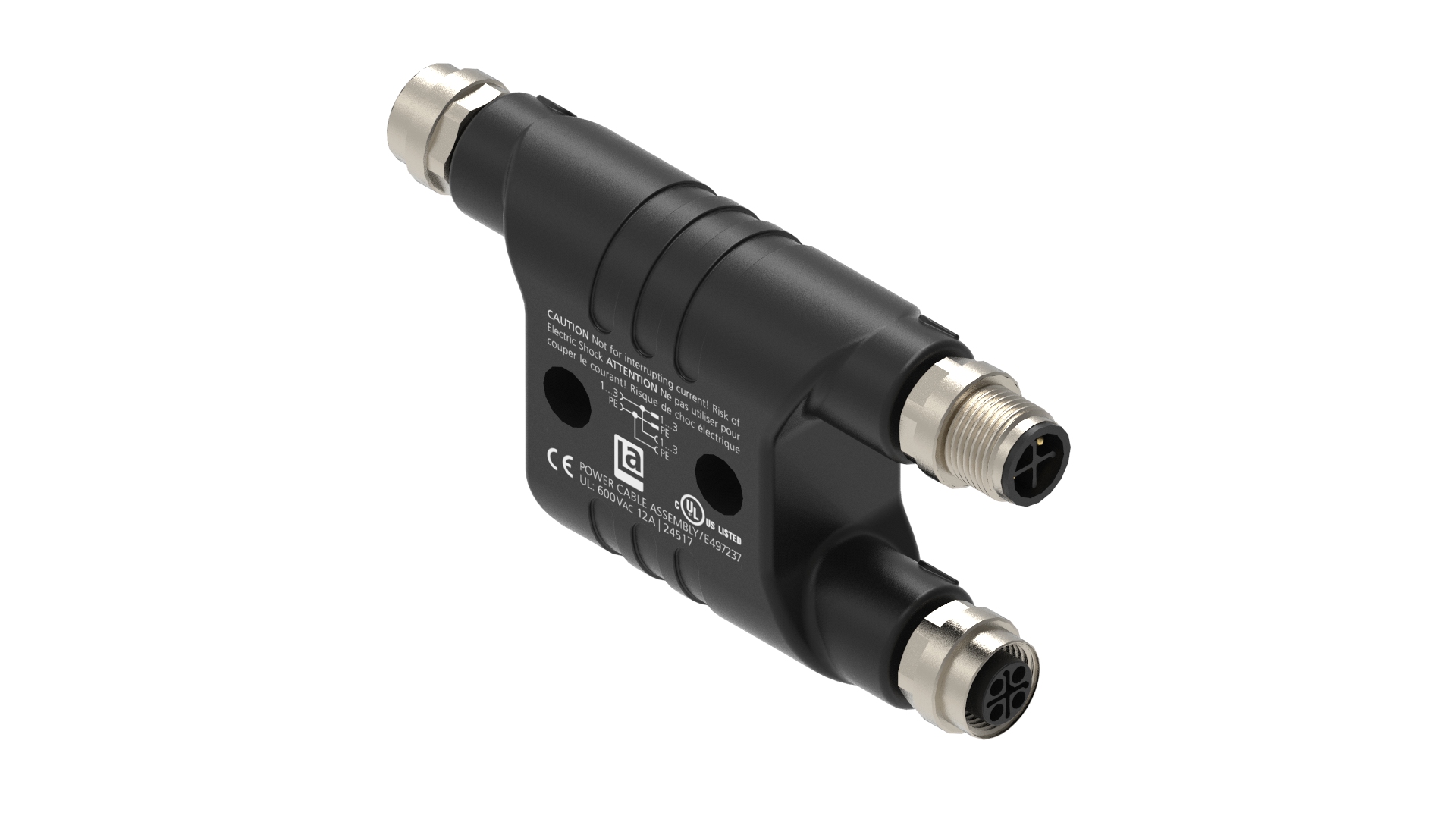

Product Number: MPS-8U-RST 4S-2RKT 4S

M12 Power | h-splitter | Male → 2 x Female, 4-pin S-coded, 630 V / 12 A

M12 Power | h-splitter | input: 1 x Male, output: 2 x Female, 4-pin S-coded, 630 V / 12 A

  • Availability:
    Global
  • Status:
    Active
MPS-8U-RST 4S-2RKT 4S
5 of 5
  • Where to buy

Specifications

Expand All

Product Family

Power Connector

Connector Type

Molded Splitter

Shielding Type

Unshielded

Voltage Rating

630 V

Rated Voltage (UL)

600 V

Rated Impulse Voltage

6.0 kV

Operating Voltage

600 V AC/DC

Current Rating

12 A

Side 1 Product Sub Family

M12 Power

Side 1 Type of Contact/Gender

Pin Contact / Male

Connector Design

Input | M12 Male | h shape

Attachment Type

Coupling Screw

Number of Pins

4 (3+PE)

Coding, Side 1

S

Insulation Resistance

˃ 10^8 Ohm

Mating Cycles

≤ 100

Ambient Temperature (Operation)*

-30 °C to +90 °C, notice derating

Protection Degree / IP Rating**

IP65, IP67

Side 1 Design Standard

IEC 61076-2-111

Side 1 Pollution Degree

3 acc. to IEC 60664-1

Clearance / Creepage Distance

IEC 60664-1 (2020-05)

Overvoltage Category

III acc. to IEC 60664-1

Contact Base Material

Copper Alloy (CuZn)

Side 1 Contact Plating

Gold over Copper (Cu/Au)

Contact Bearer Material

Polyamide (PA)

Contact Bearer Color

Black

Flammability Class (Contact Bearer)

UL 94 HB

Molded Body Material

Thermoplastic Polyurethane (TPU)

Molded Body Color

Black

Flammability Class (Molded Body)

UL 94 HB

Attachment Material

Copper Alloy (CuZn)

Attachment Plating

Nickel (Ni)

O-Ring Material

Fluoroelastomer (FPM/FKM)

Fastening Torque (Attachment)

M 12x1: (50-60) Ncm, hand-tight

Note

1. Do not connect or disconnect under load.

Side 2 Product Sub Family

M12 Power

Side 2 Type of Contact/Gender

Socket Contact / Female

Connector Design, Side 2

Output | 2 x M12 Female

Attachment Type, Side 2

Coupling Nut

Number of Pins, Side 2

4 (3+PE)

Coding, Side 2

S

Mating Cycles, Side 2

≤ 100

Protection Degree / IP Rating, Side 2**

IP65, IP67

Clearance / Creepage Distance, Side 2

IEC 60664-1 (2020-05)

Overvoltage Category, Side 2

III acc. to IEC 60664-1

Contact Base Material, Side 2

Copper Alloy (CuZn)

Contact Plating, Side 2

Gold over Copper (Cu/Au)

Contact Bearer Material, Side 2

Polyamide (PA)

Contact Bearer Color, Side 2

Black

Flammability Class (Contact Bearer), Side 2

UL 94 HB

Flammability Class (Molded Body), Side 2

UL 94 HB

Attachment Material, Side 2

Copper Alloy (CuZn)

Attachment Plating, Side 2

Nickel (Ni)

Fastening Torque (Attachment), Side 2

M 12x1: (50-60) Ncm, hand-tight

Coding, Side 3

S

Contact Base Material, Side 3

Copper Alloy (CuZn)

Contact Bearer Color, Side 3

Black

Contact Bearer Material, Side 3

Polyamide (PA)

Contact Plating, Side 3

Gold over Copper (Cu/Au)

Number of Pins, Side 3

4 (3+PE)

Protection Degree / IP Rating (IEC 60529), Side 3

IP65, IP67, IP68

Rated Current*, Side 3

12 A

Rated Voltage, Side 3

630 V

Rated Voltage (UL), Side 3

600 VAC

Type of Contact / Gender, Side 3

Socket Contact / Female

Product Sub Family, Side 4

M12 Power

Protection Degree / IP Rating (IEC 60529), Side 4

IP65, IP67, IP68

Rated Current*, Side 4

12 A

UL-File

E497237

UL

UL 2237; cULus

RoHS Compliant

Yes

Protection Degree / IP Rating Note

IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked

Note Derating

* Notice derating

Protection Degree / IP Rating Note

IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked

Note Derating

* Notice derating
