Product Number: MPS-TU-RST 4T-2RKT 4T

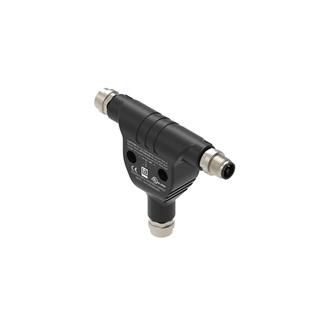

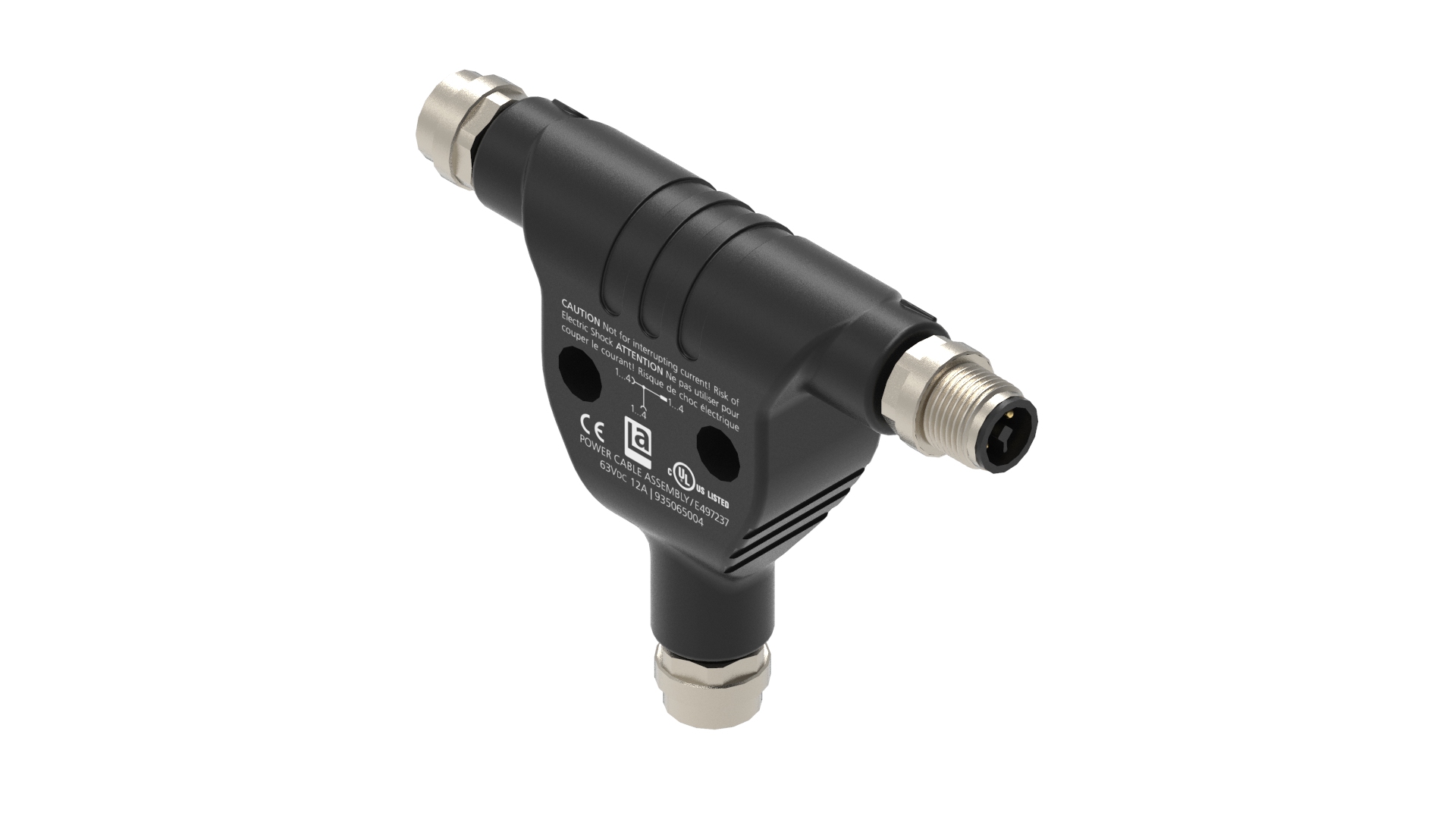

M12 Power T-splitter: input: male, 4 poles, T-coded; output: 1-2, female, 4 poles, T-coded
M12 Power T-splitter: male, straight, 4 poles, T-coded, M12, female, straight, 4 poles, T-coded, M12, female, straight, 4 poles, T-coded
-
Availability:
Global
-
Global inventory:
Available
Specifications
Face View Side 1
|
Product Family |
Power Connector |
|---|---|
|
Connector Type |
Molded Splitter |
|
Rated Voltage |
63 VDC |
|
Rated Current* |
12 A |
Technical Data Side 1
|
Product Sub Family |
M12 Power |
|---|---|
|
Type of Contact / Gender |
male, M12 |
|
Connector Design |
T shape |
|
Attachment Type |
Coupling Nut |
|
Number of Pins |
4 |
|
Coding |
T |
|
Insulation Resistance |
≥10^8 Ohm |
|
Mating Cycles |
|
|
Ambient Temperature (Operation)* |
-30°C to +90°C, notice derating |
|
Design Standard |
IEC 61076-2-111 |
|
Pollution Degree |
3 acc. to DIN EN 60664-1 (VDE 0110-1) |
|
Contact Base Material |
CuZn |
|
Contact Plating |
Cu/Au |
|
Contact Bearer Material |
PA |
|
Contact Bearer Color |
black |
|
Molded Body Material |
TPU |
|
Molded Body Color |
black |
|
Attachment Material |
CuZn |
|
Attachment Plating |
Cu/Ni |
|
O-Ring Material |
FPM/FKM |
Cable Data
|
Ambient Temperature (Fixed Installation) |
-30°C to +90°C |
|---|
Technical Data Side 2
|
Product Sub Family, Side 2 |
M12 Power |
|---|---|
|
Type of Contact / Gender, Side 2 |
female, M12 |
|
Number of Pins, Side 2 |
4 |
|
Coding, Side 2 |
T |
|
Contact Base Material, Side 2 |
CuZn |
|
Contact Plating, Side 2 |
Cu/Au |
|
Contact Bearer Material, Side 2 |
PA |
|
Contact Bearer Color, Side 2 |
black |
|
Attachment Material, Side 2 |
CuZn |
Technical Data Side 3
|
Coding, Side 3 |
T |
|---|---|
|
Contact Base Material, Side 3 |
CuZn |
|
Contact Bearer Color, Side 3 |
black |
|
Contact Bearer Material, Side 3 |
PA |
|
Contact Plating, Side 3 |
Cu/Au |
|
Number of Pins, Side 3 |
4 |
|
Protection Degree / IP Rating (IEC 60529), Side 3 |
IP65, IP67, IP68 |
|
Rated Current*, Side 3 |
12 A |
|
Rated Voltage, Side 3 |
63 VDC |
|
Type of Contact / Gender, Side 3 |
female, M12 |
Technical Data Side 4
|
Product Sub Family, Side 4 |
M12 Power |
|---|---|
|
Protection Degree / IP Rating (IEC 60529), Side 4 |
IP65, IP67, IP68 |
|
Rated Current*, Side 4 |
12 A |
Approvals
|
UL-File |
E497237 |
|---|---|
|
UL |
cULus |
Safety & Environmental Compliance
|
RoHS Compliant |
yes |
|---|
Notes
|
Protection Degree / IP Rating Note |
** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
|---|---|
|
Note Derating |
* Notice derating |
Information
|
Protection Degree / IP Rating Note |
** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
|---|---|
|
Note Derating |
* Notice derating |
Part Numbers
| Item # | Item Description |
|---|---|
| 935065004 | MPS-TU-RST 4T-2RKT 4T |
