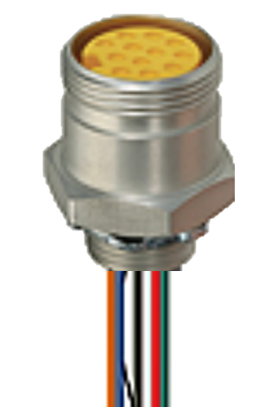

Mini Power Series - RKF 90M-623

Specifications

Pin 1	Pin 2	Pin 3	Pin 4	Pin 5	Pin 6	Pin 7	Pin 8	Pin 9
orange	blue	red/black	green/black	white	red	green	white/black	black

Product Family	Power Connector
Side 1 Product Sub Family	1-1/8" (9, 10 ,12, 19 contacts)
Connector Type	Receptacle
Connector Sub Type	Receptacle; Female
Side 1 Type of Contact/Gender	Socket Contact / Female
Connector Design	1-1/8" \| Female \| 9 Pole \| Front Mount
Number of Pins	9
Coding, Side 1	A
Shielding Type	Unshielded
Attachment Type	Fixed, External Thread
Voltage Rating	600 V
Rated Voltage (UL)	600 V
Operating Voltage	540 V AC/DC
Current Rating	7 A
Rated Current (UL)*	Power 7 A \| Signal 7 A
Side 1 Contact Resistance	≤ 10 mOhm
Insulation Resistance	˃ 10^9 Ohm
Mating Cycles	≤ 100
Thread Size	1/2" NPTF
Ambient Temperature (Operation)*	- 40 °C to + 90 °C
Protection Degree / IP Rating**	IP65, IP67
Side 1 Pollution Degree	3 acc. to DIN EN 60664-1 (VDE 0110-1)

Contact Base Material	CuZn
Side 1 Contact Plating	Copper-Silver-Gold-Alloy (Cu/Ag/Au)
Contact Bearer Material	TPU
Contact Bearer Color	Yellow
Flammability Class (Contact Bearer)	UL 94 HB
Potted	Yes
Housing Material	Aluminum (Al)
Housing Plating	Anodized with clear finish
Housing Color	Silver
Threaded Ring Material	Steal
O-Ring Material	FKM, panel side
Attachment Type, Side 2	1/2-14 NPT, Steel, Lock Nut
Gasket Material	Fluoroelastomer (FKM)

Fastening Torque (Attachment)	1-1/8 \| 70 Ncm, hand-tight"

Conductor Size	16 AWG
Number of Wires	9
Minimal Bending Radius (Fixed Inst)	˃ 5 x D
Minimal Bending Radius (Flexible Inst)	˃ 10 x D
Conductor Material	Cu
Wire Insulation Material	Polyvinyl Chloride (PVC)
Insulated Wire Diameter	Ø 3.07 mm [ 0.120" ]
UL Cable Type	UL: 1015/1230
Flammability Class (Cable Jacket)	VW-1

UL-File	E315587
UL	UL 2238; cURus

REACH	Compliant
RoHS Compliant	Yes

Halogenfree	No
Oil Resistance	Yes
