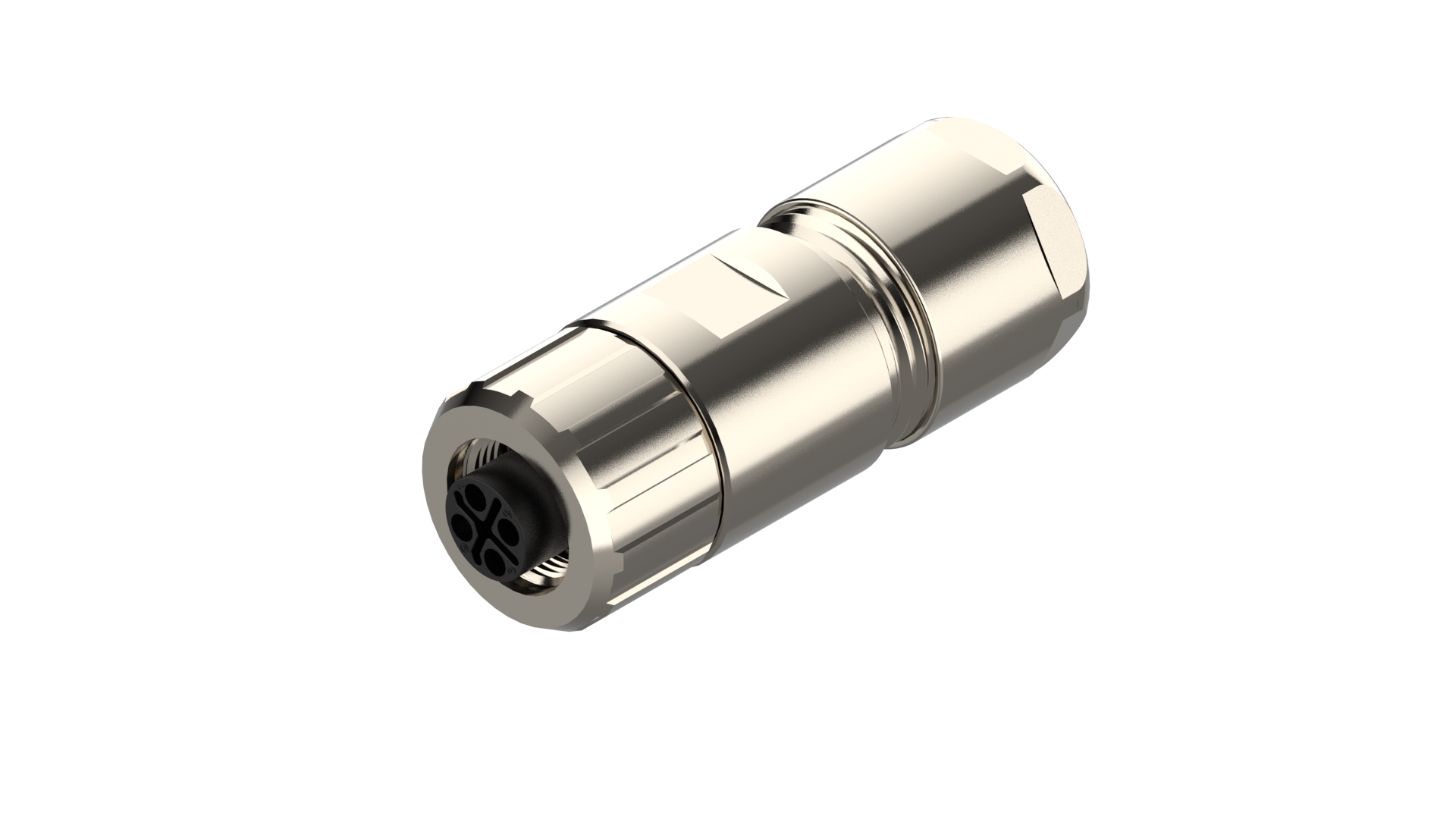

Power Connectors - RKCS 4S/11

M12 Power Field Attachable Connector: Female, straight, 4-pin(3+PE), S-coded, shielded, silver housing, screw type, 600 V AC/DC

Specifications

Product Family	Power Connector
Side 1 Product Sub Family	M12 Power
Connector Type	Field attachable
Side 1 Type of Contact/Gender	female
Connector Design	straight
Number of Pins	4(3+PE)
Coding, Side 1	S
Shielding Type	Shielded
Attachment Type	Coupling Nut
Voltage Rating	630 V
Rated Impulse Voltage	6.0 kV
Operating Voltage	600 V AC/DC
Contact Resistance	≤ 10 mOhm
Insulation Resistance	˃ 10^9 Ohm
Mating Cycles	≤ 100
Type of Connection	Screw
Cable Gland	PG 11
Maximum Wire Isolation Diameter	max. Ø2,9 mm
Strain-Relief	clamping cage
Suitable Cables	3 gaskets enclosed (Ø3 - Ø6 mm, Ø5 - Ø9 mm, Ø8 - Ø11 mm)
Ambient Temperature (Operation)*	-40 °C to +125 °C, notice derating
Protection Degree / IP Rating**	IP65, IP67
Design Standard	IEC 61076-2-111
Pollution Degree	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Clearance / Creepage Distance	DIN EN 60664-1 (2008/01); VDE 0110-1
Overvoltage Category	III acc. to DIN EN 60664-1 (VDE 0110-1)

Contact Base Material	CuZn
Side 1 Contact Plating	Cu/Au
Contact Bearer Material	PBT GF
Contact Bearer Color	black
Flammability Class (Contact Bearer)	UL 94 V-2
Housing Material	CuZn
Housing Plating	Ni
Housing Color	silver
Cable Gland Material	CuZn
Cable Gland Plating	Ni
Cable Gland Gasket	NBR
Strain-Relief Material	PBT GF
Flammability Class (Strain Relief)	UL 94 V-2
Attachment Material	CuZn
Attachment Plating	Cu/Ni
Shielding Material	CuZn, plating: Ni
O-Ring Material	FKM

RoHS Compliant	yes

Note Derating	* Notice derating
Protection Degree / IP Rating Note	** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
