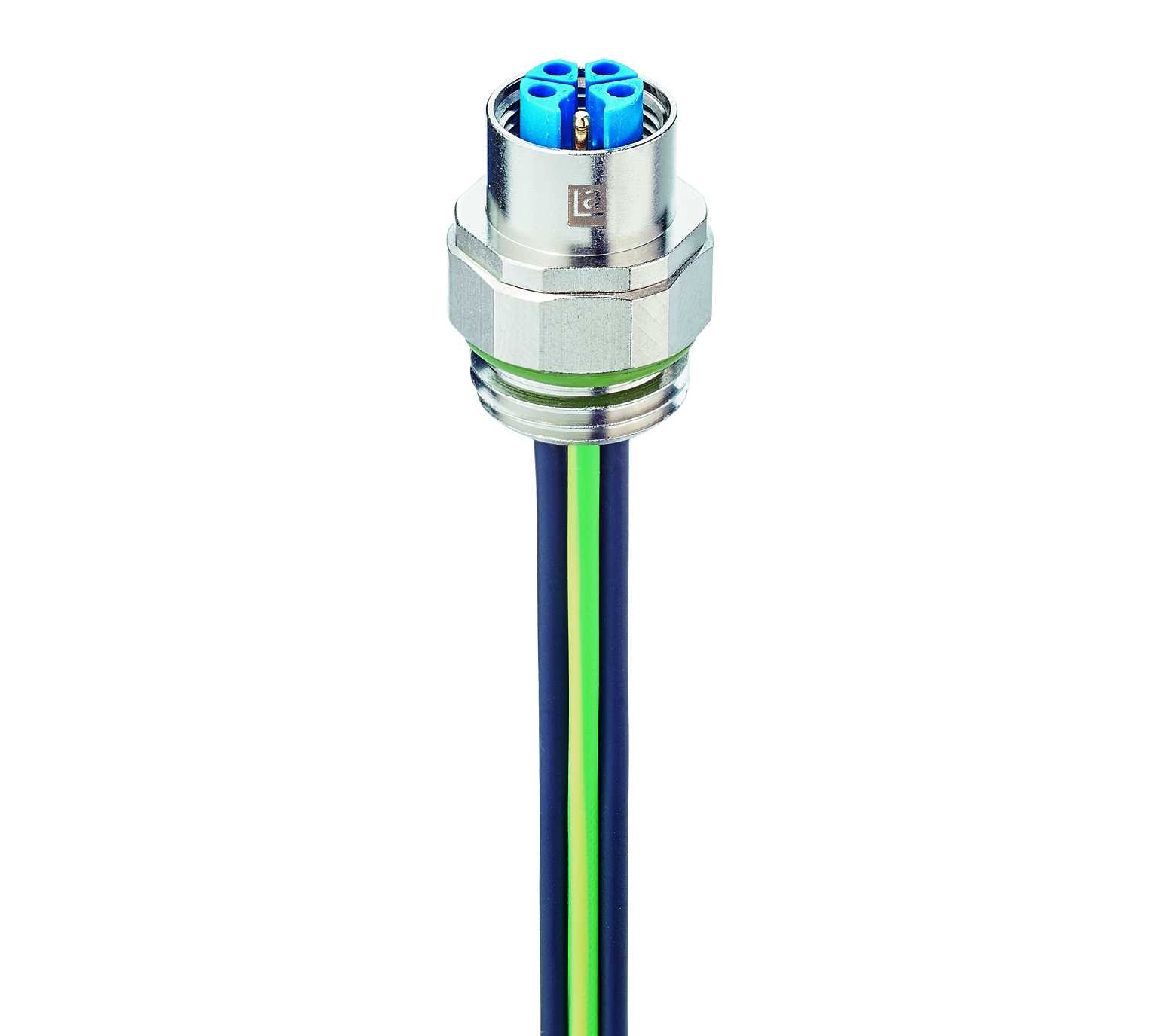

Power Connectors - RKP6S 5K-033

M12 Power Receptacle Connector: Female, front mount (positionable), 5-pin(4+PE), K-coded, shielded, silver housing, 600 V AC/DC, 16 A

Specifications

Pin 1	Pin 2	Pin 3	Pin 4	PE
black 1	black 2	black 3	black 4	green-yellow

Product Family	Power Connector
Side 1 Product Sub Family	M12 Power
Connector Type	Receptacle
Side 1 Type of Contact/Gender	female
Connector Design	Front mount (positionable)
Number of Pins	5(4+PE)
Coding, Side 1	K
Shielding Type	Shielded
Attachment Type	Coupling Nut
Voltage Rating	630 V
Rated Impulse Voltage	6.0 kV
Operating Voltage	600 V AC/DC
Current Rating	16 A
Rated Current (UL)*	16 A
Side 1 Contact Resistance	≤ 10 mOhm
Insulation Resistance	˃ 10^9 Ohm
Mating Cycles	≤ 100
Ambient Temperature (Operation)*	-40 °C to +125 °C, notice derating
Protection Degree / IP Rating**	IP65, IP67, IP69K
Side 1 Design Standard	IEC 61076-2-111
Side 1 Pollution Degree	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Clearance / Creepage Distance	DIN EN 60664-1 (2008/01); VDE 0110-1
Overvoltage Category	III acc. to DIN EN 60664-1 (VDE 0110-1)

Contact Base Material	CuNi
Side 1 Contact Plating	Cu/Au
Contact Bearer Material	PBT GF
Contact Bearer Color	blue
Flammability Class (Contact Bearer)	UL 94 V-2
Housing Material	CuZn
Housing Plating	Ni
Housing Color	silver
Attachment Material	CuZn
Attachment Plating	Cu/Ni
Shielding Material	CuZn, plating: Ni
O-Ring Material	FKM

Insulated Wire Diameter	1.75 mm²

UL-File	E497237
UL	cULus

RoHS Compliant	yes

Note Derating	* Notice derating
Protection Degree / IP Rating Note	** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
Product Characteristics	To ensure ingress protection, please check the O-ring’s position before connecting. Improperly positioned O-ring leads to ingress protection potential failure.
