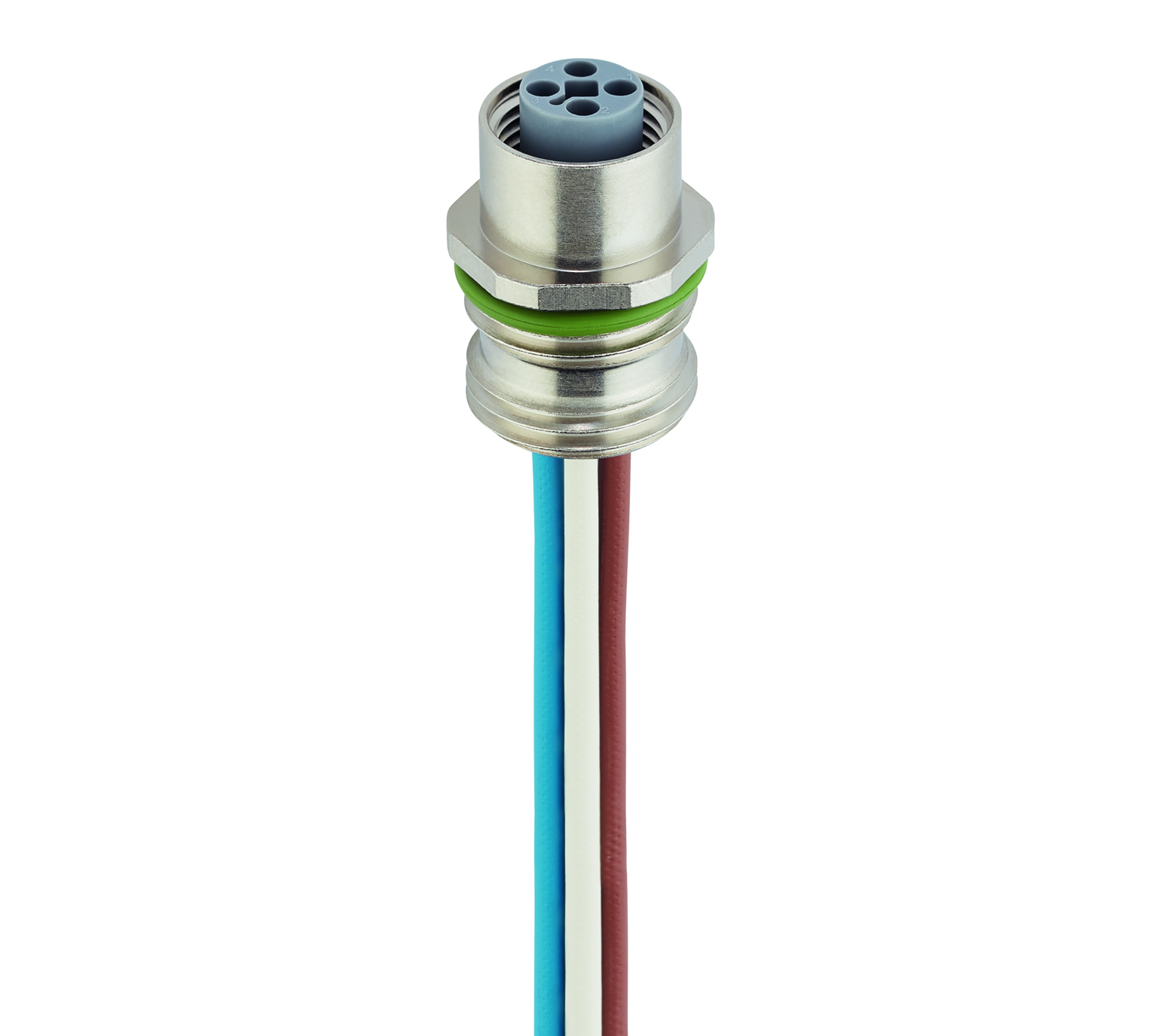

Power Connectors - RKP6U 4T-033

M12 Power Receptacle Connector: Female, front mount (positionable), 4-pin, T-coded, silver housing, 50 V AC / 60 V DC, 16 A

Specifications

Pin 1	Pin 2	Pin 3	Pin 4
brown	white	blue	black

Product Family	Power Connector
Side 1 Product Sub Family	M12 Power
Connector Type	Receptacle
Side 1 Type of Contact/Gender	female
Connector Design	Front mount (positionable)
Number of Pins	4
Coding, Side 1	T
Shielding Type	Unshielded
Attachment Type	Coupling Nut
Voltage Rating	63 V
Rated Impulse Voltage	1.5 kV
Operating Voltage	50 V AC / 60 V DC
Current Rating	16 A
Rated Current (UL)*	16 A
Contact Resistance	≤ 10 mOhm
Insulation Resistance	˃ 10^9 Ohm
Mating Cycles	≤ 100
Ambient Temperature (Operation)*	-40 °C to +125 °C, notice derating
Protection Degree / IP Rating**	IP65, IP67, IP69K
Design Standard	IEC 61076-2-111
Pollution Degree	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Clearance / Creepage Distance	DIN EN 60664-1 (2008/01); VDE 0110-1
Overvoltage Category	III acc. to DIN EN 60664-1 (VDE 0110-1)

Contact Base Material	CuNi
Side 1 Contact Plating	Cu/Au
Contact Bearer Material	PBT GF
Contact Bearer Color	dark-grey
Flammability Class (Contact Bearer)	UL 94 V-2
Housing Material	CuZn
Housing Plating	Ni
Housing Color	silver
Attachment Material	CuZn
Attachment Plating	Cu/Ni
O-Ring Material	FKM

Insulated Wire Diameter	1.75 mm²

UL-File	E497237
UL	cULus

RoHS Compliant	yes

Note Derating	* Notice derating
Protection Degree / IP Rating Note	** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
