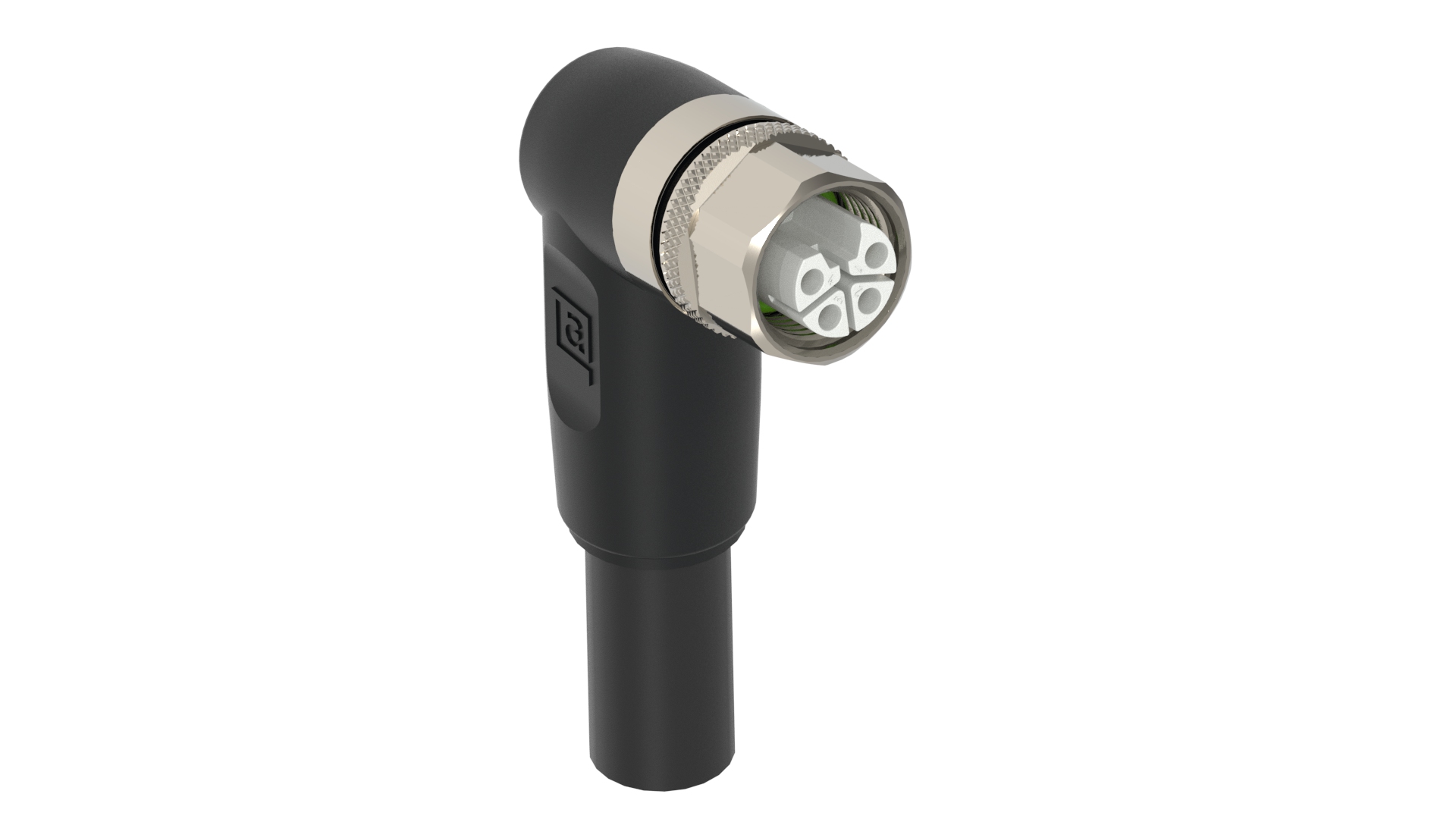

Power Connectors - RKWT 4L-1026

M12 Single-Ended Cordset, Industrial Power Applications, PUR black cable, unshielded, AWM: 20939, female, angled, L-coded, 4-pin, 4x2.5 mm², 50 V AC / 60 V DC operating voltage, rated current 24 A (20 A UL pending) (20 A UL pending), -40 °C 125 °C (operating temp.), suited for IP65, IP67, IP69K environment, IEC 61076-2-111, UL 2237; cULus

Availability:

Global
Status:

Active

Quote

Specifications
Resources

Specifications

Expand All

Information

Face View

Pin 1	Pin 2	Pin 3	Pin 4
brown	white	blue	black

Product Family	Power Connector
Side 1 Product Sub Family	M12 Power
Connector Type	Cordset, single ended
Side 1 Type of Contact/Gender	female
Connector Design	angled
Number of Pins	4
Shielding Type	Unshielded
Attachment Type	Coupling Nut
Voltage Rating	63 V
Rated Voltage (UL)	63 V
Rated Impulse Voltage	1.5 kV
Operating Voltage	≤ 60 V AC/DC
Current Rating	24 A
Rated Current (UL)*	16 A
Contact Resistance	≤ 10 mOhm
Insulation Resistance	˃ 10^9 Ohm
Mating Cycles	≤ 100
Ambient Temperature (Operation)*	-40 °C ... 125 °C, notice derating
Protection Degree / IP Rating**	IP65, IP67, IP69K
Design Standard	IEC 61076-2-111
Pollution Degree	3 acc. to IEC 60664-1
Clearance / Creepage Distance	IEC 60664-1 (2020-05)
Overvoltage Category	III acc. to IEC 60664-1

Materials

Contact Base Material	CuNi
Side 1 Contact Plating	Cu/Au
Contact Bearer Material	PBT GF
Contact Bearer Color	black
Flammability Class (Contact Bearer)	UL 94 V-2
Molded Body Material	TPE
Molded Body Color	black
Flammability Class (Molded Body)	UL 94 HB
Attachment Material	CuZn
Attachment Plating	Cu/Ni
O-Ring Material	FKM

Circuitry

Fastening Torque (Contact Screw)	M 12x1: (60-65) Ncm, hand-tight

Cable Data

Cable Number	1026
Number of Wires	4
Minimal Bending Radius (Fixed Inst)	˃ 4 x D
Minimal Bending Radius (Flexible Inst)	˃ 7.5 x D
Cycles (Bending)	˃ 10 Mio, max. 50 m/s²
Cycles (Torsion)	˃ 5 Mio @ ± 30 °/1 m
Conductor Material	Cu
Cable Jacket Material	PUR
Cable Jacket Color	black
Cable Diameter D	ø 8.6 ±0,2
Wire Insulation Material	PP
Insulated Wire Diameter	ø 2.55 mm
Ambient Temperature (Fixed Installation)	-30 °C ... 80 °C
Ambient Temperature (Flex Installation)	-40 °C ... 125 °C
Ambient Temperature (Fixed Installation short-term 100h)	-40 °C ... 80 °C
Ambient Temperature (Drag Chain Inst)	-20 °C ... 60°C
UL Cable Type	AWM: 20939
Flammability Class (Cable Jacket)	VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 / UL VW-1, CSA FT1
