Product Number: RS 601A-896

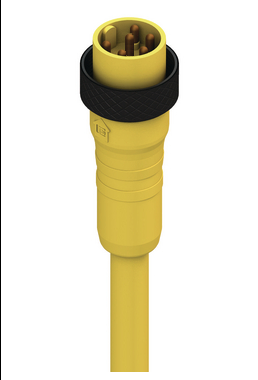

7/8" Power Single-Ended Cordset: Male, straight, 6-pin, yellow body, 600 V (UL), 8 A (UL); TPE yellow cable, 16 AWG
RS 601A-896 - 7/8" Power Single-Ended Cordset: Male, straight, 6-pin, yellow body, 600 V (UL), 8 A (UL); TPE yellow cable, 16 AWG
-
Availability:
Global
-
Global inventory:
Available
Specifications
Face View
|
Product Family |
Power Connector |
|---|---|
|
Product Sub Family |
7/8" |
|
Connector Type |
Cordset, single ended |
|
Type of Contact / Gender |
Male |
|
Connector Design |
straight |
|
Number of Pins |
6 |
|
Coding |
A |
|
Shielding |
Unshielded |
|
Attachment Type |
Coupling nut with internal threads |
|
Rated Voltage |
600 V |
|
Rated Current* |
5 A |
|
Ambient Temperature (Operation)* |
- 30 °C - + 90 °C |
|
Protection Degree / IP Rating** |
IP65, IP67, NEMA 6P |
Materials
|
Contact Plating |
Au over Ag |
|---|---|
|
Contact Bearer Color |
Yellow |
|
Molded Body Material |
TPU |
|
Molded Body Color |
Yellow |
|
Attachment Material |
Al |
Cable Data
|
Cable Number |
896 |
|---|---|
|
Conductor Size |
16 AWG (65/34) |
|
Number of Wires |
6 |
|
Minimal Bending Radius (Flexible Inst) |
˃ 10 x D |
|
Conductor material |
Stranded, BC |
|
Cable Jacket Material |
TPE |
|
Cable Jacket Color |
Yellow |
|
Cable Diameter D |
Ø 10.18 mm |
|
Wire Insulation Material |
PVC-Nylon |
|
Insulated Wire Diameter |
Ø 2.5 mm |
|
Ambient Temperature (Fixed Installation) |
-30 °C to +90°C |
|
UL Cable Type |
TC-ER (90°C Dry / 75°C Wet) 600 V |
|
Flammability Class (Cable Jacket) |
FT4 / IEEC 1202 |
|
Cable Characteristics |
Oil and Coolant, Vibration, UV, Abrasion, and Weld Spark resistant, Continuous Flex |
Approvals
|
UL-File |
E104696 |
|---|---|
|
UL |
UL recognized |
Safety & Environmental Compliance
|
RoHS Compliant |
Yes |
|---|
Notes
|
Note Derating |
Notice derating |
|---|---|
|
Protection Degree / IP Rating Note |
** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
History
|
Update and Revision |
Revision Number: 0.28 Revision Date: 02-03-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.28 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Item Description | Cable Length |
|---|---|---|
| 540001896 | RS 601A-896/2M | 2 m |
| 540001897 | RS 601A-896/4M | 4 m |
| 540001898 | RS 601A-896/5M | 5 m |
| 540001899 | RS 601A-896/6M | 6 m |
