Product Number: RS 601B-896

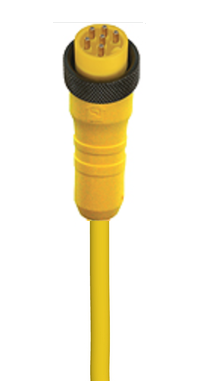

1" Power Single-Ended Cordset: Male, 6-pin, 600 V, 8 A; TPE yellow cable, 16 AWG
1" Power Single-Ended Cordset: Male, straight, 6-pin, yellow body, 600 V, 8 A; TPE yellow cable, 16 AWG, TC-ER Rated, US Color Code
-
Availability:
Global
-
Global inventory:
Available
Specifications
Face View
|
Product Family |
Power Connector |
|---|---|
|
Product Sub Family |
1" |
|
Connector Type |
Cordset, single ended |
|
Type of Contact / Gender |
Male |
|
Connector Design |
Straight |
|
Number of Pins |
6 |
|
Coding |
A |
|
Shielding |
Unshielded |
|
Attachment Type |
Coupling nut with internal threads |
|
Rated Voltage |
600 V |
|
Rated Current* |
8 A |
|
Ambient Temperature (Operation)* |
-40 °C to +90 °C |
|
Protection Degree / IP Rating** |
IP65, IP67 |
Materials
|
Contact Base Material |
CuZn |
|---|---|
|
Contact Plating |
Au over Ag |
|
Contact Bearer Material |
TPU |
|
Contact Bearer Color |
YE |
|
Molded Body Material |
TPU |
|
Molded Body Color |
yellow |
|
Attachment Material |
Anodized Bk, Al |
Cable Data
|
Cable Number |
896 |
|---|---|
|
Conductor Size |
16 AWG (65/34) |
|
Number of Wires |
6 |
|
Minimal Bending Radius (Flexible Inst) |
˃ 10 x D |
|
Conductor material |
Stranded, BC |
|
Cable Jacket Material |
TPE |
|
Cable Jacket Color |
Yellow |
|
Cable Diameter D |
Ø 10.18 mm |
|
Wire Insulation Material |
PVC-Nylon |
|
Insulated Wire Diameter |
Ø 2.77 mm |
|
Ambient Temperature (Fixed Installation) |
-30C TO 90C DRY, 75C WET |
|
UL Cable Type |
NEC TYPE TC-ER (UL1277) |
|
Flammability Class (Cable Jacket) |
UL 1685, CSA FT4, IEEE 1202 |
|
Cable Characteristics |
Oil and Coolant, Vibration, UV, Abrasion, and Weld Spark resistant, Continuous Flex |
Safety & Environmental Compliance
|
RoHS Compliant |
Yes |
|---|
Notes
|
Note Derating |
Notice Derating |
|---|---|
|
Protection Degree / IP Rating Note |
Protection Degree and IP Rating per test standard IEC 60529 using a Lumberg Automation mating product |
Belden.GenericSpecificationTitle
|
Note Derating |
Notice Derating |
|---|---|
|
Protection Degree / IP Rating Note |
Protection Degree and IP Rating per test standard IEC 60529 using a Lumberg Automation mating product |
Part Numbers
| Item # | Item Description | Cable Length | Replacement for |
|---|---|---|---|
| 540001751 | RS 601B-896/1M | 1 m | RS 601B-696 |
| 540001752 | RS 601B-896/2M | 2 m | RS 601B-696 |
| 540001753 | RS 601B-896/4M | 4 m | RS 601B-696 |
| 540001754 | RS 601B-896/5M | 5 m | RS 601B-696 |
