Power Connectors - RSRK 201-678

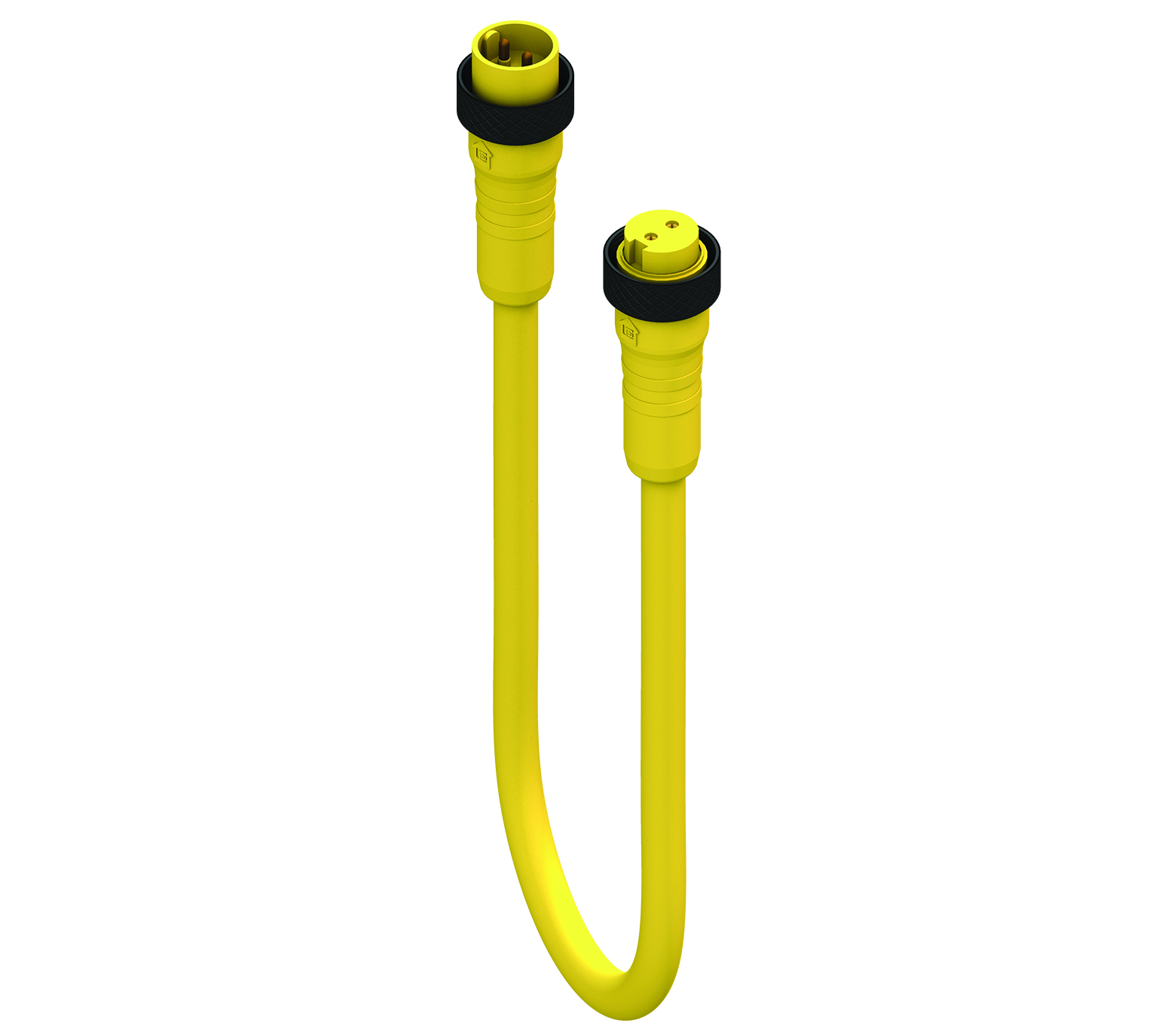

7/8" Power Double-Ended Cordset: Male straight to female straight, 2-pin, yellow body, 600 V (UL), 12 A (UL); PVC yellow cable, 16 AWG

Specifications

Side 1 Product Sub Family	7/8"
Side 1 Type of Contact/Gender	male
Connector Design	7/8" \| Male \| 2 Pole \| 0°
Attachment Type	Coupling nut with internal threads
Number of Pins	2
Ambient Temperature (Operation)*	-40°C to +90°C
Protection Degree / IP Rating**	IP 67 / NEMA 6P
Contact Base Material	CuZn
Side 1 Contact Plating	gold over silver plated
Contact Bearer Material	TPU
Contact Bearer Color	yellow
Molded Body Material	TPU
Molded Body Color	yellow

Side 2 Product Sub Family	7/8" Circular Connectors
Side 2 Type of Contact/Gender	female
Connector Design, Side 2	7/8" \| Female \| 2 Pole \| 0°
Attachment Type, Side 2	Coupling nut with internal threads
Number of Pins, Side 2	2
Ambient Temperature (Operation), Side 2*	-40°C to +90°C
Protection Degree / IP Rating, Side 2**	* only if mounted and locked in combination with Hirschmann / Lumberg connector.
Contact Base Material, Side 2	CuZn
Contact Plating, Side 2	gold over silver plated
Contact Bearer Material, Side 2	TPU
Contact Bearer Color, Side 2	yellow
Molded Body Material, Side 2	TPU
Molded Body Color, Side 2	yellow
