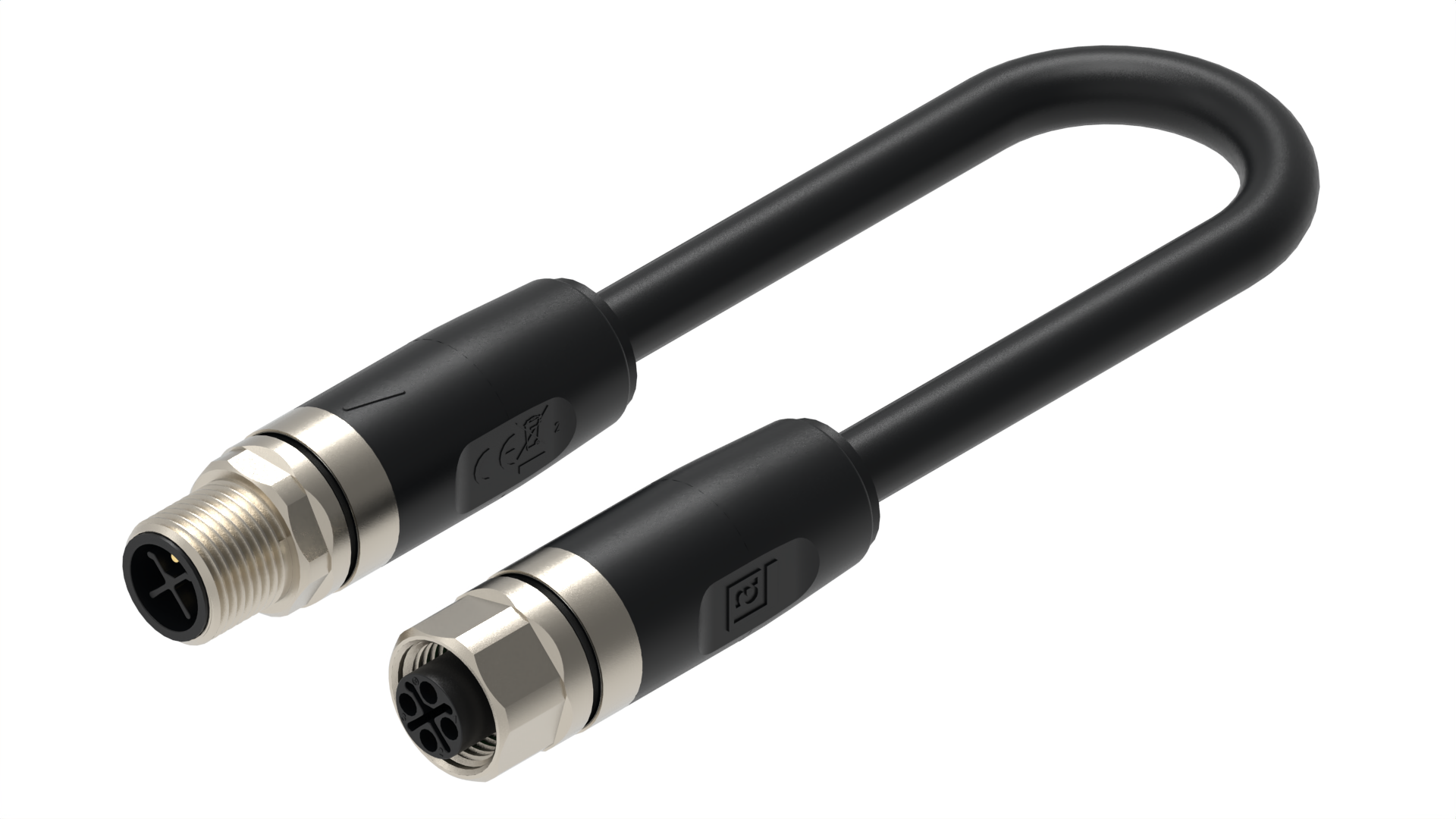

Power Connectors - RST 4S-RKT 4S-703

M12 to M12 cordset, Industrial Power Applications, PUR black cable, unshielded, AWM: 20939, male to female, straight, S-coded, 4-pin, 4x1.5 mm², 600 V AC / DC operating voltage, rated current 16 A, -40 °C 90 °C (operating temp.), suited for IP65, IP67, IP69K environment, IEC 61076-2-111, UL 2237; cULus

Availability:

Global
Status:

Active

Quote

Specifications
Part Numbers
Resources
Where to buy

Specifications

Expand All

Information

Face View Side 1

Pin 1	Pin 2	Pin 3	PE
black 1	black 2	black 3	green-yellow

Face View Side 2

Pin 1	Pin 2	Pin 3	PE
black 1	black 2	black 3	green-yellow

Product Family	Power Connector
Connector Type	Cordset, double ended
Shielding Type	Unshielded
Voltage Rating	630 V
Rated Voltage (UL)	600 V
Rated Impulse Voltage	6.0 kV
Operating Voltage	600 V AC/DC
Current Rating	16 A
Rated Current (UL)*	16 A

Technical Data Side 1

Side 1 Product Sub Family	M12 Power
Side 1 Type of Contact/Gender	male
Connector Design	straight
Attachment Type	Coupling Screw
Number of Pins	4(3+PE)
Coding, Side 1	S
Contact Resistance	≤ 10 mOhm
Insulation Resistance	˃ 10^9 Ohm
Mating Cycles	≤ 100
Ambient Temperature (Operation)*	-40 °C ... 125 °C, notice derating
Protection Degree / IP Rating**	IP65, IP67, IP69K
Design Standard	IEC 61076-2-111
Pollution Degree	3 acc. to IEC 60664-1
Clearance / Creepage Distance	IEC 60664-1 (2020-05)
Overvoltage Category	III acc. to IEC 60664-1
Contact Base Material	CuNi
Side 1 Contact Plating	Cu/Au
Contact Bearer Material	PBT GF
Contact Bearer Color	black
Flammability Class (Contact Bearer)	UL 94 V-2
Molded Body Material	TPE
Molded Body Color	black
Flammability Class (Molded Body)	UL 94 HB
Attachment Material	CuZn
Attachment Plating	Cu/Ni
O-Ring Material	FKM
Fastening Torque (Contact Screw)	M 12x1: (60-65) Ncm, hand-tight

Cable Data

Cable Number	703
Conductor Size	1.50 mm²
Number of Wires	4
Minimal Bending Radius (Fixed Inst)	˃ 4 x D
Minimal Bending Radius (Flexible Inst)	˃ 7.5 x D
Cycles (Bending)	˃ 10 Mio, max. 50 m/s²
Cycles (Torsion)	˃ 5 Mio @ ± 30 °/1 m
Conductor Material	Cu
Cable Jacket Material	PUR
Cable Jacket Color	black
Cable Diameter D	ø 7.4 ±0,2
Wire Insulation Material	PP
Insulated Wire Diameter	ø 2.35 mm
Ambient Temperature (Fixed Installation)	-30 °C ... 80 °C
Ambient Temperature (Flex Installation)	-40 °C ... 125 °C
Ambient Temperature (Fixed Installation short-term 100h)	-40 °C ... 80 °C
Ambient Temperature (Drag Chain Inst)	-20 °C ... 60°C
UL Cable Type	AWM: 20939
Flammability Class (Cable Jacket)	VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 / UL VW-1, CSA FT1

Technical Data Side 2

Side 2 Product Sub Family	M12 Power
Side 2 Type of Contact/Gender	female
Connector Design, Side 2	straight
Attachment Type, Side 2	Coupling Nut
Number of Pins, Side 2	4(3+PE)
Coding, Side 2	S
Contact Resistance, Side 2	≤ 10 mOhm
Insulation Resistance, Side 2	˃ 10^9 Ohm
Mating Cycles, Side 2	≤ 100
Ambient Temperature (Operation), Side 2*	-40 °C ... 125 °C, notice derating
Protection Degree / IP Rating, Side 2**	IP65, IP67, IP69K
Design Standard, Side 2	IEC 61076-2-111
Pollution Degree, Side 2	3 acc. to IEC 60664-1
Clearance / Creepage Distance, Side 2	IEC 60664-1 (2020-05)
Overvoltage Category, Side 2	III acc. to IEC 60664-1
Contact Base Material, Side 2	CuNi
Contact Plating, Side 2	Cu/Au
Contact Bearer Material, Side 2	PBT GF
Contact Bearer Color, Side 2	black
Flammability Class (Contact Bearer), Side 2	UL 94 V-2
Molded Body Material, Side 2	TPE
Molded Body Color, Side 2	black
Flammability Class (Molded Body), Side 2	UL 94 HB
Attachment Material, Side 2	CuZn
Attachment Plating, Side 2	Cu/Ni
O-Ring Material, Side 2	FKM
Fastening Torque (Contact Screw), Side 2	M 12x1: (60-65) Ncm, hand-tight

Approvals

UL-File	E497237
UL	UL 2237; cULus
VDE	-

Safety & Environmental Compliance

RoHS Compliant	yes

Resistances

Halogenfree	DIN VDE 0472 T.815, IEC 60754-1
Oil Resistance	HD 22.10 Appendix A, DIN EN 60811-404

Notes

Protection Degree / IP Rating Note	** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
Note Derating	* Notice derating

Information

Protection Degree / IP Rating Note	** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
Note Derating	* Notice derating
