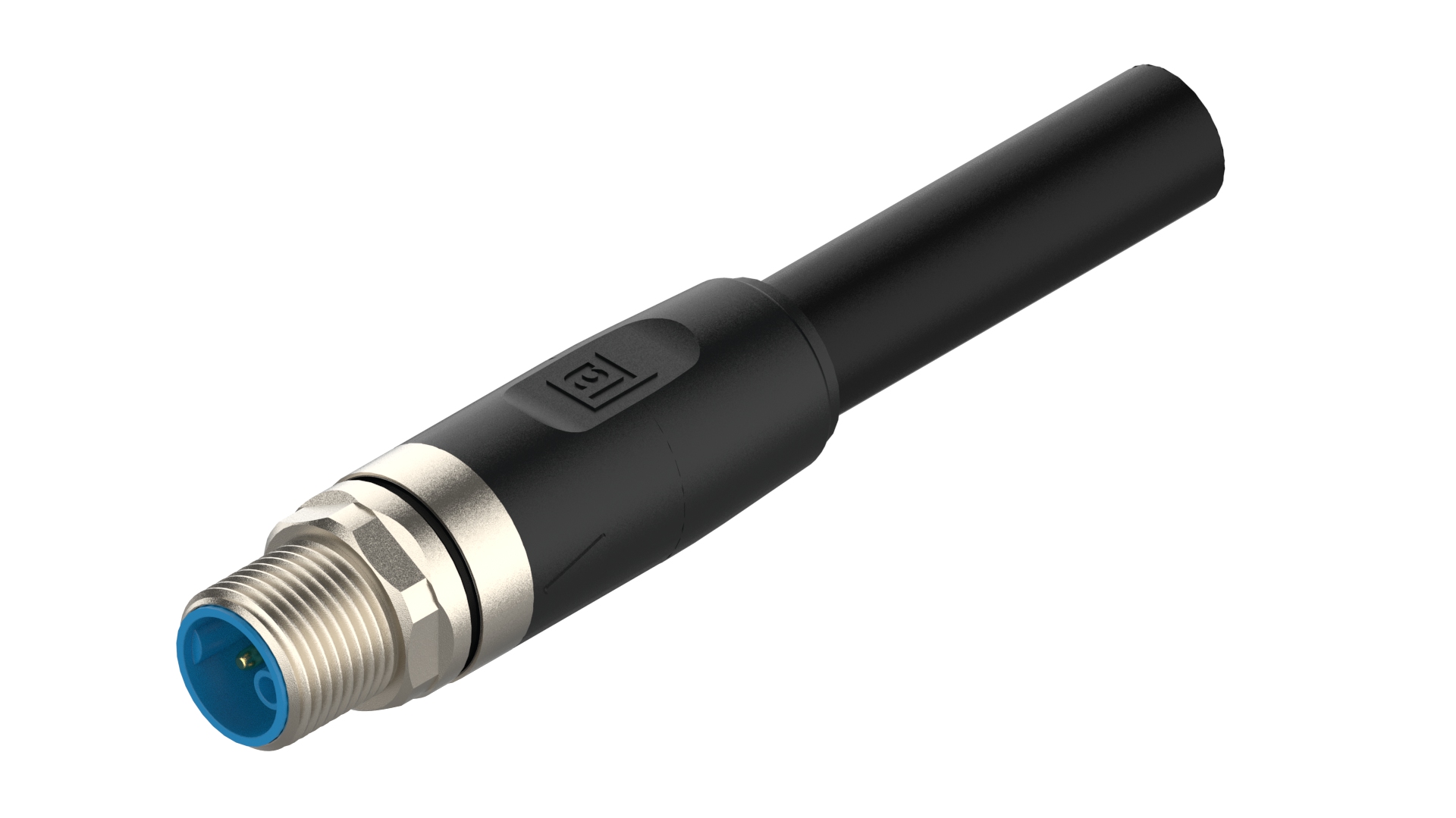

M12 Single-Ended Cordset, Industrial Power Applications, PVC black cable, unshielded, AWM: 2587, male, straight, K-coded, 5-pin, 5x0.75 mm², 600 V AC / DC operating voltage, rated current 10 A, -40 °C 125 °C (operating temp.), suited for IP65, IP67 environment, IEC 61076-2-111

Availability:

Global
Status:

Active

Quote

Specifications
Part Numbers
Resources
Where to buy

Specifications

Expand All

Information

Face View

Pin 1	Pin 2	Pin 3	Pin 4	PE
black 1	black 2	black 3	black 4	green-yellow

Product Family	Power Connector
Side 1 Product Sub Family	M12 Power
Connector Type	Cordset, single ended
Side 1 Type of Contact/Gender	male
Connector Design	straight
Number of Pins	5(4+PE)
Coding, Side 1	K
Shielding Type	Unshielded
Attachment Type	Coupling Screw
Voltage Rating	630 V
Rated Voltage (UL)	600 V
Rated Impulse Voltage	6.0 kV
Operating Voltage	600 V AC/DC
Current Rating	10 A
Rated Current (UL)*	-
Side 1 Contact Resistance	≤ 10 mOhm
Insulation Resistance	˃ 10^9 Ohm
Mating Cycles	≤ 100
Ambient Temperature (Operation)*	-40 °C ... 125 °C, notice derating
Protection Degree / IP Rating**	IP65, IP67
Side 1 Design Standard	IEC 61076-2-111
Side 1 Pollution Degree	3 acc. to IEC 60664-1
Clearance / Creepage Distance	IEC 60664-1 (2020-05)
Overvoltage Category	III acc. to IEC 60664-1

Materials

Contact Base Material	CuNi
Side 1 Contact Plating	Cu/Au
Contact Bearer Material	PBT GF
Contact Bearer Color	blue
Flammability Class (Contact Bearer)	UL 94 V-2
Molded Body Material	TPE
Molded Body Color	black
Flammability Class (Molded Body)	UL 94 HB
Attachment Material	CuZn
Attachment Plating	Cu/Ni
O-Ring Material	FKM

Circuitry

Fastening Torque (Contact Screw)	M 12x1: (60-65) Ncm, hand-tight

Cable Data

Cable Number	736
Conductor Size	0.75 mm²
Number of Wires	5
Minimal Bending Radius (Fixed Inst)	˃ 4 x D
Minimal Bending Radius (Flexible Inst)	˃ 7.5 x D
Cycles (Bending)	˃ 1 Mio, max. 50 m/s²
Cycles (Torsion)	-
Conductor Material	Cu
Cable Jacket Material	PVC
Cable Jacket Color	black
Cable Diameter D	ø 6.7 ±0,2
Wire Insulation Material	PVC
Insulated Wire Diameter	ø 1.85mm
Ambient Temperature (Fixed Installation)	-15 °C ... 80 °C
Ambient Temperature (Flex Installation)	-5 °C to +90 °C
Ambient Temperature (Fixed Installation short-term 100h)	-30 °C ... 80 °C
Ambient Temperature (Drag Chain Inst)	0 °C ... 60 °C
UL Cable Type	AWM: 21179
Flammability Class (Cable Jacket)	VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 / UL VW-1, CSA FT1

Approvals

UL-File	-
VDE	-

Safety & Environmental Compliance

RoHS Compliant	yes

Resistances

Halogenfree	-
Oil Resistance	HD 22.10 Appendix A, DIN EN 60811-404

Notes

Note Derating	* Notice derating
Protection Degree / IP Rating Note	** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
Product Characteristics	To ensure ingress protection, please check the O-ring’s position before connecting. Improperly positioned O-ring leads to ingress protection potential failure.
