Power Connectors - RSU 12-S4741

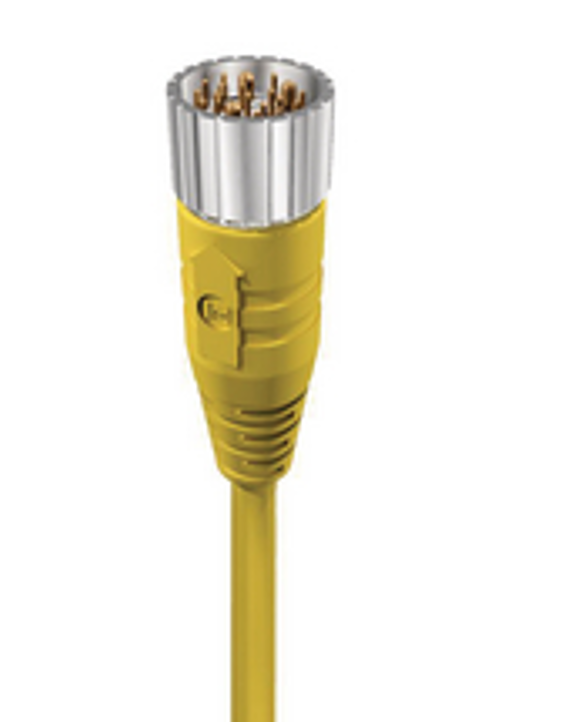

M23 - Male Straight Cordset | #Contacts: 12 | 120 V / 8 A | Yellow TPE Jacket, 8x0.5 mm² (20 AWG) + 3x1.0 mm² (17 AWG), IEC

Specifications

Pin 1	Pin 2	Pin 3	Pin 4	Pin 5	Pin 6	Pin 7	Pin 8	Pin 9	Pin 10	Pin 11	Pin 12
white	green	yellow	grey	grey-pink	red-blue	white-green	brown-green	blue	blue (bridge to pin 9)	brown	green-yellow

Product Family	Power Connector
Side 1 Product Sub Family	M23 Power
Connector Type	Cordset, single ended
Side 1 Type of Contact/Gender	Pin Contact / Male
Connector Design	M23 \| Male \|12 Pole \| 0°
Number of Pins	12
Shielding Type	Unshielded
Attachment Type	Female Thread (coupling nut)
Voltage Rating	125 V
Rated Impulse Voltage	1.5 kV
Operating Voltage	110 V AC/DC
Current Rating	8 A
Insulation Resistance	˃ 10^9 Ohm
Mating Cycles	≤ 100
Cross Section	8x0.5mm² + 3x1.0 mm²
Ambient Temperature (Operation)*	- 25 °C to + 80 °C
Protection Degree / IP Rating**	IP67
Side 1 Pollution Degree	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Clearance / Creepage Distance	acc. to DIN EN 60664-1 (VDE 0110-1)
Overvoltage Category	II acc. to DIN EN 60664-1 (VDE 0110-1)

Contact Base Material	Brass (CuZn)
Side 1 Contact Plating	Gold over Copper (Cu/Au)
Contact Bearer Material	Polybutylene terephthalate (PBT)
Contact Bearer Color	White
Flammability Class (Contact Bearer)	UL 94 V0
Molded Body Material	Thermoplastic Polyurethane (TPU)
Molded Body Color	Yellow
Flammability Class (Molded Body)	UL 94-HB
Attachment Material	Brass (CuZn)
Attachment Plating	Nickel (Ni)
O-Ring Material	Nitrile Butadiene Rubber (NBR)
Gasket Material	Nitrile Butadiene Rubber (NBR)

Cable Number	S4741
Conductor Size	8x0.5mm² + 3x1.0 mm²
Number of Wires	11
Minimal Bending Radius (Fixed Inst)	˃ 5 x D
Minimal Bending Radius (Flexible Inst)	˃ 10 x D
Cycles (Bending)	˃ 2 M
Conductor Material	Cu
Cable Jacket Material	Thermoplastic elastomers (TPE)
Cable Jacket Color	Yellow
Cable Diameter D	Ø 10.00 [0.39]"
Wire Insulation Material	Polypropylene (PP)
Insulated Wire Diameter	8 x Ø 1.45 mm [ 0.6 ] + 3 x Ø 1.95 mm[ 0.8" ]"
Ambient Temperature (Fixed Installation)	- 25 °C to + 80 °C (PLTC 75 °C)
Ambient Temperature (Flex Installation)	- 5 °C to + 80 °C (PLTC 75 °C)
Ambient Temperature (Drag Chain Inst)	- 25 °C to + 60 °C
UL Cable Type	PLTC
Flammability Class (Cable Jacket)	DIN EN 60332-1-2, VDE 0482-332-2-2, IEC 60332-1-2, UL 1685 vertical tray
Cable Characteristics	Flexibility: Excellent \| Abrasion Resistance: Good \| Oil & Chemical Resistance: Excellent \| UV Resistance: Good \| Low Temp Performance: Good (flexible to -40°C) \| Flame Retardance: Fair to Good \| Halogen-Free: Yes \| Mechanical Durability: Good (resists impact, tear, and flex) \|Drag Chain: Yes \| Environmental Suitability: Outdoor, oily, wet, or rough environments

REACH	Yes
RoHS Compliant	Yes

Halogenfree	No
Oil Resistance	Yes

Note Derating	* Notice derating
Protection Degree / IP Rating Note	IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked
Note	Do not connect / disconnect under load.
Particularities	When the connector is unlocked and in risk of pollution the connector has to be covered with a protective cap ≥ IP54.
