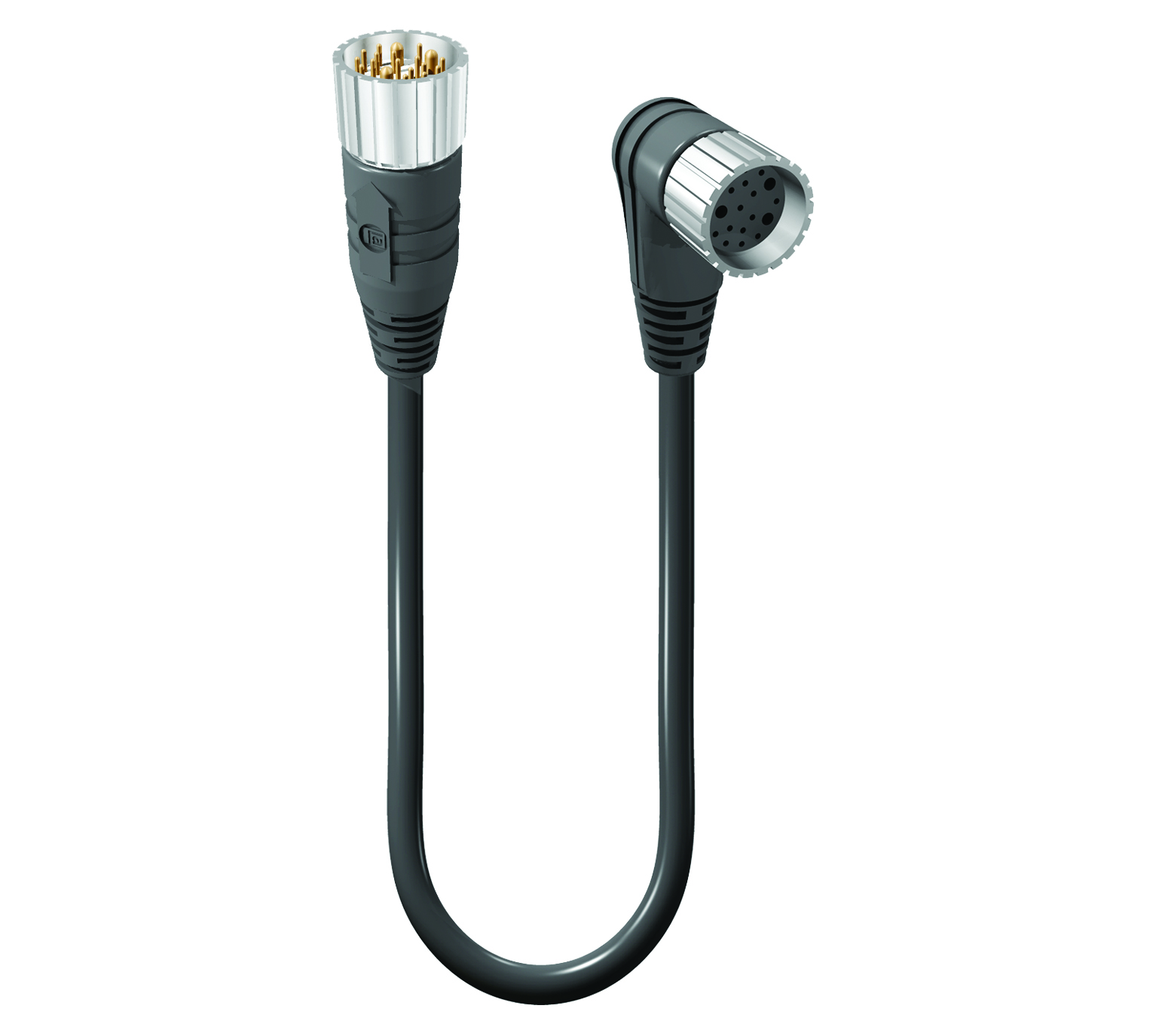

Power Connectors - RSU 19-RKWU 19-S3792

Specifications

Pin 1	Pin 2	Pin 3	Pin 4	Pin 5	Pin 6	Pin 7	Pin 8	Pin 9	Pin 10	Pin 11	Pin 12	Pin 13	Pin 14	Pin 15	Pin 16	Pin 17	Pin 18	Pin 19
blue # 1	blue # 2	blue # 3	blue # 4	blue # 5	blue # 6	blue # 7	blue # 8	blue # 9	blue # 10	blue # 11	green / yellow	blue # 13	blue # 14	blue # 15	blue # 16	blue # 17	blue # 18	blue # 19

Pin 1	Pin 2	Pin 3	Pin 4	Pin 5	Pin 6	Pin 7	Pin 8	Pin 9	Pin 10	Pin 11	Pin 12	Pin 13	Pin 14	Pin 15	Pin 16	Pin 17	Pin 18	Pin 19
blue # 1	blue # 2	blue # 3	blue # 4	blue # 5	blue # 6	blue # 7	blue # 8	blue # 9	blue # 10	blue # 11	green / yellow	blue # 13	blue # 14	blue # 15	blue # 16	blue # 17	blue # 18	blue # 19

Side 1 Product Sub Family	M23 Power
Side 1 Type of Contact/Gender	Pin Contact / Male
Connector Design	M23 \| Male \|19 Pole \| 0°
Attachment Type	Coupling Nut
Number of Pins	19
Insulation Resistance	˃ 10^9 Ohm
Mating Cycles	≤ 100
Cross Section	19 x 0.75mm²
Ambient Temperature (Operation)*	- 25 °C to + 80 °C
Protection Degree / IP Rating**	IP67
Side 1 Pollution Degree	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Clearance / Creepage Distance	acc. to DIN EN 60664-1 (VDE 0110-1)
Overvoltage Category	II acc. to DIN EN 60664-1 (VDE 0110-1)
Contact Base Material	Brass (CuZn)
Side 1 Contact Plating	Gold over Copper (Cu/Au)
Contact Bearer Material	Polybutylene terephthalate (PBT)
Contact Bearer Color	White
Flammability Class (Contact Bearer)	UL 94 V0
Molded Body Material	Thermoplastic Polyurethane (TPU)
Molded Body Color	Black
Flammability Class (Molded Body)	UL 94-HB
Attachment Material	Brass (CuZn)
Attachment Plating	Nickel (Ni)
O-Ring Material	Nitrile Butadiene Rubber (NBR)

Cable Number	S3792
Conductor Size	0.34 mm²
Number of Wires	19
Minimal Bending Radius (Fixed Inst)	˃ 5 x D
Minimal Bending Radius (Flexible Inst)	˃ 10 x D
Cycles (Bending)	˃ 5 M
Conductor Material	Cu
Cable Jacket Material	Polyurethane (PUR)
Cable Jacket Color	Grey
Cable Diameter D	Ø 11.60
Wire Insulation Material	Polyvinyl chloride (PVC)
Insulated Wire Diameter	Ø 1.20 mm [0.068"]
Ambient Temperature (Fixed Installation)	- 40 °C to + 80 °C
Ambient Temperature (Flex Installation)	- 5 °C to + 80 °C
UL Cable Type	AWM 20233
Flammability Class (Cable Jacket)	FT-1
Cable Characteristics	Flexibility: Excellent \| Abrasion Resistance: Excellent \| Oil & Chemical Resistance: Excellent \| UV Resistance: Excellent \| Low Temp Performance: Excellent (flexible to -40°C) \| Flame Retardance: Good \| Halogen-Free: Yes \| Mechanical Durability: Excellent (resists impact, tear, and flex) \|Drag Chain \| Environmental Suitability: Outdoor, oily, wet, or rough environments

Side 2 Product Sub Family	M23 Power
Side 2 Type of Contact/Gender	Socket Contact / Female
Connector Design, Side 2	M23 \| Female \|19 Pole \| 90°
Attachment Type, Side 2	Coupling Nut
Number of Pins, Side 2	19
Insulation Resistance, Side 2	˃ 10^9 Ohm
Mating Cycles, Side 2	≤ 100
Conductor Cross Section, Side 2	19 x 0.75mm²
Ambient Temperature (Operation), Side 2*	- 25 °C to + 80 °C
Protection Degree / IP Rating, Side 2**	IP67
Pollution Degree, Side 2	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Clearance / Creepage Distance, Side 2	acc. to DIN EN 60664-1 (VDE 0110-1)
Overvoltage Category, Side 2	II acc. to DIN EN 60664-1 (VDE 0110-1)
Contact Base Material, Side 2	Brass (CuZn)
Contact Plating, Side 2	Gold over Copper (Cu/Au)
Contact Bearer Material, Side 2	Polyamide (Nylon), PA 6.6
Contact Bearer Color, Side 2	Black
Flammability Class (Contact Bearer), Side 2	UL 94-HB
Molded Body Material, Side 2	Thermoplastic Polyurethane (TPU)
Molded Body Color, Side 2	Black
Flammability Class (Molded Body), Side 2	UL 94-HB
Attachment Material, Side 2	Brass (CuZn)
Attachment Plating, Side 2	Nickel (Ni)
O-Ring Material, Side 2	Fluorocarbon rubber (FKM)
Note, Side 2	Do not connect / disconnect under load.

RoHS Compliant	Yes

Halogenfree	Yes
Oil Resistance	Yes

Protection Degree / IP Rating Note	IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked
Note Derating	* Notice derating
Particularities	When the connector is unlocked and in risk of pollution the connector has to be covered with a protective cap ≥ IP54.

Protection Degree / IP Rating Note	IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked
Note Derating	* Notice derating
Particularities	When the connector is unlocked and in risk of pollution the connector has to be covered with a protective cap ≥ IP54.
