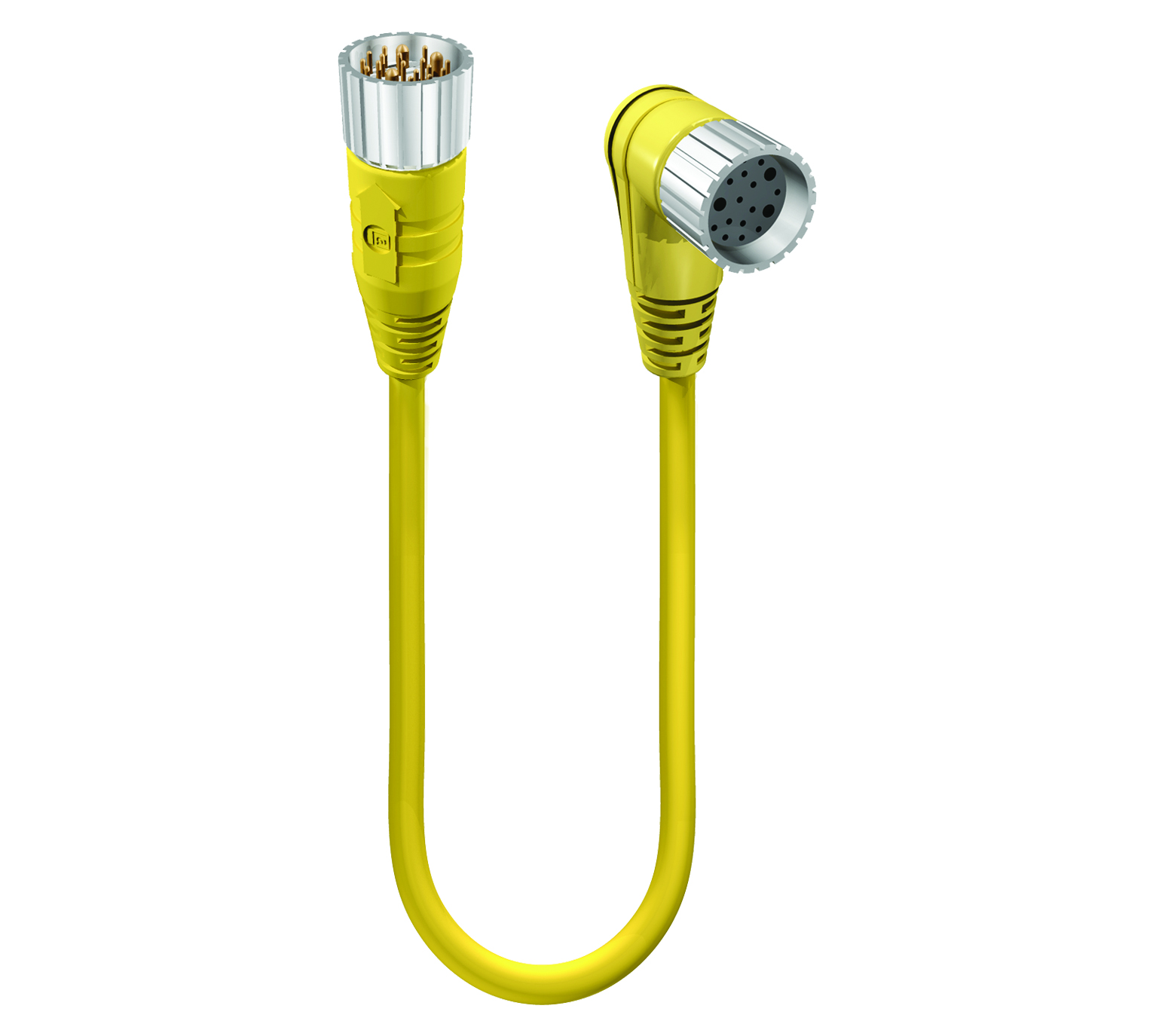

Power Connectors - RSU 19-RKWU 19-S4740

Specifications

Pin 1	Pin 2	Pin 3	Pin 4	Pin 5	Pin 6	Pin 7	Pin 8	Pin 9	Pin 10	Pin 11	Pin 12	Pin 13	Pin 14	Pin 15	Pin 16	Pin 17	Pin 18	Pin 19
violet	red	grey	red-blue	green	blue	grey-pink	white-green	white-yellow	white-grey	black	green-yellow	yellow-brown	brown-green	white	yellow	pink	grey-brown	brown

Pin 1	Pin 2	Pin 3	Pin 4	Pin 5	Pin 6	Pin 7	Pin 8	Pin 9	Pin 10	Pin 11	Pin 12	Pin 13	Pin 14	Pin 15	Pin 16	Pin 17	Pin 18	Pin 19
violet	red	grey	red-blue	green	blue	grey-pink	white-green	white-yellow	white-grey	black	green-yellow	yellow-brown	brown-green	white	yellow	pink	grey-brown	brown

Side 1 Product Sub Family	M23 Power
Side 1 Type of Contact/Gender	Pin Contact / Male
Connector Design	M23 \| Male \|19 Pole \| 0°
Attachment Type	Coupling Nut
Number of Pins	19
Insulation Resistance	˃ 10^9 Ohm
Mating Cycles	≤ 100
Cross Section	16x0.5mm² + 3x1.0 mm²
Ambient Temperature (Operation)*	- 25 °C to + 80 °C
Protection Degree / IP Rating**	IP67
Side 1 Pollution Degree	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Clearance / Creepage Distance	acc. to DIN EN 60664-1 (VDE 0110-1)
Overvoltage Category	II acc. to DIN EN 60664-1 (VDE 0110-1)
Contact Base Material	Brass (CuZn)
Side 1 Contact Plating	Gold over Copper (Cu/Au)
Contact Bearer Material	Polybutylene terephthalate (PBT)
Contact Bearer Color	White
Flammability Class (Contact Bearer)	UL 94 V0
Molded Body Material	Thermoplastic Polyurethane (TPU)
Molded Body Color	Yellow
Flammability Class (Molded Body)	UL 94-HB
Attachment Material	Brass (CuZn)
Attachment Plating	Nickel (Ni)
O-Ring Material	Nitrile Butadiene Rubber (NBR)
Note	Do not connect / disconnect under load.

Cable Number	S4740
Conductor Size	16x0.5mm² + 3x1.0 mm²
Number of Wires	19
Minimal Bending Radius (Fixed Inst)	˃ 5 x D
Minimal Bending Radius (Flexible Inst)	˃ 10 x D
Cycles (Bending)	˃ 5 M
Conductor Material	Cu
Cable Jacket Material	Thermoplastic elastomers (TPE)
Cable Jacket Color	Yellow
Cable Diameter D	Ø 11.60
Wire Insulation Material	Polypropylene (PP)
Insulated Wire Diameter	16 x Ø 1.45 mm [0.057"] + 3 x Ø 1.95 mm [0.077"]
Ambient Temperature (Fixed Installation)	- 25 °C to + 80 °C
Ambient Temperature (Flex Installation)	- 5 °C to + 80 °C
UL Cable Type	UL13 PLTC 75C and AWM-Style 20841 80C
Flammability Class (Cable Jacket)	Vertical tray test UL 1685
Cable Characteristics	Flexibility: Excellent \| Abrasion Resistance: Good \| Oil & Chemical Resistance: Excellent \| UV Resistance: Good \| Low Temp Performance: Good (flexible to -40°C) \| Flame Retardance: Fair to Good \| Halogen-Free: Yes \| Mechanical Durability: Good (resists impact, tear, and flex) \|Drag Chain: Yes \| Environmental Suitability: Outdoor, oily, wet, or rough environments

Side 2 Product Sub Family	M23 Power
Side 2 Type of Contact/Gender	Socket Contact / Female
Connector Design, Side 2	M23 \| Female \|19 Pole \| 90°
Attachment Type, Side 2	Coupling Nut
Number of Pins, Side 2	19
Insulation Resistance, Side 2	˃ 10^9 Ohm
Mating Cycles, Side 2	≤ 100
Conductor Cross Section, Side 2	16x0.5mm² + 3x1.0 mm²
Ambient Temperature (Operation), Side 2*	- 25 °C to + 80 °C
Protection Degree / IP Rating, Side 2**	IP67
Pollution Degree, Side 2	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Clearance / Creepage Distance, Side 2	acc. to DIN EN 60664-1 (VDE 0110-1)
Overvoltage Category, Side 2	II acc. to DIN EN 60664-1 (VDE 0110-1)
Contact Base Material, Side 2	Brass (CuZn)
Contact Plating, Side 2	Gold over Copper (Cu/Au)
Contact Bearer Material, Side 2	Polyamide (Nylon), PA 6.6
Contact Bearer Color, Side 2	Black
Flammability Class (Contact Bearer), Side 2	UL 94-HB
Molded Body Material, Side 2	Thermoplastic Polyurethane (TPU)
Molded Body Color, Side 2	Yellow
Flammability Class (Molded Body), Side 2	UL 94-HB
Attachment Material, Side 2	Brass (CuZn)
Attachment Plating, Side 2	Nickel (Ni)
O-Ring Material, Side 2	Fluorocarbon rubber (FKM)
Note, Side 2	Do not connect / disconnect under load.

RoHS Compliant	Yes

Halogenfree	Yes
Oil Resistance	Yes

Protection Degree / IP Rating Note	IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked
Note Derating	* Notice derating
Particularities	When the connector is unlocked and in risk of pollution the connector has to be covered with a protective cap ≥ IP54.

Protection Degree / IP Rating Note	IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked
Note Derating	* Notice derating
Particularities	When the connector is unlocked and in risk of pollution the connector has to be covered with a protective cap ≥ IP54.
