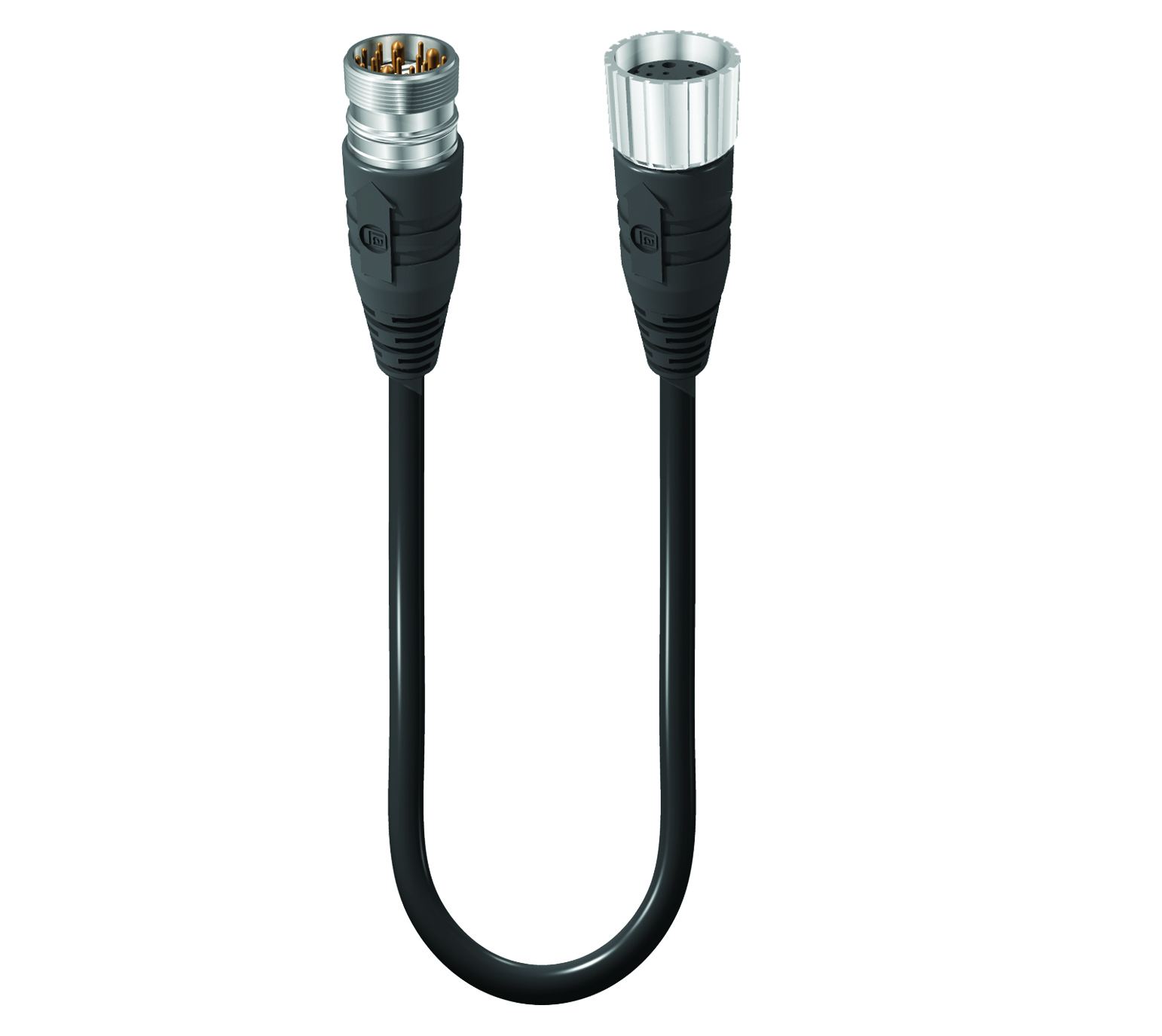

Power Connectors - RSUF 12-RKWU 12-S4741

Specifications

Pin 1	Pin 2	Pin 3	Pin 4	Pin 5	Pin 6	Pin 7	Pin 8	Pin 9	Pin 10	Pin 11	Pin 12
white	green	yellow	grey	grey-pink	red-blue	white-green	brown-green	blue	blue (bridge to pin 9)	brown	green-yellow

Pin 1	Pin 2	Pin 3	Pin 4	Pin 5	Pin 6	Pin 7	Pin 8	Pin 9	Pin 10	Pin 11	Pin 12
white	green	yellow	grey	grey-pink	red-blue	white-green	brown-green	blue	blue (bridge to pin 9)	brown	green-yellow

Side 1 Product Sub Family	M23 Power
Side 1 Type of Contact/Gender	Pin Contact / Male
Connector Design	M23 \| Male \|12 Pole \| 0° \| Fixed Thread
Attachment Type	Male Thread (coupling screw)
Number of Pins	12
Insulation Resistance	˃ 10^9 Ohm
Mating Cycles	≤ 100
Cross Section	8x0.5mm² + 3x1.0 mm²
Ambient Temperature (Operation)*	- 25 °C to + 80 °C
Protection Degree / IP Rating**	IP67
Pollution Degree	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Clearance / Creepage Distance	acc. to DIN EN 60664-1 (VDE 0110-1)
Overvoltage Category	II acc. to DIN EN 60664-1 (VDE 0110-1)
Contact Base Material	Brass (CuZn)
Side 1 Contact Plating	Gold over Copper (Cu/Au)
Contact Bearer Material	Polybutylene terephthalate (PBT)
Contact Bearer Color	White
Flammability Class (Contact Bearer)	UL 94 V0
Molded Body Material	Thermoplastic Polyurethane (TPU)
Molded Body Color	Yellow
Flammability Class (Molded Body)	UL 94-HB
Attachment Material	Brass (CuZn)
Attachment Plating	Nickel (Ni)
O-Ring Material	Fluorocarbon rubber (FKM)
Gasket Material	Fluorocarbon rubber (FKM)
Note	Do not connect / disconnect under load.

Cable Number	S4741
Conductor Size	8x0.5mm² + 3x1.0 mm²
Number of Wires	11
Minimal Bending Radius (Fixed Inst)	˃ 5 x D
Minimal Bending Radius (Flexible Inst)	˃ 10 x D
Cycles (Bending)	˃ 2 M
Conductor Material	Cu
Cable Jacket Material	Thermoplastic elastomers (TPE)
Cable Jacket Color	Yellow
Cable Diameter D	Ø 10.00 [0.39]"
Wire Insulation Material	Polypropylene (PP)
Insulated Wire Diameter	8 x Ø 1.45 mm [0.057"] + 3 x Ø 1.95 mm [0.077"]
Ambient Temperature (Fixed Installation)	- 25 °C to + 80 °C (PLTC 75 °C)
Ambient Temperature (Flex Installation)	- 25 °C to + 80 °C
Ambient Temperature (Drag Chain Inst)	- 25 °C to + 60 °C
UL Cable Type	PLTC
Flammability Class (Cable Jacket)	DIN EN 60332-1-2, VDE 0482-332-2-2, IEC 60332-1-2, UL 1685 vertical tray
Cable Characteristics	Flexibility: Excellent \| Abrasion Resistance: Excellent \| Oil & Chemical Resistance: Excellent \| UV Resistance: Excellent \| Low Temp Performance: Excellent (flexible to -40°C) \| Flame Retardance: Good \| Halogen-Free: Yes \| Mechanical Durability: Excellent (resists impact, tear, and flex) \|Drag Chain \| Environmental Suitability: Outdoor, oily, wet, or rough environments

Side 2 Product Sub Family	M23 Power
Side 2 Type of Contact/Gender	Socket Contact / Female
Connector Design, Side 2	M23 \| Female \|12 Pole \| 0°
Attachment Type, Side 2	Female Thread (coupling nut)
Number of Pins, Side 2	12
Insulation Resistance, Side 2	˃ 10^9 Ohm
Mating Cycles, Side 2	≤ 100
Conductor Cross Section, Side 2	8x0.5mm² + 3x1.0 mm²
Ambient Temperature (Operation), Side 2*	- 25 °C to + 80 °C
Protection Degree / IP Rating, Side 2**	IP67
Pollution Degree, Side 2	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Clearance / Creepage Distance, Side 2	acc. to DIN EN 60664-1 (VDE 0110-1)
Overvoltage Category, Side 2	II acc. to DIN EN 60664-1 (VDE 0110-1)
Contact Base Material, Side 2	Brass (CuZn)
Contact Plating, Side 2	Gold over Copper (Cu/Au)
Contact Bearer Material, Side 2	Polyamide (Nylon), PA 6.6
Contact Bearer Color, Side 2	Black
Flammability Class (Contact Bearer), Side 2	UL 94-HB
Molded Body Material, Side 2	Thermoplastic Polyurethane (TPU)
Molded Body Color, Side 2	Yellow
Flammability Class (Molded Body), Side 2	UL 94-HB
Attachment Material, Side 2	Brass (CuZn)
Attachment Plating, Side 2	Nickel (Ni)
O-Ring Material, Side 2	Fluorocarbon rubber (FKM)
Note, Side 2	Do not connect / disconnect under load.

RoHS Compliant	Yes

Halogenfree	No
Oil Resistance	Yes

Protection Degree / IP Rating Note	IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked
Note Derating	* Notice derating
Particularities	When the connector is unlocked and in risk of pollution the connector has to be covered with a protective cap ≥ IP54.

Protection Degree / IP Rating Note	IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked
Note Derating	* Notice derating
Particularities	When the connector is unlocked and in risk of pollution the connector has to be covered with a protective cap ≥ IP54.
