Product Number: RSW 401-839

7/8 - Male 90° | #Contacts: 4 | 600 V | Cable TPE YE, 16 AWG, US | cURus"

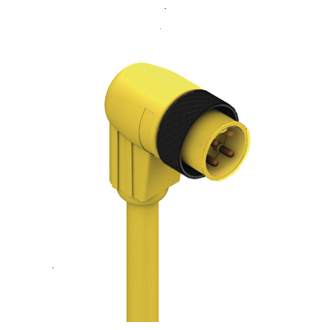

7/8 Molded Cordset Male Angled | #Contacts: 4 | 600 V / 10 A | Cable TPE Yellow, 4x16 AWG, US | cURus 2238"

  • Availability:
    Global
  • Status:
    Active
RSW 401-839
5 of 5
  • Where to buy

Specifications

Expand All

Product Family

Power Connector

Side 1 Product Sub Family

MINI 7/8"

Connector Type

Cordset, single ended

Side 1 Type of Contact/Gender

Pin Contact / Male

Connector Design

Molded | 7/8" Male | Angled

Number of Pins

4 (3+PE)

Coding, Side 1

A

Shielding Type

Unshielded

Attachment Type

Female Thread, Coupling Nut

Voltage Rating

600 V

Current Rating

10 A

Rated Current (UL)*

10

Side 1 Contact Resistance

≤ 10 mOhm

Insulation Resistance

˃ 10^9 Ohm

Mating Cycles

≤ 100

Ambient Temperature (Operation)*

-40°C to +90°C

Protection Degree / IP Rating**

IP65, IP67, NEMA 6P

Side 1 Pollution Degree

3 acc. to DIN EN 60664-1 (VDE 0110-1)

Contact Base Material

Copper Alloy (CuZn)

Side 1 Contact Plating

Copper-Silver-Gold-Alloy (Cu/Ag/Au)

Contact Bearer Material

Thermoplastic polyurethane (TPU)

Contact Bearer Color

Yellow

Molded Body Material

Thermoplastic polyurethane (TPU)

Molded Body Color

Yellow

Attachment Material

Aluminum (Al)

Attachment Plating

Anodized Black

Fastening Torque (Attachment)

MINI: 70 Ncm, hand-tight

Cable Number

839

Conductor Size

16 AWG

Number of Wires

4

Minimal Bending Radius (Fixed Inst)

˃ 5 x D

Minimal Bending Radius (Flexible Inst)

˃ 10 x D

Cycles (Bending)

˃ 5 mio

Conductor Material

Cu

Cable Jacket Material

Thermoplastic Elastomers (TPE)

Cable Jacket Color

Yellow

Cable Diameter D

Ø 8.70 mm | 0.342"

Wire Insulation Material

Polyvinyl Chloride (PVC)

Insulated Wire Diameter

Ø 2.56 mm | 0.101"

Overall Shield (Cable)

Unshielded

Ambient Temperature (Fixed Installation)

-30 °C to +90°C

Ambient Temperature (Flex Installation)

+ 5 °C to +90 °C

Ambient Temperature (Fixed Installation short-term 100h)

-30 °C to +90°C

Ambient Temperature (Drag Chain Inst)

+ 5 °C to +90 °C

UL Cable Type

UL: NEC Type TC-ER (UL 1277)

Flammability Class (Cable Jacket)

UL 1685, CSA FT4, IEEC 1202

Cable Characteristics

See downloads tab for details

UL-File

E104696

UL

UL 2238; cURus

RoHS Compliant

Yes

Halogenfree

No

Oil Resistance

Oil Res II

Note Derating

* Notice derating

Protection Degree / IP Rating Note

IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked

Note Derating

* Notice derating

Protection Degree / IP Rating Note

IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked


Report An Error

Part Numbers

Item # Item Description Cable Length
500003715 RSW 401-839/3M 3 m
