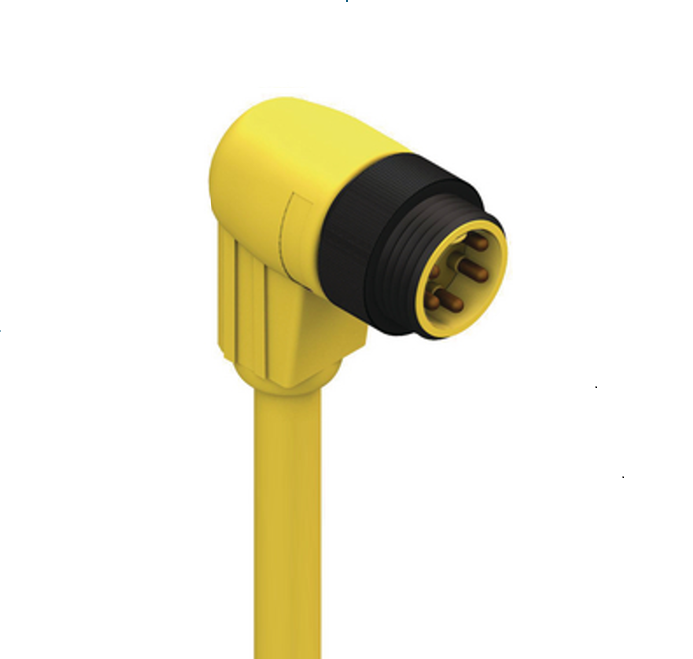

Product Number: RSW 50-877

7/8" - Male 90° | #Contacts: 5 | 600 V | Cable TPE YE, 16 AWG, US | cURus

7/8" Molded Cordset Male Angled | #Contacts: 5 | 600 V / 8 A | Cable TPE Yellow, 5x16 AWG, US | cURus 2238

  • Availability:
    Global
  • Status:
    Active
RSW 50-877
  • RSW 50-877
1 of 1
  • Where to buy

Specifications

Expand All

Product Family

Power Connector

Side 1 Product Sub Family

7/8" (2, 3, 4, 5, 6 contacts)

Connector Type

Cordset, single ended

Side 1 Type of Contact/Gender

Pin Contact / Male

Connector Design

Angled (90°) Body w/ External Thread Coupling Screw

Number of Pins

5

Coding, Side 1

A

Shielding Type

Unshielded

Attachment Type

Round Coupling Screw

Voltage Rating

600 V

Current Rating

8 A

Ambient Temperature (Operation)*

- 40 °C to + 90°C

Protection Degree / IP Rating**

IP65, IP67, NEMA 6P

Contact Base Material

Brass (CuZn)

Side 1 Contact Plating

Gold over Silver (Au / Ag)

Contact Bearer Material

Thermoplastic polyurethane (TPU)

Contact Bearer Color

Yellow

Molded Body Material

Thermoplastic polyurethane (TPU)

Molded Body Color

Yellow

Attachment Material

Aluminum (Al), Anodized Black

Cable Number

877

Conductor Size

16 AWG (65/34)

Number of Wires

5

Minimal Bending Radius (Flexible Inst)

˃ 10 x D

Conductor Material

Cu

Cable Jacket Material

TPE

Cable Jacket Color

Yellow

Cable Diameter D

Ø 9.4 mm

Wire Insulation Material

PVC-Nylon

Insulated Wire Diameter

Ø 2.5 mm

Ambient Temperature (Fixed Installation)

-30 °C to +90°C

UL Cable Type

TC-ER (90°C Dry / 75°C Wet) 600 V

Flammability Class (Cable Jacket)

FT4 / IEEC 1202

Cable Characteristics

See downloads tab for details

UL-File

E104696

UL

UL recognized

RoHS Compliant

Yes

Note Derating

* Notice derating

Protection Degree / IP Rating Note

** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.

Note Derating

* Notice derating

Protection Degree / IP Rating Note

** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.


Report An Error

Part Numbers

Item # Item Description Cable Length
500004508 RSW 50-877/2M 2 m
500004509 RSW 50-877/3M 3 m
500004510 RSW 50-877/4M 4 m
