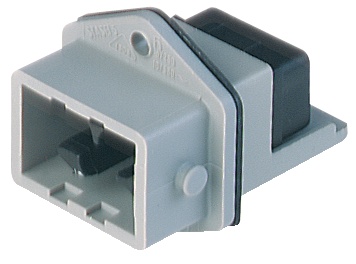

Power Connectors - STASEI 5 V0

Rectangular Receptacle Power Connector (ST Series): Male, front mount with flange, 5-pin+PE, grey housing, 400 V AC / 230 V DC, 10 A AC/6 A DC

Specifications

Product Family	Power Connector
Side 1 Product Sub Family	ST-Series
Connector Type	Receptacle
Side 1 Type of Contact/Gender	male
Connector Design	Front Mount with flange
Number of Pins	5+PE
Shielding Type	Unshielded
Attachment Type	safety bracket
Voltage Rating	400 V AC / 250 V DC
Rated Impulse Voltage	2.5 kV
Operating Voltage	400 V AC / 230 V DC
Current Rating	10 A AC / 6 A DC
Side 1 Contact Resistance	≤ 10 mOhm
Mating Cycles	max. 50
Type of Connection	crimp
Cross Section	0.25 mm² to 1.00 mm²
Ambient Temperature (Operation)*	-30°C to +90°C, notice Derating
Protection Degree / IP Rating**	IP54
Side 1 Design Standard	DIN EN 61984 (VDE 0627), IEC 60335
Side 1 Pollution Degree	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Clearance / Creepage Distance	DIN EN 60664-1 (2008/01); VDE 0110-1

Contact Base Material	CuZn
Side 1 Contact Plating	Cu/Ag
Contact Bearer Material	PA GF
Contact Bearer Color	black
Flammability Class (Contact Bearer)	UL 94 V-0; GWFI 850°C; GWIT 775°C
Housing Material	PA GF
Housing Color	grey
Flammability Class (Housing)	UL 94 V-0; GWFI 850°C; GWIT 775°C
Gasket Material	NBR

Fastening torque (mounting screw)	M 3: (50-60) Ncm, flange
Mount Type	Screw: M3 (2x)
Accessories to Order Separately	STASI 3, 732-045-…, safety bracket

VDE	VDE 61984
SEV	SEV

Note Derating	* Notice derating
Protection Degree / IP Rating Note	** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
Note	Do not connect or disconnect under load.
Particularities	* flame retardant of the plastic materials according to DIN EN 60335-1: GWFI 850 °C; GWIT 775 °C

Note Derating	* Notice derating
Protection Degree / IP Rating Note	** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
Note	Do not connect or disconnect under load.
Particularities	* flame retardant of the plastic materials according to DIN EN 60335-1: GWFI 850 °C; GWIT 775 °C
