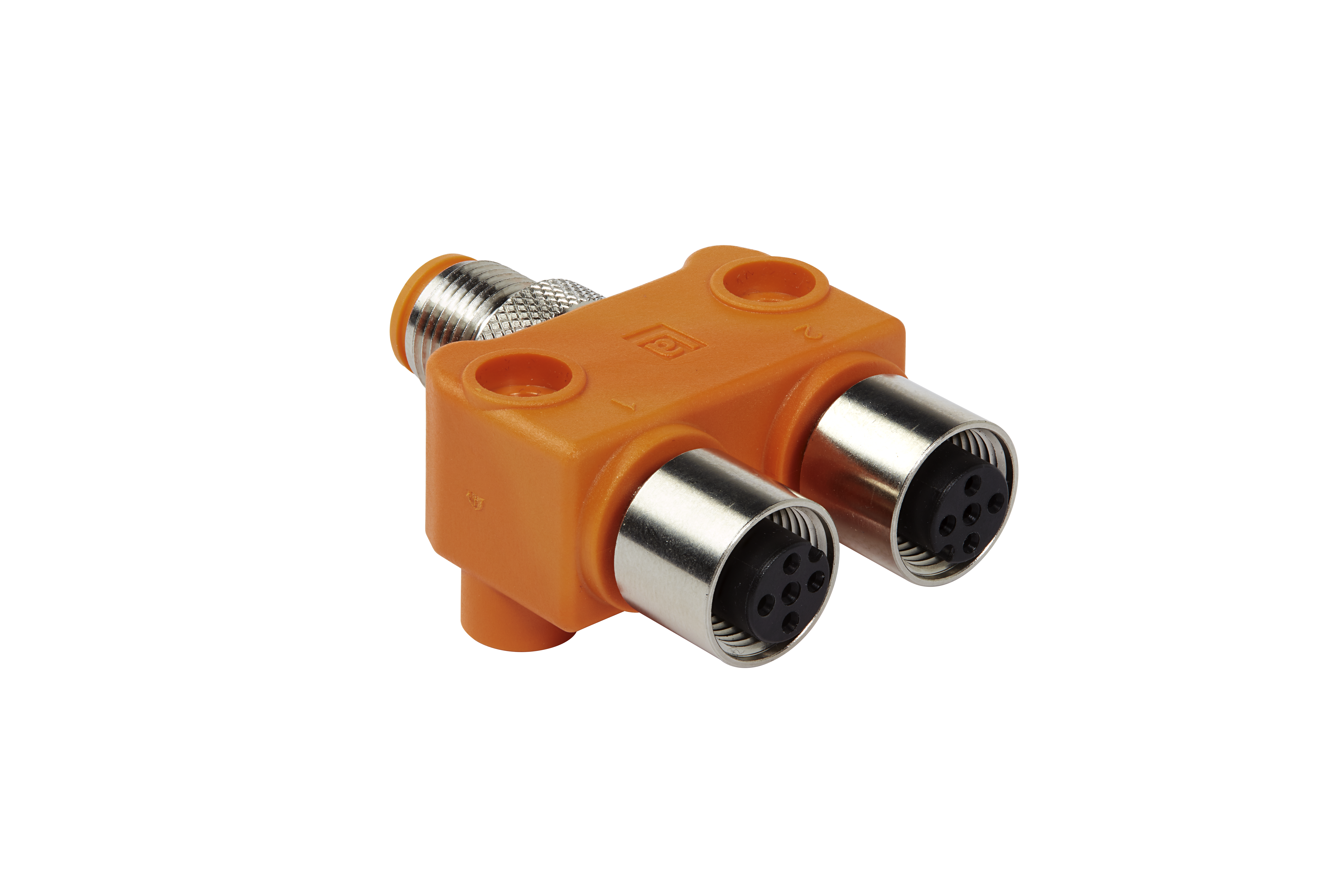

Product Number: ASBS 2 M12-5S 1-2 F
T-Splitter Sensor/Actuator M12 to M12, IP67, PUR orange body, 5-pin M12 Male to 4-pin M12 female straight connection, 50 V AC / 60 V DC, UL: 30 V AC/DC, 4 A
T-Splitter Sensor/Actuator M12 to M12, IP67, PUR orange body, 5-pin M12 Male to 4-pin M12 female straight connection, fixed curled nuts to relief installation effort, 2 x M4 mounting holes with distance pins to mounting plate, 50 V AC / 60 V DC, UL: 30 V AC/DC, 4 A
-
Availability:
Global
-
Global inventory:
Available
Specifications
Face View Side 1
|
Product Family |
Sensor / Actuator Connectors |
|---|---|
|
Connector Type |
T-Splitter |
|
Rated Voltage |
50 V AC / 60 V DC |
|
Rated Voltage (UL) |
30 V AC/DC |
|
Rated Impulse Voltage |
1,5 kV |
|
Rated Current* |
4 A |
Technical Data Side 1
|
Product Sub Family |
M12 T-Connectors |
|---|---|
|
Attachment Type |
Screw-Locking |
|
Number of Pins |
5 |
|
Contact Resistance |
≤ 5 mOhm |
|
Insulation Resistance |
˃ 10^9 Ohm |
|
Mating Cycles |
≤ 100 |
|
Ambient Temperature (Operation)* |
-25°C to +90°C (notice derating) |
|
Protection Degree / IP Rating** |
IP67 |
|
Pollution Degree |
3 acc. to DIN EN 60664-1 (VDE 0110-1) |
|
Contact Base Material |
CuZn |
|
Contact Plating |
Ni/Au |
|
Contact Bearer Material |
PUR |
|
Contact Bearer Color |
Orange (male side), Black (female side) |
|
O-Ring Material |
FKM |
Approvals
|
UL-File |
E315587 |
|---|---|
|
UL |
cULus |
Safety & Environmental Compliance
|
RoHS Compliant |
Yes |
|---|
Information
|
RoHS Compliant |
Yes |
|---|
Part Numbers
| Item # | Item Description |
|---|---|
| 33268 | ASBS 2 M12-5S 1-2 F |
