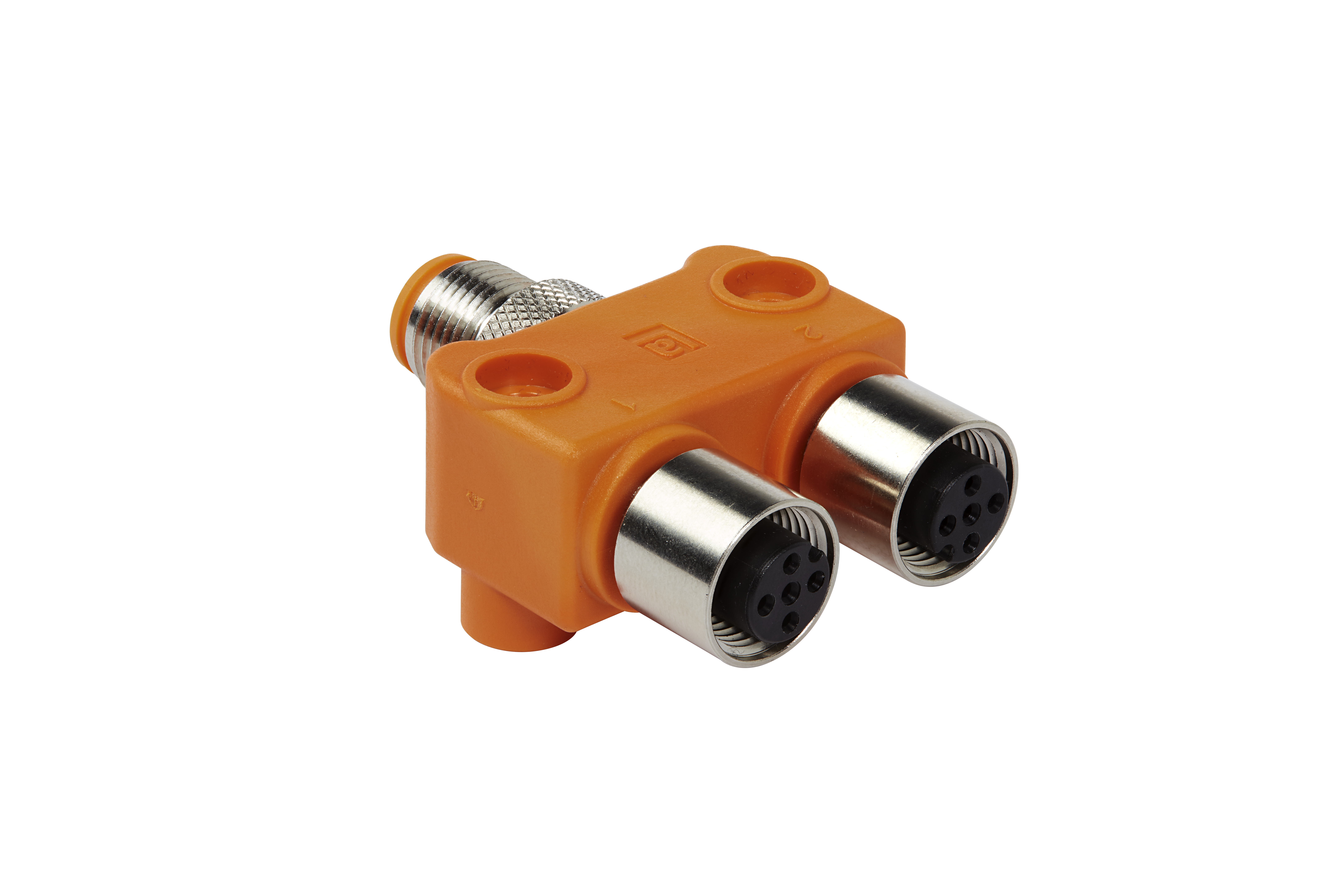

ASBS 2 M12-5S F

T-Splitter Sensor/Actuator M12 to M12, IP67, PUR orange body, 5-pin M12 Male to 4-pin M12 female straight connection, 50 V AC / 60 V DC, UL: 30 V AC/DC, 4 A

...
T-Splitter Sensor/Actuator M12 to M12, IP67, PUR orange body, 5-pin M12 Male to 4-pin M12 female straight connection, fixed curled nuts to relief installation effort, 2 x M4 mounting holes with distance pins to mounting plate, 50 V AC / 60 V DC, UL:
Get Product Alerts
Specifications

Connector Type

T-Splitter

I/O Connection

M12 A-coded Male to M12 A-coded Female

General Data

Housing material / Molded body

PUR

Housing Color

Orange

Protection Degree / IP Rating**

IP67

Ambient Temperature (Operation)*

-25°C to +90°C (notice derating)

Dimensions (W x H x D)

35 mm x 21,5 mm (16 mm wo distance pins) x 51,2 mm

Weight

35,2 g

O-Ring Material

FKM

Contact Bearer Material

PUR

Attachment Type

Screw-Locking

Contact Base Material

CuZn

Coupling screw

CuZn, nickel-plated

Coupling nut material

CuZn, nickel-plated

Rated Voltage (UL)

30 V AC/DC

Rated Current*

4 A

Approvals

UL

cURus

Safety & Environmental Compliance

RoHS Compliant

Yes

Update and Revision

Revision Number: 0.32 Revision Date: 03-11-2021
