M12-M12 Cordsets - RST 5-RKT 5-MF293

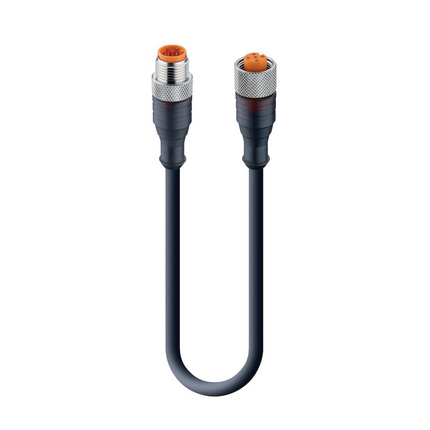

Sensor/Actuator Double-Ended Cordset: Male straight A-coded translucent 5-pin M12 Standard connector to female straight A-coded translucent 5-pin M12 Standard connector, 50 V AC / 60 V DC, 4 A; PUR black cable, 5-wires, 0.34 mm²

Availability:

Asia Pacific
Status:

Active

Quote

Specifications
Where to buy

Specifications

Expand All

Information

Face View Side 1

Pin 1	Pin 2	Pin 3	Pin 4	Pin 5
Brown	White	blue	black	Gray

Face View Side 2

Pin 1	Pin 2	Pin 3	Pin 4	Pin 5
brown	White	blue	black	Gray

Product Family	Sensor/Actuator Connectors
Connector Type	Cordset, double ended
Shielding Type	Unshielded
Voltage Rating	60 V
Rated Impulse Voltage	1.5 kV
Operating Voltage	50 V AC/ 60V DC
Current Rating	4 A

Technical Data Side 1

Side 1 Product Sub Family	M12 Standard
Side 1 Type of Contact/Gender	Male
Connector Design	Straight
Attachment Type	Coupling Screw
Number of Pins	5
Coding, Side 1	A
Contact Resistance	≤ 10 mOhm
Insulation Resistance	˃ 10^9 Ohm
Ambient Temperature (Operation)*	-25 °C - + 80 °C
Protection Degree / IP Rating**	IP67
Design Standard	IEC 61076-2-101
Contact Base Material	CuSn
Side 1 Contact Plating	Orange
Contact Bearer Material	TPU
Contact Bearer Color	Orange
Flammability Class (Contact Bearer)	UL 94 V-0
Molded Body Material	TPU
Molded Body Color	Translucent
Flammability Class (Molded Body)	UL 94 HB
Attachment Material	CuZn
Attachment Plating	Nickel-plated
Fastening Torque (Attachment)	M 12x1: (50-60) Ncm, hand-tight

Cable Data

Cable Number	MF293
Conductor Size	0.34 mm²
Number of Wires	5
Conductor Material	Cu
Cable Jacket Material	Special Compond Polyurethane based
Cable Jacket Color	Black
Cable Diameter D	5.7 ± 0.20 mm
Wire Insulation Material	PVC
Ambient Temperature (Fixed Installation)	-30 °C - + 80 °C
Flammability Class (Cable Jacket)	IEC 60332-1/FT-2

Technical Data Side 2

Side 2 Product Sub Family	M12 Standard
Side 2 Type of Contact/Gender	Female
Connector Design, Side 2	Straight
Attachment Type, Side 2	Coupling Nut
Number of Pins, Side 2	5
Coding, Side 2	A
Contact Resistance, Side 2	≤ 10 mOhm
Insulation Resistance, Side 2	˃ 10^9 Ohm
Ambient Temperature (Operation), Side 2*	-25 °C - + 80 °C
Protection Degree / IP Rating, Side 2**	IP67
Design Standard, Side 2	IEC 61076-2-101
Contact Base Material, Side 2	CuSn
Contact Plating, Side 2	Orange
Contact Bearer Material, Side 2	TPU
Contact Bearer Color, Side 2	Orange
Flammability Class (Contact Bearer), Side 2	UL 94 V-0
Molded Body Material, Side 2	TPU
Molded Body Color, Side 2	Translucent
Flammability Class (Molded Body), Side 2	UL 94 HB
Attachment Material, Side 2	CuZn
Attachment Plating, Side 2	Nickel-plated
Fastening Torque (Attachment), Side 2	M 12x1: (50-60) Ncm, hand-tight
