Product Number: RST 4-RKWT/LED R 4-1006

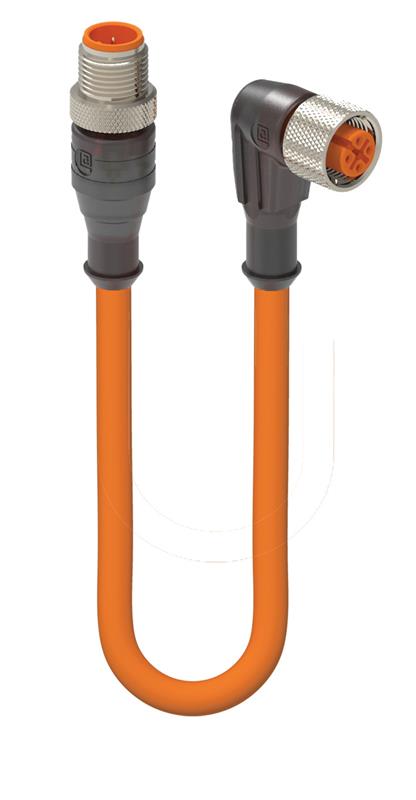

M12 to M12 cordset, Automotive Line, male to female, 4-pin, A-coded, straight to angled, PUR orange cable, unshielded, IP67
M12 to M12 cordset connector, Automotive Line, high welding spark resistance, male to female, 4-pin, A-coded, straight to angled with LED, PUR orange cable (similar to RAL 2003), unshielded, AWM 20549, rated voltage 50 V AC / 60 V DC, rated current 4A, suited for IP67 environment
-
Availability:
Global
-
Global inventory:
Available
Specifications
Belden.GenericSpecificationTitle
Face View Side 1
| Pin 1 | Pin 2 | Pin 3 | Pin 4 |
|---|---|---|---|
| brown | white | blue | black |
|
Product Family |
Sensor / Actuator Connector |
|---|---|
|
Connector Type |
Cordset, double ended |
|
Shielding |
Unshielded |
Technical Data Side 1
|
Product Sub Family |
Automotive |
|---|---|
|
Type of Contact / Gender |
Male |
|
Connector Design |
Straight |
|
Attachment Type |
Coupling Nut |
|
Number of Pins |
4 |
|
Coding |
A |
|
Insulation Resistance |
˃ 10^9 Ohm |
|
Mating Cycles |
≤ 100 |
|
Ambient Temperature (Operation)* |
- 40 °C - + 90 °C |
|
Protection Degree / IP Rating** |
IP67 |
|
Design Standard |
IEC 61076-2-101 |
|
Contact Base Material |
CuSn |
|
Contact Plating |
Cu/Au |
|
Flammability Class (Contact Bearer) |
UL 94 HB |
|
Molded Body Material |
TPU |
|
Flammability Class (Molded Body) |
UL 94 HB |
|
Attachment Material |
CuZn |
|
Fastening Torque (Attachment) |
M 12x1: (50-60) Ncm, hand-tight |
Cable Data
|
Cable Number |
1006 |
|---|---|
|
Conductor Size |
0.34 mm² |
|
Number of Wires |
4 |
|
Minimal Bending Radius (Fixed Inst) |
|
|
Minimal Bending Radius (Flexible Inst) |
|
|
Cycles (Bending) |
|
|
Welding Resistance |
Welding spark resistant |
|
Conductor material |
Cu |
|
Cable Jacket Material |
PUR |
|
Cable Jacket Color |
orange (similar to RAL 2003) |
|
Cable Diameter D |
ø 5.30 ± 0.15 mm |
|
Wire Insulation Material |
PP |
|
Insulated Wire Diameter |
ø 1.25 ±0.05 mm |
|
Ambient Temperature (Fixed Installation) |
- 50 °C - + 90 °C (UL: + 80 °C) |
|
Ambient Temperature (Flex Installation) |
- 25 °C - + 90 °C (UL: + 80 °C) |
|
Ambient Temperature (Drag Chain Inst) |
- 25 °C - + 60 °C |
|
UL Cable Type |
AWM: 20549 |
|
Flammability Class (Cable Jacket) |
DIN EN 60332-2-2, VDE 0482-332-2-2, IEC 60332-2-2, CSA FT2 |
|
Cable Characteristics |
flame retardant, halogen-free, drag chains |
Technical Data Side 2
|
Product Sub Family, Side 2 |
Automotive |
|---|---|
|
Type of Contact / Gender, Side 2 |
Female |
|
Connector Design, Side 2 |
Angled |
|
Coding, Side 2 |
A |
|
Attachment Material, Side 2 |
CuZn |
Approvals
|
UL |
cULus |
|---|
Safety & Environmental Compliance
|
RoHS Compliant |
Yes |
|---|
Resistances
|
Halogenfree |
Yes, acc. to IEC 60754-1 |
|---|
Notes
|
Note Derating |
Notice derating |
|---|
Belden.GenericSpecificationTitle
|
Note Derating |
Notice derating |
|---|
