Single Pair Ethernet (SPE) Connectors

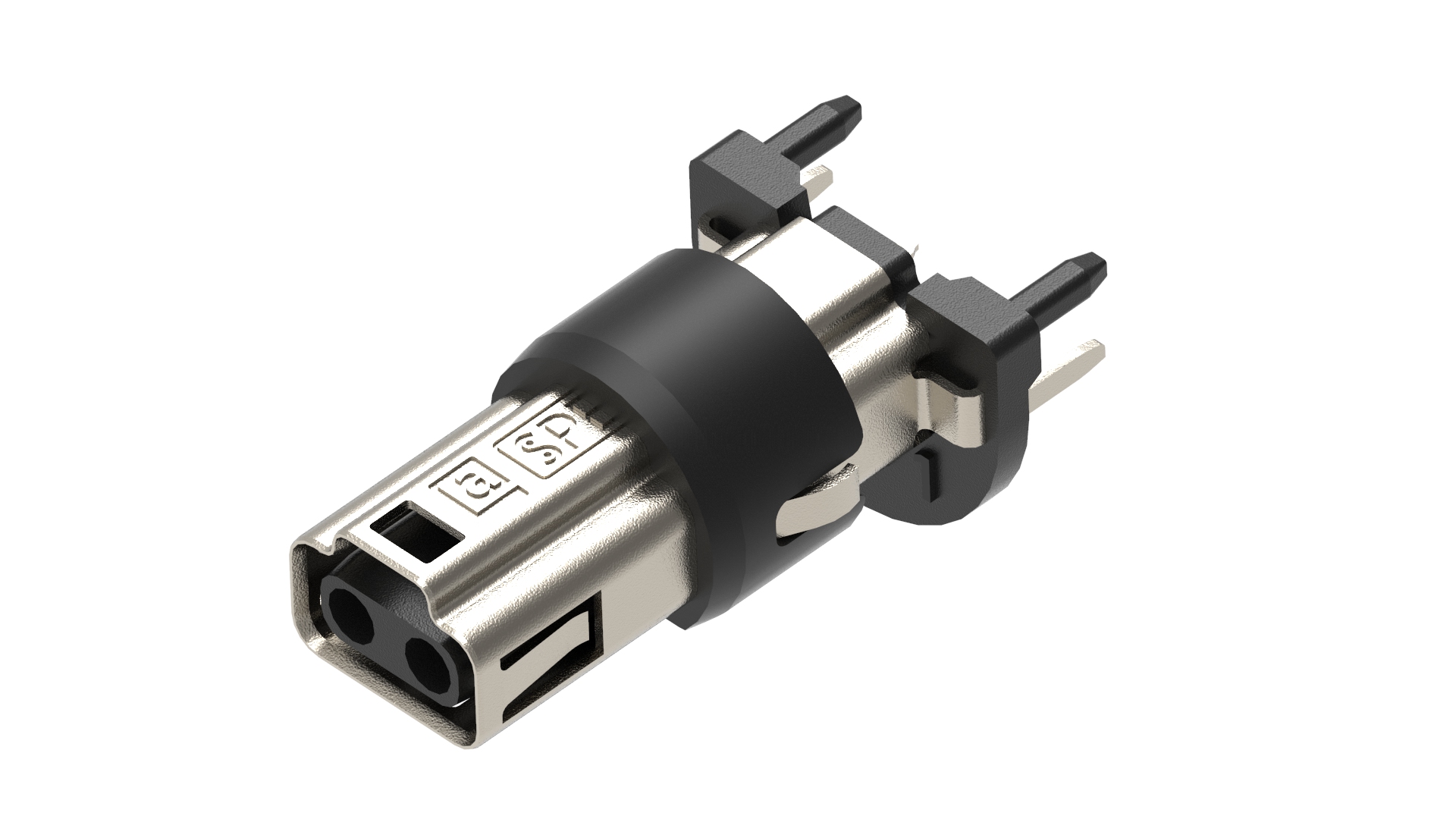

SPE M12 SPE 8 mm PCB insert, straight, soldering, in tray package

Specifications

Product Family	SPE Receptacles
Side 1 Product Sub Family	SPE Receptacle M12 Insert
Connecting Side	Soldering
Side 1 Type of Contact/Gender	Female
Connector Design	Straight
Number of Pins	2
Shielding Type	Shielded
Voltage Rating	60 V
Operating Voltage	< < 50 V AC / 60 V DC
Current Rating	4 A
Side 1 Contact Resistance	≤ 20 mOhm
Shielding Resistance	≤ 100 mOhm
Insulation Resistance	˃ 5x10^8 Ohm
Testing Voltage Pin - Pin	1 kV DC
Testing Voltage Pin - Shield	2.25 kV DC
Transmission characteristics	600 MHz
Data Rate	10 Mbit/s 100 Mbit/s 1 Gbit/s 2.5 Gbit/s 5 Gbit/s 10 Gbit/s
Mating Cycles	≥ 1000
Thread Size	M12 x 1
Thread Plating	Nickel-plated
Ambient Temperature (Operation)*	- 40°C - +85°C
Protection Degree / IP Rating**	IP20
Side 1 Design Standard	IEC 63171-6, IEEE 802.3bu (remote power supply over PoDL = Power over Data Line), IEEE 802.3cg (10BASE-T1)
Side 1 Pollution Degree	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Moisture Sensitivity Level (MSL)	1 acc. ECA/IPC/JEDEC J-STD-020D
Process Sensitivity Level (PSL)	R0 acc. ECA/IPC/JEDEC J-STD-020D
