Single Pair Ethernet (SPE) Connectors

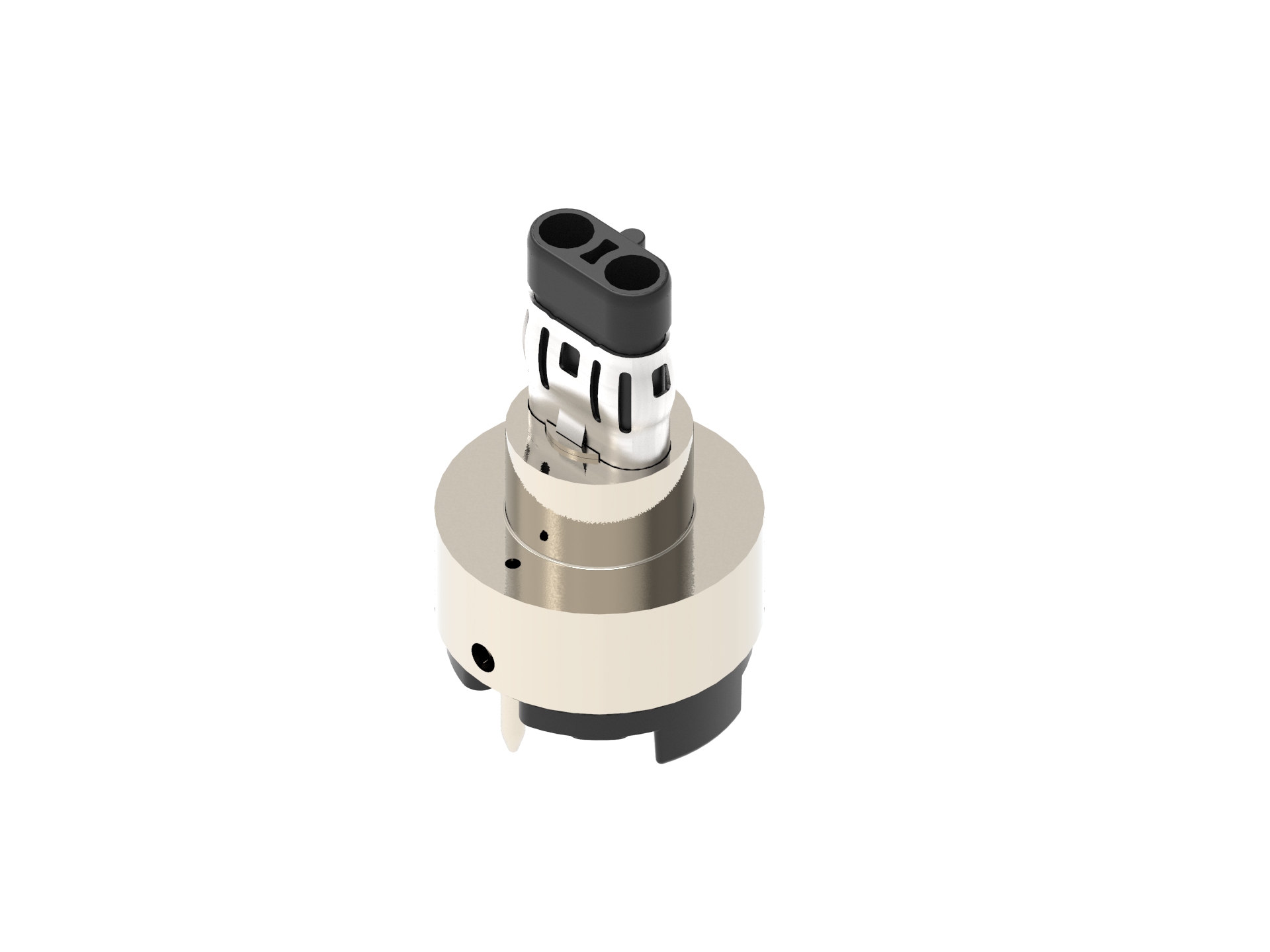

SPE M8 PCB insert, straight, 7/8/9 mm, soldering in plastic bag package

Specifications

Product Family	SPE Receptacles
Side 1 Product Sub Family	SPE Receptacle M8 Insert
Connecting Side	Soldering
Side 1 Type of Contact/Gender	Female
Connector Design	Straight
Number of Pins	2
Coding, Side 1	SPE-6J-M8
Shielding Type	Shielded
Voltage Rating	60 V
Rated Voltage (UL)	60 V AC/DC
Operating Voltage	< < 50 V AC / 60 V DC
Current Rating	4 A
Rated Current (UL)*	4 A
Side 1 Contact Resistance	≤ 10 mOhm
Insulation Resistance	˃ 5x10^8 Ohm
Testing Voltage Pin - Pin	1 kV DC
Testing Voltage Pin - Shield	2.25 kV DC
Transmission characteristics	4 GHz
Data Rate	10 Mbit/s 100 Mbit/s 1 Gbit/s 2.5 Gbit/s 5 Gbit/s 10 Gbit/s
Mating Cycles	≤ 100
Thread Plating	Nickel-plated
Ambient Temperature (Operation)*	- 40°C - +90°C
Operating Temperature (UL)	max. + 90 °C
Side 1 Design Standard	IEC 63171-6, IEEE 802.3bu (remote power supply over PoDL = Power over Data Line), IEEE 802.3cg (10BASE-T1)
Side 1 Pollution Degree	3 acc. to DIN EN 60664-1 (VDE 0110-1)

Contact Base Material	Cu alloy
Side 1 Contact Plating	Cu/Au
Contact Bearer Material	PA
Contact Bearer Color	Black
Flammability Class (Contact Bearer)	UL 94 V-0
O-Ring Material	FKM
