Single Pair Ethernet (SPE) Connectors - RSMGVS-8M-RSMGVS-8M-1014

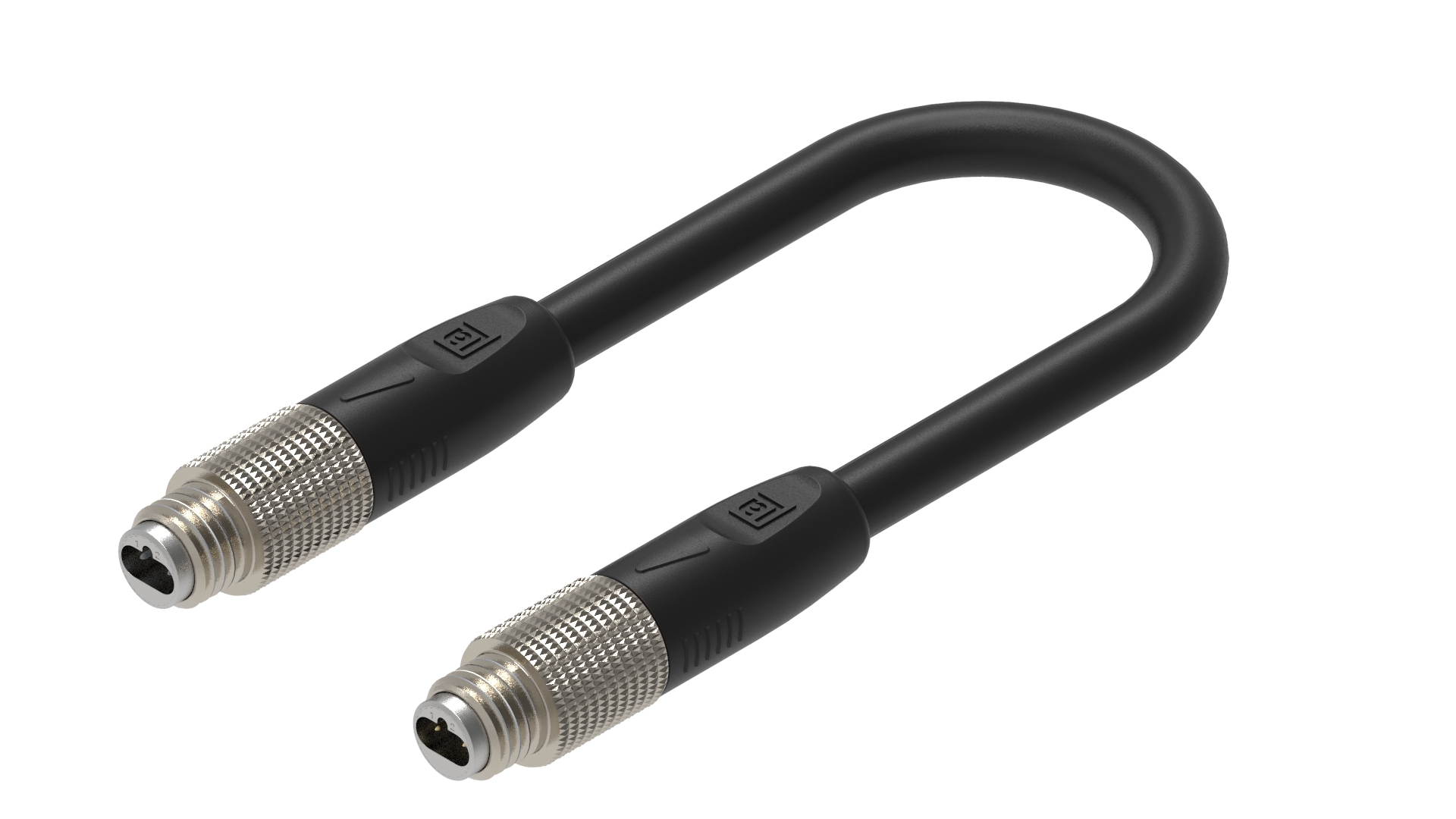

SPE double ended cordset: M8 male straight 6P-M8 Code to M8 male straight 6P-M8 Code, IP65/67, XLPE

Specifications

Pin 1	Pin 2
Blue	Natural White

Pin 1	Pin 2
Blue	Natural White

Side 1 Product Sub Family	SPE Cordset M8 (T1 Industrial)
Side 1 Type of Contact/Gender	Male
Connector Design	Straight
Attachment Type	Screw-Locking
Number of Pins	2
Side 1 Contact Resistance	≤ 10 mOhm
Insulation Resistance	˃ 5x10^8 Ohm
Mating Cycles	≤ 100
Ambient Temperature (Operation)*	- 40 °C - + 90 °C (Cable +80 °C)
Operating Temperature (UL)	max. + 80 °C
Protection Degree / IP Rating**	IP65, IP67
Side 1 Design Standard	IEC 63171-6
Side 1 Pollution Degree	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Clearance / Creepage Distance	DIN EN 60664-1 (2008/01); VDE 0110-1
Contact Base Material	CuSn
Side 1 Contact Plating	Cu/Au
Contact Bearer Material	PA
Contact Bearer Color	Black
Flammability Class (Contact Bearer)	UL 94 V-0
Molded Body Material	TPU
Molded Body Color	Black
Flammability Class (Molded Body)	UL 94 V-0
Attachment Material	CuZn
Attachment Plating	Nickel-plated
Fastening Torque (Attachment)	M 8x1: 40 Ncm, hand-tight

Cable Number	1014
Number of Wires	2
Conductor Material	Cu
Cable Jacket Material	XLPE
Cable Jacket Color	black
Cable Diameter D	ø 4.80 ± 0.20 mm
Wire Insulation Material	PP
Insulated Wire Diameter	ø 1,65 ±0.1 mm
Overall Shield (Cable)	Tinned copper
Foil shield	Al-myler wrapping foil
Ambient Temperature (Fixed Installation)	- 40 °C - +80 °C
UL Cable Type	AWM: 22303
Flammability Class (Cable Jacket)	FT-2
Cable Characteristics	Exclusion of dangerous materials

Side 2 Product Sub Family	SPE M8 Cordset
Side 2 Type of Contact/Gender	Male
Connector Design, Side 2	Straight
Attachment Type, Side 2	Screw-Locking
Contact Resistance, Side 2	≤ 10 mOhm
Insulation Resistance, Side 2	˃ 5x10^8 Ohm
Mating Cycles, Side 2	≤ 100
Ambient Temperature (Operation), Side 2*	- 40 °C - + 90 °C (Cable +80 °C)
Protection Degree / IP Rating, Side 2**	IP65, IP67
Design Standard, Side 2	IEC 63171-6
Pollution Degree, Side 2	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Overvoltage Category, Side 2	PA
Contact Plating, Side 2	Cu/Au
Contact Bearer Material, Side 2	TPU
Contact Bearer Color, Side 2	Black
Flammability Class (Contact Bearer), Side 2	UL 94 V-0
Molded Body Material, Side 2	UL 94 V-0
Molded Body Color, Side 2	Black
Attachment Material, Side 2	CuZn
Attachment Plating, Side 2	Nickel-plated
Fastening Torque (Attachment), Side 2	M 8x1: 40 Ncm, hand-tight

UL	UL 2238; cULus

RoHS Compliant	Yes

Note Derating	Notice derating

Update and Revision	Revision Number: 0.34 Revision Date: 02-03-2025

Update and Revision	Revision Number: 0.34 Revision Date: 02-03-2025
