Single Pair Ethernet (SPE) Connectors

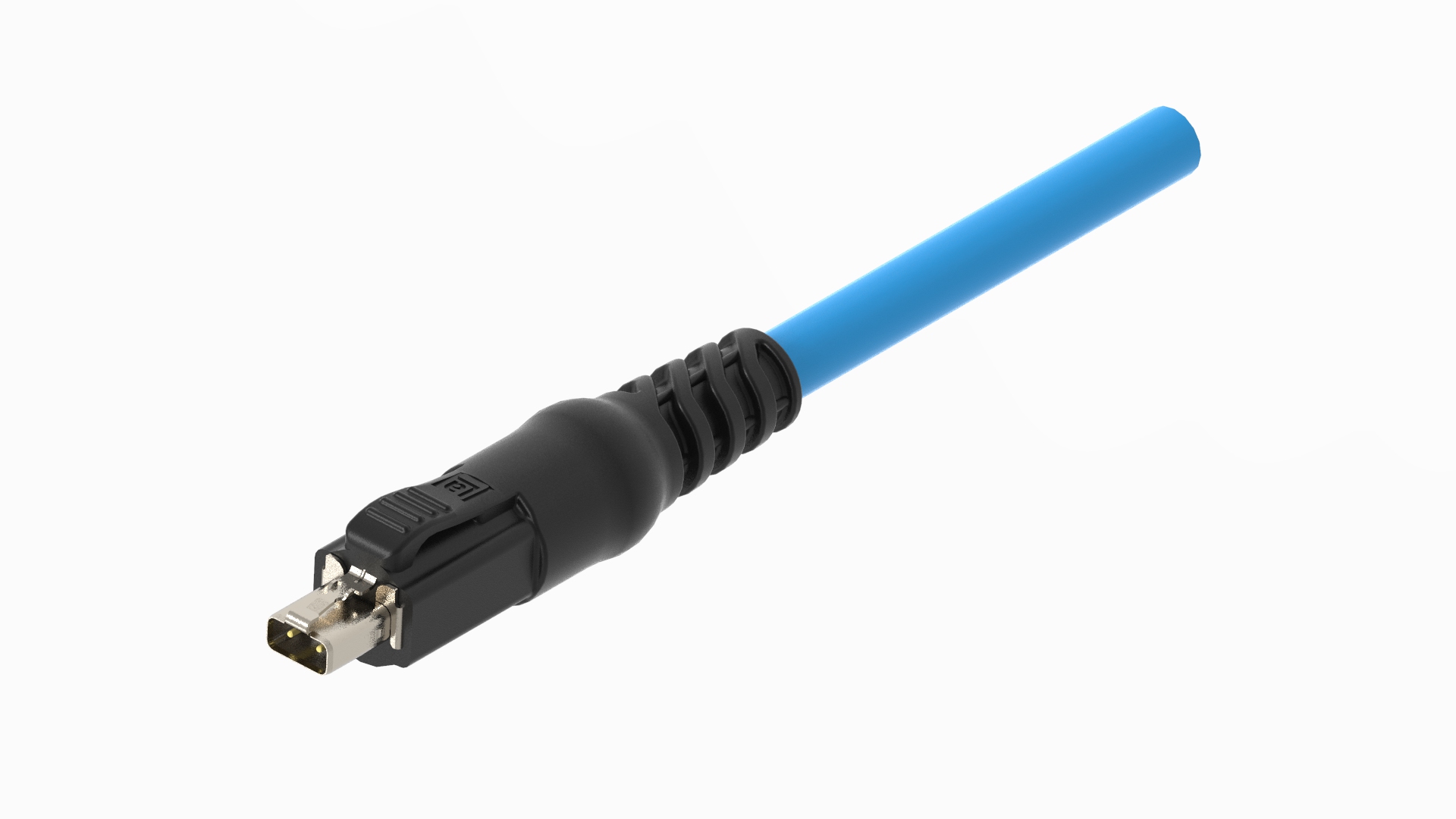

SPE single ended cordset: T1 Industrial male straight 6P-LL Code, IP20, PUR

Specifications

Pin 1	Pin 2
Blue	Natural White

Side 1 Product Sub Family	SPE Cordset T1 Industrial
Side 1 Type of Contact/Gender	Male
Connector Design	Straight
Attachment Type	Latch-Locking
Number of Pins	2
Contact Resistance	≤ 10 mOhm
Insulation Resistance	˃ 5x10^8 Ohm
Mating Cycles	≤ 100
Ambient Temperature (Operation)*	- 40 °C - + 90 °C (Cable +80 °C)
Protection Degree / IP Rating**	IP20
Design Standard	IEC 63171-6
Pollution Degree	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Clearance / Creepage Distance	DIN EN 60664-1 (2008/01); VDE 0110-1
Contact Base Material	CuSn
Side 1 Contact Plating	Cu/Au
Contact Bearer Material	PA
Contact Bearer Color	Black
Molded Body Material	TPU
Molded Body Color	Black
Attachment Material	CuZn
Attachment Plating	Nickel-plated

Cable Number	998
Number of Wires	2
Conductor Material	Cu
Cable Jacket Material	PUR
Cable Jacket Color	blue
Cable Diameter D	ø 5.50 ± 0.20 mm
Wire Insulation Material	PE
Insulated Wire Diameter	ø 1,9 ±0.1 mm
Overall Shield (Cable)	Tinned copper
Foil shield	Al-myler wrapping foil
Ambient Temperature (Fixed Installation)	- 40 °C - +80 °C
UL Cable Type	AWM: 20549
Flammability Class (Cable Jacket)	FT-2
Cable Characteristics	Exclusion of dangerous materials
