Product Sub Family

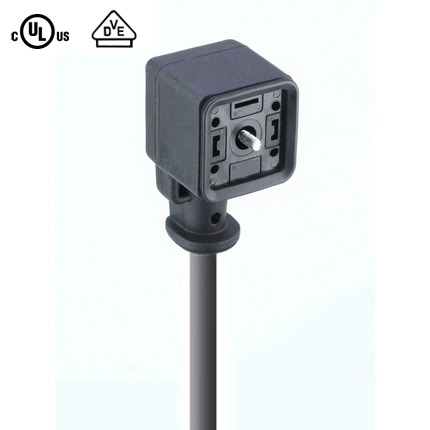

GAN with cULus approval
Cordset, single ended
Type of Contact / Gender
Number of Pins
2+PE (PE across cable outlet)
Rated Voltage (UL)
Rated Voltage (CSA)
Rated Impulse Voltage
230 V AC/DC
Rated Current (UL)*
Rated Current (CSA)*
≤ 10 mOhm
˃ 10^9 Ohm
Ambient Temperature (Operation)*
-25 °C - +85 °C (With additional 934-887-001 gasket : -40 °C - +105 °C)
Operating Temperature (UL)
max. + 85 °C
Operating Temperature (CSA)
Protection Degree / IP Rating**
IP65, IP67 (IP69K: without additional gasket; max. +80 °C)
DIN EN 175301-803-A, ISO 4400
3 acc. to DIN EN 60664-1 (VDE 0110-1)
Clearance / Creepage Distance
DIN EN 60664-1 (2008/01); VDE 0110-1
III acc. to DIN EN 60664-1 (VDE 0110-1)
Contact Base Material
Contact Bearer Material
Contact Bearer Color
Flammability Class (Contact Bearer)
UL 94 V-0
Molded Body Material
Molded Body Color
Flammability Class (Molded Body)
UL 94 HB
Steel, Philips combi slot
Molded Integrated Gasket
Fastening Torque (Attachment)
Number of Wires
Minimal Bending Radius (Fixed Inst)
˃ 5 x D
Minimal Bending Radius (Flexible Inst)
˃ 7.5 x D
Cable Jacket Material
Cable Jacket Color
Cable Diameter D
ø 5.80 ± 0.20 mm
Wire Insulation Material
Insulated Wire Diameter
ø 1.92 ± 0.05 mm
Ambient Temperature (Fixed Installation)
- 50 °C - + 90 °C (UL: + 80 °C)
Ambient Temperature (Flex Installation)
- 25 °C - + 90 °C (UL: + 80 °C)
UL Cable Type
AWM: 20549 or 21198
Flammability Class (Cable Jacket)
DIN EN 60332-1-2, VDE 0482-332-1-2, IEC 60332-1-2, CSA FT2; VDE 0472 Teil 804 Prüfart B
Good microbes and hydrolysis resistance; Mainly plasticizer diffusion free; good chemical and oil resistance; Exclusion of PVC and Silicone; free of lacquer wetting disturbing substances; Coldness flexibilty
UL 2238; cULus
IEC 60811-404 , VDE 0472; VDE 0250
Protection Degree / IP Rating Note
** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
Do not connect or disconnect under load.
